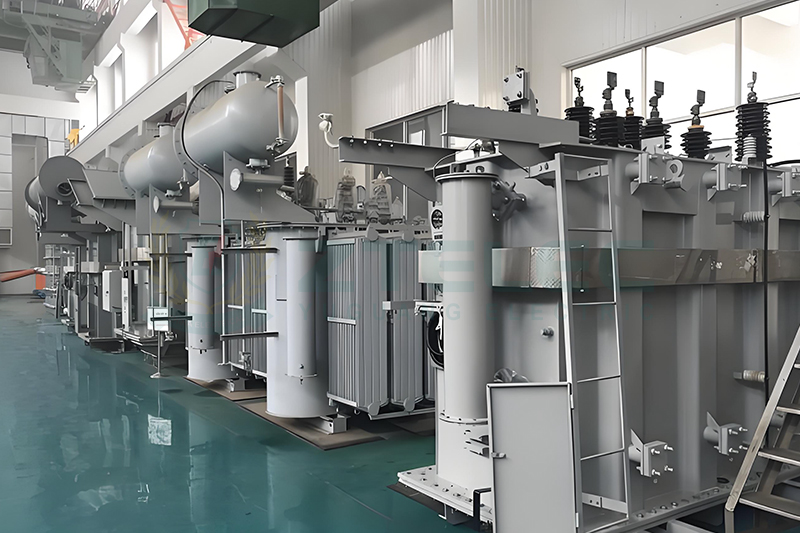

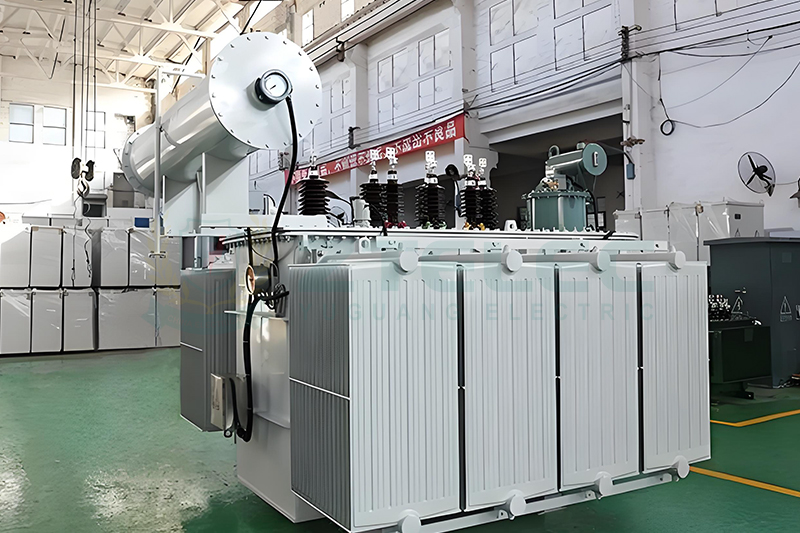

66 kV Oil-Immersed Power Transformer – 5 Must-Know Application Scenarios

66 kV oil-immersed power transformers combine proven technology, high overload capability and 25-30 year service life to deliver reliable voltage conversion across transmission, industrial, urban and renewable-energy networks. Explore the five scenarios where they add the greatest value.

1. 220 kV / 110 kV Substation Step-Down

Installed as the main transformer inside 220 kV or 110 kV substations, the unit steps transmission voltage down to 66 kV for secondary distribution. Oil-directed (ODAF) cooling sustains 100 MVA continuous load with hot-spot temperatures within IEC 60076-2 limits, guaranteeing >99.5 % availability for critical feeders.

2. Large Industrial Plants – Steel, Cement, Chemical

Metallurgical and cement factories import 66 kV to reduce line current and losses, then step down to 10 kV or 6 kV on-site. The robust oil-immersed tank absorbs motor-starting inrush and harmonic loads, cutting energy bills by up to 8 % compared with 35 kV supply. Built-in on-load tap-changer (OLTC) ±9×1.25 % stabilises voltage within ±1 % during furnace swings.

3. Urban High-Voltage Distribution Network

In dense cities, 66 kV forms the backbone ring. Oil-immersed transformers installed in indoor GIS substations feed multiple 10 kV feeders, extending supply radius to 40 km. Low-noise fans and IP54 panels keep sound <55 dB(A) at 1 m, meeting residential ordinances while 30-year design life minimises lifecycle cost.

4. Renewable Energy Grid Connection – Wind & Solar

Inside wind or solar step-up stations, the transformer boosts 35 kV collector voltage to 66 kV for interconnection. Desert-grade coolers, anti-corrosive C5-M paint and sealed conservator tanks operate from –40 °C to +50 °C, 95 % humidity. Reduced no-load losses <0.15 % raise plant ROI by lowering standby consumption.

5. Critical Infrastructure – Airports, Metros, Ports, Data Centres

Dedicated 66 kV/6 kV substations power runway lighting, traction substations and server halls. Integrated Buchholz relay, pressure-relief device and online DGA monitoring provide early-fault detection, achieving 99.99 % power availability mandated by ICAO and TIA-942 standards. Fire-compliant stone-wool firewalls and oil-containment pits satisfy NFPA 850.

Core Advantages of 66 kV Oil-Immersed Technology

Superior heat dissipation allows 140 % emergency overload for 2 hours; proven reliability with mean-time-between-failures >30 years; lower purchase price per kVA versus dry-type; easy field rewinding and oil reclamation reduce total ownership cost by 15 %.

Need a quotation, type-test report or site-specific design? Contact us for 2-week technical support and global delivery within 6–8 weeks.
