Practical Application of GPO-3 Insulation Board in Motor Stator and Rotor Insulation

In the field of motor manufacturing and maintenance, the insulation treatment of the stator and rotor is a core aspect of ensuring the long-term stable operation of equipment. With the development of industrial technology, the industry has raised higher standards for the mechanical strength, heat resistance, and electrical performance of motor insulation materials. GPO-3 insulation board, with its various performance advantages, has become the first choice for many motor design and maintenance engineers. This article will introduce the practical application of GPO-3 insulation board in motor stator and rotor insulation, explaining its material characteristics, application scenarios, and key selection points.

What is GPO-3 Insulation Board?

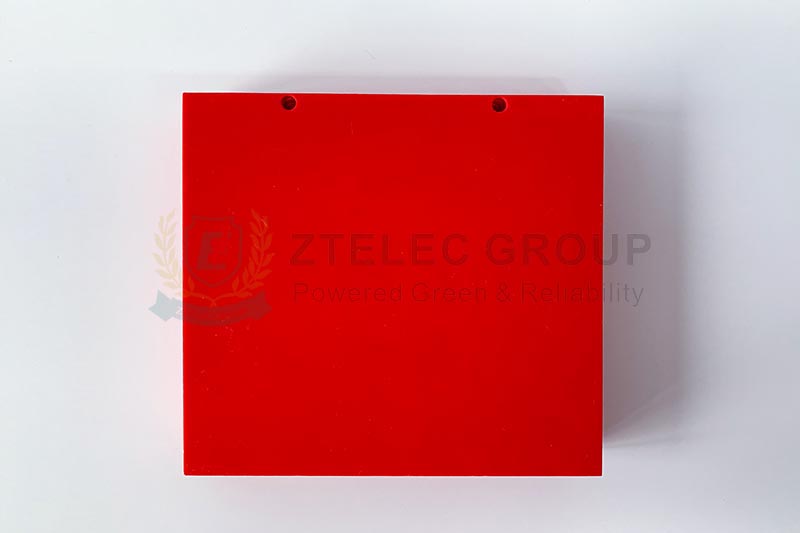

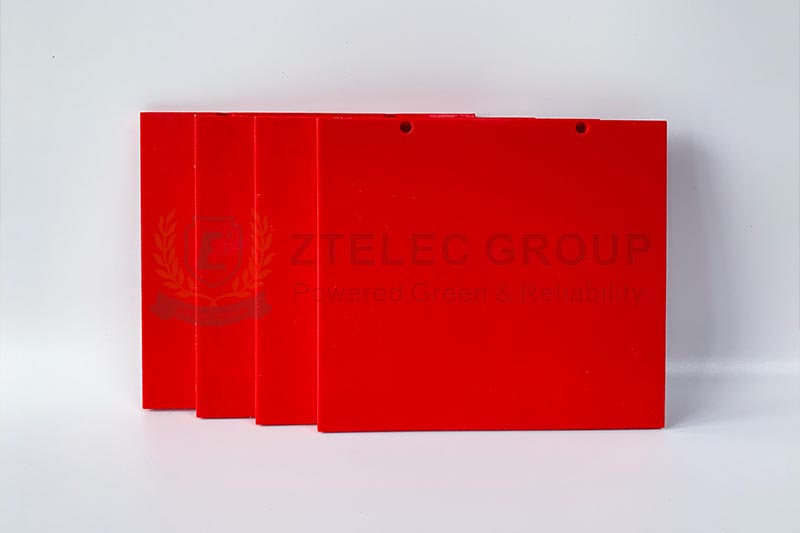

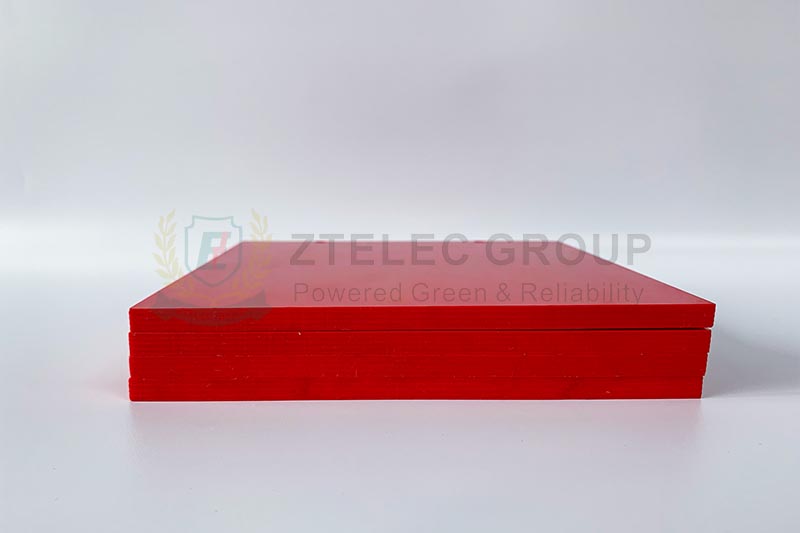

GPO-3 insulation board is a glass fiber reinforced unsaturated polyester laminate with excellent electrical insulation, mechanical strength, and heat resistance. It conforms to the standards of the National Electrical Manufacturers Association (NEMA) and is classified as an industrial insulation material. This material is usually supplied in sheet form and can be cut, stamped, or machined into different shapes according to actual needs.

Core Performance Advantages of GPO-3 Insulation Board

Electrical Properties: High dielectric strength and low dielectric constant, suitable for medium and high voltage operating environments.

Mechanical Properties: High strength and rigidity, impact and vibration resistant, easy to process.

Heat Resistance: Its continuous operating temperature is 155℃ or higher, and it can withstand even higher temperatures for short periods.

Chemical and Environmental Stability: Resistant to most chemical solvents and oils, moisture-proof and mildew-proof.

Flame Retardant Properties: It typically meets UL 94 V-0 flame retardant standards, improving motor safety during operation.

Applications of GPO-3 Insulation Board in Motor Stator and Rotor

In the insulation system of motor stator and rotor, GPO-3 insulation board is mainly used in the following four aspects:

1. Stator Winding Insulation

In the motor stator winding, GPO-3 insulation board can serve as an insulating material between the winding and the core. It effectively prevents current leakage, ensuring efficient and long-term stable operation of the motor.

Simultaneously, its excellent electrical properties support safe operation of the stator winding at higher voltages and frequencies.

2. Rotor Insulation

GPO-3 insulation board also plays a crucial role in rotor components. It serves as an insulation layer between the rotor conductors and the outer casing, preventing short circuits and current leakage. Its high-temperature resistance ensures stable insulation even at high speeds.

3. Motor End Cover Insulation

GPO-3 insulation board can be used for insulation of motor end covers. It prevents current leakage through the motor casing, ensuring safe operation and preventing electric shock accidents.

4. High-Voltage Motor Applications

High-voltage motors operate in demanding environments, requiring high withstand voltage performance from the stator and rotor insulation systems. GPO-3 insulation board, with its excellent electrical insulation properties and high-voltage resistance, is widely used in various high-voltage motors.

Selection and Processing Considerations in Practical Applications

1.Thickness Selection

Select the appropriate thickness of GPO-3 insulation board based on the motor voltage level and slot dimensions. Typically, the thickness of the board used for slot insulation is 0.2-1.0mm, while structural components require thicker boards.

2. Processing Precautions

Cutting and Stamping: GPO-3 insulation boards can be processed using standard tools. And it is recommended to use carbide tools to reduce tool wear.

Surface Treatment: After processing, the edges of the sheet material may become rough. If necessary, grinding is required to prevent damage to the windings.

Dry Storage: Although this material has a low moisture absorption rate, it still needs to be stored in a dry environment. Pre-drying treatment can be performed before use.

GPO-3 insulation boards offer a balanced range of electrical, mechanical, and thermal properties, playing a crucial role in the stator and rotor insulation of motors. Proper selection and use of GPO-3 materials during new motor manufacturing and the repair of older motors can significantly improve motor reliability, safety, and lifespan.
