Applications of DMD Epoxy Prepreg Material in Motors and Generators

In the design and manufacture of motors and generators, companies and engineers are constantly striving for higher efficiency, smaller size, longer life, and greater reliability. The choice of insulation material is crucial in this process, and DMD epoxy prepreg material, as a high-performance composite insulation material, is increasingly becoming the preferred choice among engineers. This article will explain what DMD epoxy prepreg material is and how it is used in motors and generators to improve overall equipment performance.

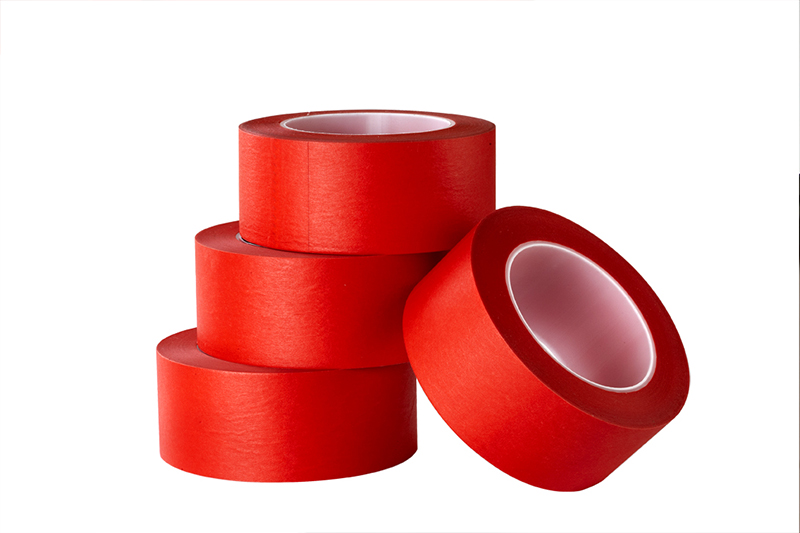

What is DMD epoxy prepreg material?

The name DMD comes from the abbreviations of its three-layer structure:

D: Non-woven polyester

M: Polyester film (Mylar)

D: Non-woven polyester

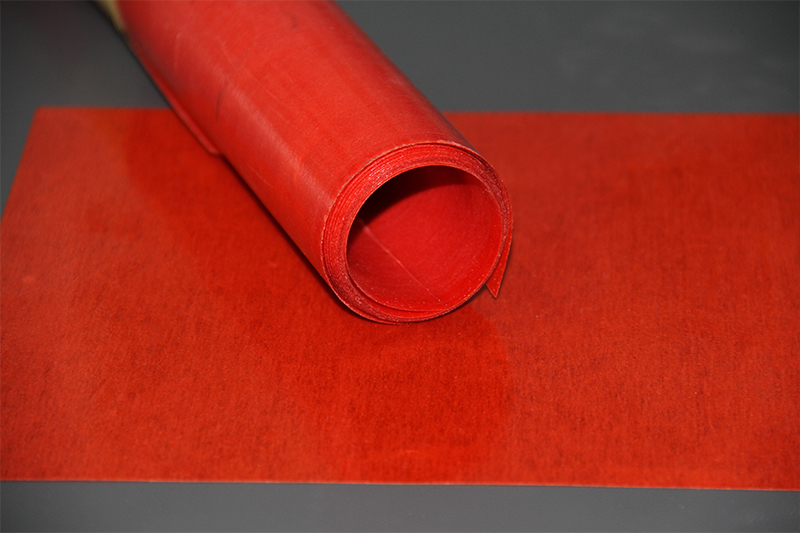

Thus, DMD is a composite material with a "sandwich" structure—the top and bottom layers are polyester non-woven fabric, which provides excellent mechanical strength and impregnation. The middle layer is polyester film, which provides excellent electrical insulation strength and arc resistance. This DMD substrate is impregnated with epoxy resin and treated through a B-stage (semi-curing) process to create a DMD epoxy prepreg.

This structure provides excellent electrical performance, mechanical strength, and heat resistance, while also facilitating easy processing.

Why is DMD epoxy prepreg material suitable for motors and generators?

Motors and generators face a variety of harsh operating conditions:

Electrical stress: High voltage creates a potential difference between windings, requiring the material to have high dielectric strength.

Thermal stress: Heat generated during operation accelerates aging of the insulation material, requiring the material to meet Class F (155°C) and Class H (180°C) heat resistance standards.

Mechanical stress: Electromagnetic forces induce vibration, and manufacturing operations such as slotting and winding also generate external forces, requiring the material to have high mechanical strength and toughness.

Environmental stress: Exposure to oil, grease, chemicals, and humid environments requires chemical resistance and moisture resistance.

The properties of DMD epoxy prepreg are precisely tailored to these conditions:

High electrical insulation: The polyester film in the middle effectively isolates current, preventing short circuits between turns, phases, and ground.

High mechanical strength and toughness: The non-woven fabric layer is tear-resistant, puncture-resistant, has good toughness, is not prone to damage during threading, and can also withstand vibrations during operation.

Excellent heat resistance: The epoxy resin system allows it to easily meet Class F or Class H insulation standards, ensuring long-term stable operation of equipment at high temperatures.

Excellent impregnation and adhesion: The epoxy resin in the prepreg flows and solidifies during hot press molding, tightly bonding the coil and core to form a solid structure, improving heat dissipation while enhancing moisture and contamination resistance.

Specific Applications of DMD Epoxy Prepreg in Motors and Generators

DMD epoxy prepreg is primarily used for slot insulation and phase insulation in motors and generators, and can also be used for end linings and supports:

1. Slot Liner

DMD epoxy prepreg is wrapped in the slots of the motor's stator or rotor core, between the conductor (copper wire) and the core (grounding body), serving as primary insulation.

Purpose: This is a critical insulation component. It must withstand mechanical shock during winding and inserting, and also ensure that the potential difference of thousands of volts between the conductor and the core does not cause breakdown. The hardness and strength of the molded DMD prepreg meet these requirements.

2. Phase Insulation

DMD epoxy prepreg is placed between the windings of different phases (such as U, V, and W) in the motor to separate them.

Purpose: It prevents short circuits caused by high potential differences between phases. The high dielectric strength of the DMD material ensures safe phase isolation.

3. End Gaskets and Supports

DMD epoxy prepreg is installed at the winding ends to provide support.

Purpose: It secures the winding ends, preventing displacement and wear due to electromagnetic forces or vibration, thereby improving equipment reliability.

As motor and generator technology continues to advance towards higher efficiency, reliability, and compactness, DMD epoxy prepreg is no longer simply an auxiliary material but a key component that impacts the core competitiveness of these devices. Its comprehensive properties provide design engineers with practical solutions, enabling the creation of next-generation motors and generators with improved performance and longer lifespans. If you are designing and manufacturing high-voltage, high-efficiency, or specialty motors, a thorough understanding of DMD epoxy prepreg  will significantly contribute to project success.
