How to Choose FR5 Epoxy Sheet? High-Temperature PCB Material Guide

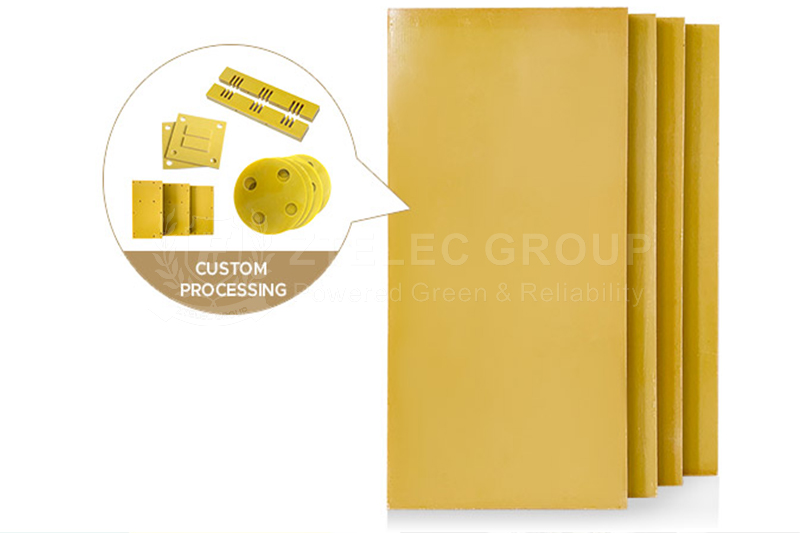

In the field of electronic equipment manufacturing, FR5 epoxy sheet is a high temperature resistant PCB substrate, and its performance directly affects the stability and service life of the equipment. So, how to choose a suitable FR5 epoxy sheet? Below we will analyze it in detail from multiple key dimensions.

1. Key performance indicators FR5 epoxy sheet

Heat resistance

FR5 epoxy sheet needs to work continuously in a high temperature environment, and its heat resistance is very important. Excellent FR5 epoxy sheet has a high glass transition temperature (Tg value) and thermal decomposition temperature (Td value). With these characteristics, it can calmly cope with high temperature environments and ensure the stable operation of materials in high temperature conditions.

Mechanical strength

The operating environment of electronic equipment is often more complex and will be affected by various factors such as high temperature and vibration. In such an environment, FR5 epoxy sheet needs to maintain stable bending strength and impact toughness. Only in this way can the integrity of its own structure be ensured to avoid deformation, cracking and other problems.

Electrical performance

For signal transmission, the electrical performance of FR5 epoxy sheet plays a decisive role. Its low dielectric constant (Dk) and low dielectric loss (Df) characteristics can effectively reduce the delay and energy loss during signal transmission, thereby ensuring efficient and stable signal transmission.

2. In-depth analysis of key performance characteristics

Heat resistance and mechanical stability

In the application scenario of lead-free soldering process, or when the equipment needs to work in a high temperature environment for a long time, the FR5 epoxy sheet must ensure the stability of its own structure. The precise matching of the coefficient of thermal expansion (CTE) and other components of the circuit board is a key factor in avoiding the risk of interlayer separation caused by thermal stress.

Electrical performance and signal integrity

Low dielectric constant advantage: The low dielectric constant characteristics of FR5 epoxy sheet can significantly reduce signal transmission delay. Therefore, it becomes an ideal choice for high-frequency circuit applications.

Low dielectric loss efficiency: This material can effectively reduce energy loss, greatly improve signal transmission efficiency, and thus ensure signal quality.

Arc resistance: The excellent arc resistance of FR5 epoxy sheet can effectively prevent arc breakdown and enhance the reliability and safety of circuit operation.

Physical and chemical stability

Low water absorption characteristics: Because FR5 epoxy sheet has low water absorption, it can resist performance degradation caused by humidity changes, ensuring the stability of the material in different humidity environments.

Chemical corrosion resistance: It has good tolerance to industrial media such as transformer oil and coolant, and is suitable for various complex working environments.

3. Comprehensive evaluation of application adaptability

Application scenarios in high temperature environments

In scenarios such as engine control units in the automotive electronics field and satellite power modules in the aerospace field, the equipment needs to be in a high temperature environment for a long time. In these application scenarios, FR5 epoxy sheet can effectively alleviate the impact of thermal stress, reduce the risk of deformation and cracking, and ensure stable operation of the equipment with its high heat resistance and low thermal expansion characteristics.

Application fields with high power density

In the manufacturing process of high-power devices such as LED lighting and power converters, the high thermal conductivity and low dielectric loss characteristics of FR5 epoxy sheet play an important role. These characteristics can significantly improve the heat dissipation efficiency of the equipment, ensure signal integrity, and optimize the overall performance of the equipment.

High-frequency signal transmission scenarios

For high-frequency signal transmission applications such as 5G communications and radar systems, the low dielectric constant and low dielectric loss advantages of FR5 epoxy sheet are very prominent. With these advantages, it can effectively reduce signal attenuation and greatly improve the signal transmission rate and quality.

4. Supplier Qualification Review and Supply Chain Management Strategy

Key Points of Supplier Qualification Review

Production Capacity Assessment: When selecting suppliers,  companies that have obtained authoritative qualifications such as ISO 9001 international quality management system certification and UL product safety certification should be given priority. In this way, the consistency and traceability of product quality are ensured.

R&D Strength Inspection: Focus on the supplier's ability to optimize material formulas. High-quality suppliers can flexibly adjust material properties according to actual customer needs to meet diverse application needs.

Supply Chain Risk Management Measures

Delivery Cycle Planning: Due to the long production cycle of FR5 epoxy sheet, a complete procurement plan needs to be formulated in advance. Only in this way can the project progress be avoided from being hindered due to delayed supply.

Inventory Management Strategy: Negotiate with suppliers to establish a safety inventory mechanism, which can effectively respond to sudden demands and ensure the stable operation of the supply chain.

Technical Support Services: Give priority to suppliers who can provide value-added services such as material selection suggestions and process optimization solutions. This can reduce potential risks in the application process.

5. Cost and performance balance optimization strategy

Life cycle cost analysis

Although the unit price of FR5 epoxy sheet is relatively high, it has excellent high temperature stability and ultra-long service life. In practical applications, this can significantly reduce the equipment maintenance cost. Taking a data center project as an example, after adopting FR5 epoxy sheet, the equipment failure rate was greatly reduced, the maintenance cycle was significantly extended, and the comprehensive cost was effectively controlled.

Alternative solution evaluation and selection

For projects with limited budgets, a differentiated application strategy can be adopted. FR5 epoxy sheet is used in the high-frequency signal area, and other materials are used in the low-frequency area. In this way, a reasonable balance between performance and cost is achieved.

6. Practical purchase suggestions

Clear demand orientation: According to the specific application scenario, accurately determine the key characteristics of the material such as heat resistance and electrical performance.

Strict supplier screening: Give priority to suppliers with international authoritative certification and rich industry experience.

Sample test verification: Before large-scale procurement, require suppliers to provide samples for comprehensive performance testing and reliability verification.

Establish long-term cooperation: Build strategic partnerships with high-quality suppliers to ensure the stability of the supply chain and obtain continuous technical iteration support.
