Basic guide to boost transformers

With the acceleration of modernization, the development of power systems has also sped up. In this process, boost transformers, as indispensable and important equipment in power transmission and distribution systems, have become increasingly significant. The main function of a boost transformer is to increase voltage and reduce current in transmission lines, thereby minimizing energy loss and ensuring efficient power transmission. This article aims to provide readers with a basic guide to boost transformers, enabling a better understanding of their working principles, structural characteristics, application fields, and maintenance management.

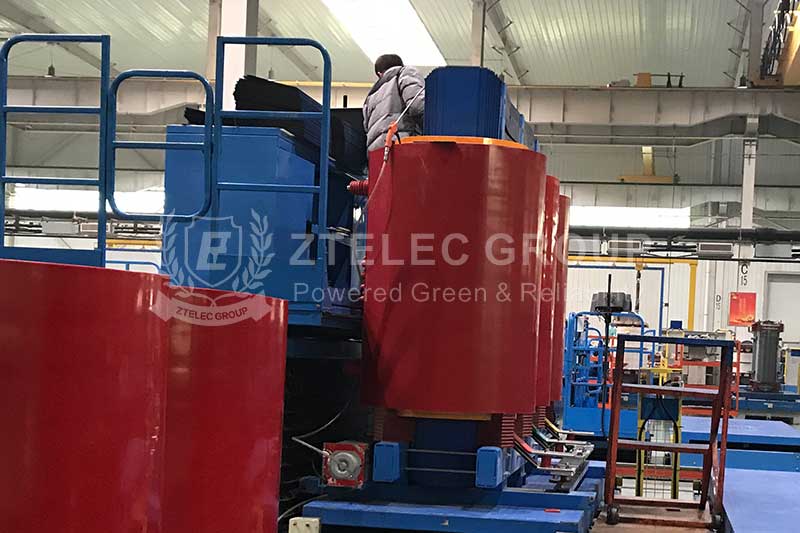

dry-type-transformer

Working Principle of Boost Transformers

A boost transformer typically consists of two windings: the primary winding and the secondary winding. The primary winding is connected to the input power source, while the secondary winding is connected to the output load. According to Faraday's principle of electromagnetic induction, when alternating current flows through the primary winding, a varying magnetic field is generated in the core, inducing voltage in the secondary winding. The ability of a boost transformer to increase voltage mainly relies on the turns ratio of its winding coils. Generally, the number of turns in the secondary winding is greater than that in the primary winding, resulting in an output voltage higher than the input voltage. This relationship can be expressed mathematically as:

[ V_s = V_p imes rac{N_s}{N_p} ]

where ( V_s ) is the secondary voltage, ( V_p ) is the primary voltage, ( N_s ) is the number of turns in the secondary winding, and ( N_p ) is the number of turns in the primary winding.

Structural Characteristics of Boost Transformers

The structure of a boost transformer generally includes the following main components:

1. Core: The core is the central part of the boost transformer, primarily used to enhance the strength of the magnetic field and reduce magnetic circuit losses. The core is usually made of laminated silicon steel sheets to minimize eddy current losses.

2. Windings: The windings are the key components of the boost transformer, typically made from copper or aluminum, which have good electrical conductivity. The manufacturing process of the windings directly affects the performance and efficiency of the transformer.

3. Insulation Materials: The insulation system is crucial for ensuring the safe operation of the boost transformer, providing electrical isolation between the windings and the core, as well as between the windings and the housing. Insulation materials must possess excellent electrical insulation properties and heat resistance.

4. Cooling System: Boost transformers generate heat during operation; thus, an effective cooling system is essential. Common cooling methods include natural cooling and forced cooling, with the specific choice depending on the transformer’s rated power and operating environment.

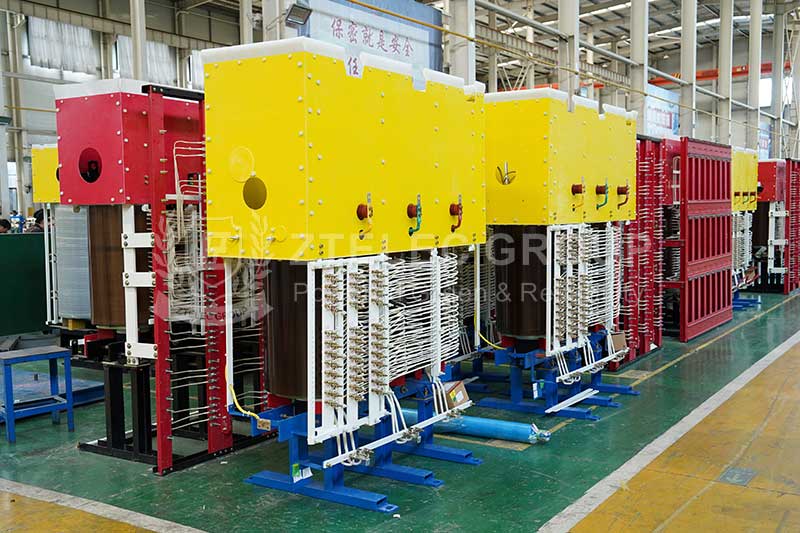

transformers

Application Fields of Boost Transformers

Boost transformers are widely used in various industries and fields, with their main applications including:

1. Power Transmission: In high-voltage transmission systems, boost transformers are used to increase the voltage output from power plants, thereby reducing current losses in transmission lines and ensuring efficient long-distance power transmission.

2. Substations: In substations, boost transformers are employed to elevate voltage to levels suitable for long-distance delivery, often used in conjunction with step-down transformers to achieve flexible voltage regulation.

3. Industrial Production: In large-scale industrial manufacturing processes, boost transformers provide high-voltage power supplies, ensuring stable operation of equipment and efficient production.

4. Renewable Energy: In the fields of renewable energy such as wind and solar power, boost transformers are widely used to elevate the low-voltage electricity generated to grid standards, facilitating better integration into the power system.

Maintenance and Management of Boost Transformers

To ensure the safety and efficiency of boost transformers, maintenance and management are particularly important. Common maintenance measures include:

1. Regular Inspections: Regular comprehensive inspections of boost transformers should be conducted, including checks on appearance, insulation, oil temperature, current, voltage, and other parameters to promptly identify potential faults.

2. Temperature Monitoring: Appropriate temperature monitoring devices should be used to ensure the transformer operates within a safe temperature range, avoiding insulation breakdown or equipment damage due to overheating.

3. Cleaning and Maintenance: The surface of the transformer and its surrounding environment should be regularly cleaned to prevent dust and debris from affecting heat dissipation and insulation performance. Additionally, maintenance of components such as oil tanks and cables should be performed to ensure they are in good working condition.

4. Record Keeping and Analysis: Records of each maintenance activity should be analyzed to summarize experiences, improve management measures, and enhance the operational efficiency and reliability of the equipment.

Boost transformers play a crucial role in modern power systems. By gaining an in-depth understanding and comprehensive mastery of their operation, effective safeguards can be provided for the safe, stable, and efficient transmission of electricity. Through systematic maintenance and management, the service life of boost transformers can be extended, and their operational reliability improved. In the future, with continuous technological advancements and innovations, the performance and application fields of
