SCB18 Dry-Type Transformer Energy Efficiency Upgrade: 15% Loss Reduction and Fastest ROI Strategy

Do you operate a factory, data center, commercial complex, or other facility that relies on power transformers? Are your electricity bills high due to the transformer's no-load and load losses? The SCB18 series dry-type transformer, with its 15% loss reduction, offers an effective way to lower energy costs and enhance operational efficiency. This article explains how SCB18’s technology upgrades deliver measurable value and how you can achieve the fastest return on investment (ROI).

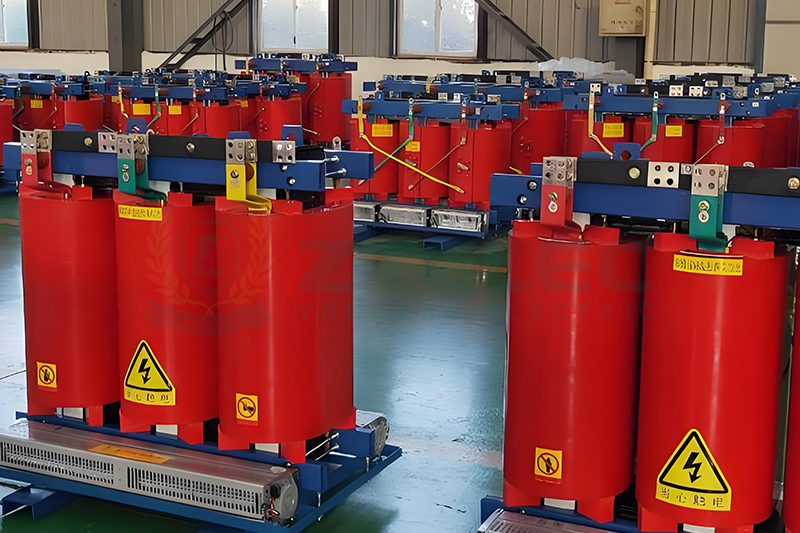

SCB18 Dry-Type Transformer Energy Efficiency Upgrade Overview

The SCB18 achieves its energy-saving performance through three key technological advancements designed to minimize losses and enhance cooling efficiency.

High-Permeability Silicon Steel Sheet

The SCB18 uses 0.23mm thick 30Q120 high-grade grain-oriented silicon steel sheets, reducing specific iron losses by 18% compared to standard materials. Its three-dimensional wound core process eliminates magnetic resistance at core joints, achieving a 99.8% magnetic circuit closure rate and significantly reducing core losses.

Foil Winding Technology

The low-voltage winding adopts a copper foil winding process that increases the conductor fill factor to 95%. This reduces eddy current losses by 12% compared with traditional wire windings. Combined with epoxy resin vacuum casting technology, the winding temperature rise is reduced by 5K, improving overall thermal performance and reliability.

Intelligent Temperature Control System

Equipped with an AI-integrated temperature control module, the SCB18 automatically adjusts fan operation based on load changes. At a 30% load factor, the cooling system’s energy consumption is reduced by 40% compared to conventional transformers, contributing to lower auxiliary power use.

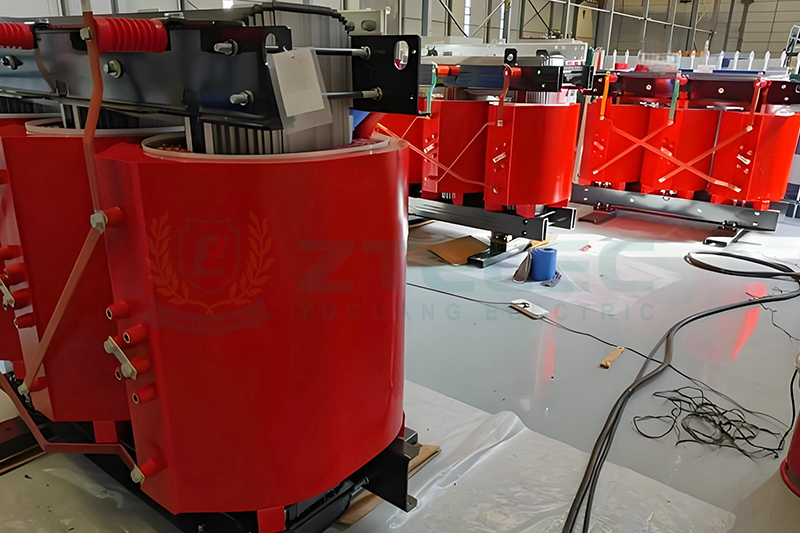

Real Energy Savings: From Reduced Losses to Measurable Benefits

For example, a traditional SCB14 1000kVA transformer typically incurs about 17,500 kWh of annual losses. By comparison, an SCB18 transformer with 15% lower losses saves approximately 2,625 kWh per year. At an electricity price of 1 yuan/kWh, that equals 2,625 yuan in annual savings.

Facilities with multiple transformers or higher local electricity rates can achieve even greater benefits. For transformers above 2000 kVA, annual savings can exceed 10,000 yuan. These savings directly offset the initial equipment investment, improving overall financial performance.

How to Achieve the Fastest Return on Investment

Purchasing an SCB18 transformer is an investment that reduces long-term operating costs through enhanced energy efficiency. To maximize ROI and minimize payback time, consider the following four strategies.

1) Targeted Application Scenarios

The payback rate depends on operating hours and load factors. The shortest ROI cycles are achieved in continuous operation environments such as data centers, hospitals, communication base stations, and manufacturing plants. High-load industries and regions with elevated electricity prices can also realize faster returns.

2) Utilize Government Subsidies and Tax Incentives

Many local governments support energy-efficient equipment purchases through cash subsidies and tax credits for products listed in the energy-saving catalog. Before purchasing, consult with the local Development and Reform Commission or Economic and Information Technology Bureau to identify specific incentives available for Class-A energy-efficient transformers like SCB18. Leveraging these policies effectively shortens the payback period.

3) Conduct a Life Cycle Cost (LCC) Analysis

Evaluating transformers solely based on purchase price overlooks their true cost. A comprehensive life cycle cost analysis considers both the initial investment and the operating energy expenses over 20–30 years. Although the SCB18’s purchase price is slightly higher, its efficiency reduces long-term costs, allowing the investment to be recovered within 2–5 years. After that, all electricity savings translate into net profit.

4) Choose a Reliable Transformer Supplier

A trustworthy supplier not only provides certified SCB18 transformers but also delivers crucial services such as custom ROI analysis reports, energy efficiency testing, and technical documentation. Reliable after-sales service minimizes downtime and ensures consistent energy savings, securing the financial return on your investment.

SCB18 Transformer as a Smart Energy Investment

The 15% reduction in losses achieved by the SCB18 dry-type transformer is not just a technical specification—it represents a measurable and sustainable improvement in power efficiency. By upgrading to the SCB18, you gain both lower operating costs and higher energy utilization, resulting in an optimal balance of performance and profitability.

Now is the best time to evaluate your existing transformer performance and transition to the SCB18 energy-efficient dry-type transformer. This upgrade will reduce electricity bills, enhance power reliability, and generate long-term economic benefits for your facility.
