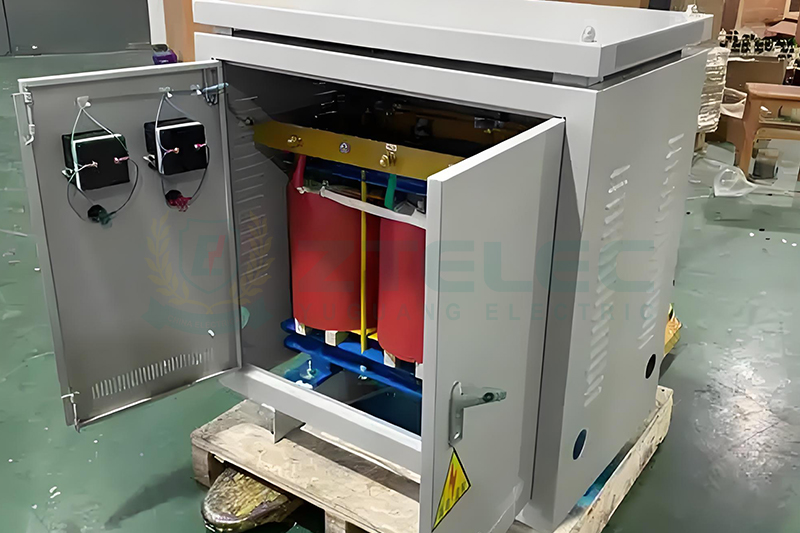

480V to 380V Three-Phase Isolation Dry-Type Transformer: Safe Power Conversion for Export Equipment

The 480V to 380V three-phase isolation dry-type transformer is an indispensable power conversion device for exporting industrial equipment. Voltage standards vary by country — while some use 480V, others operate on 380V or 400V. Directly connecting 480V equipment to a 380V grid can result in startup failure, reduced performance, or even permanent damage to motors and control systems. Using an isolation transformer not only solves voltage mismatch issues but also provides complete electrical safety, ensuring zero-risk operation and compliance with international standards.

The Safety Value of Isolation Transformers

While an ordinary transformer only converts voltage, a high-quality isolation dry-type transformer adds a critical safety barrier that protects both personnel and equipment.

1. What is “Isolation” and Why Is It Important?

Unlike an autotransformer where the input and output share a common electrical path, an isolation transformer transfers energy through independent primary and secondary windings. This design provides the following key benefits:

Isolating ground loops: Prevents grid-side voltage surges or faults from transmitting directly to the connected equipment.

Reducing electric shock risk: The 380V output circuit is not directly referenced to ground potential. Accidental contact with a single conductor does not complete an electrical loop, significantly reducing the risk of fatal electric shock. (Note: Touching both live conductors remains dangerous.)

Protecting precision electronics: Filters out harmonics, noise, and transient surges, delivering clean, stable power to sensitive devices such as PLCs, servo drives, and inverters.

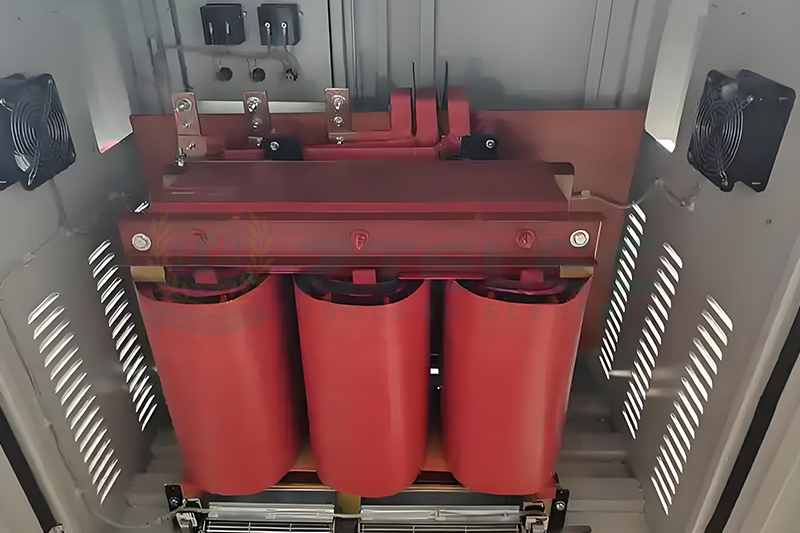

2. What Does “Dry-Type” Mean and Why Is It Ideal for Export?

No oil, no leakage: Dry-type transformers use epoxy resin or vacuum pressure impregnation (VPI) to encapsulate coils, eliminating oil leakage risks and simplifying international transport.

Superior fire resistance: With flame-retardant construction, dry-type transformers can be safely installed indoors, near production equipment, or in fire-regulated environments.

Low maintenance: These transformers do not require oil checks or replacements, significantly reducing maintenance workload and costs.

Achieving Zero-Risk Electric Shock

“Zero risk” is achieved through robust transformer design, correct grounding, and professional installation procedures.

1. Transformer Safety Design

Shielding: Choose transformers equipped with a Faraday shield between windings to suppress common-mode noise and enhance insulation performance.

High insulation rating: Ensure the insulation system can withstand voltages exceeding its rated capacity to handle transient overvoltage situations safely.

IP protection level: Select an IP rating suitable for the installation environment (e.g., IP23 for indoor drip-proof or IP54 for dustproof and waterproof conditions).

2. Proper Grounding Practices

Core and casing grounding: Must be securely connected to earth ground to dissipate static electricity and prevent induced current hazards.

Neutral grounding configuration: Depending on the power system type (TN-S or IT), determine whether to ground the secondary neutral point. All grounding work must comply with local electrical codes and be executed by certified electricians.

3. Installation and Protection Measures

Installation should be performed by a qualified electrician. The transformer should be mounted in a protective cabinet or behind barriers with clear high-voltage warning signs to prevent unauthorized contact.

4. Operation and Maintenance

Lockout/Tagout (LOTO): Before performing maintenance or wiring, always follow LOTO procedures to ensure power disconnection.

Routine inspections: Periodically measure coil insulation resistance with a megohmmeter to verify continued safety and performance.

Investing in a premium-grade 480V to 380V three-phase isolation dry-type transformer guarantees reliable voltage conversion, personnel protection, equipment longevity, and compliance with international export standards. It is a fundamental solution for achieving electrical safety and zero-risk operation in global industrial applications.
