Combination of Prefabricated Substations and Dry-Type Transformers: Features, Advantages, and Applications

In today’s power industry, where safety, efficiency, and sustainability are key requirements, the combination of dry-type transformers and prefabricated substations has become one of the most widely adopted solutions. This innovative integration is now applied in urban power grids, commercial complexes, industrial facilities, data centers, and renewable energy projects. But what makes this combination so effective? Let’s explore its features, benefits, and wide-ranging applications.

Features and Applications of Prefabricated Substations

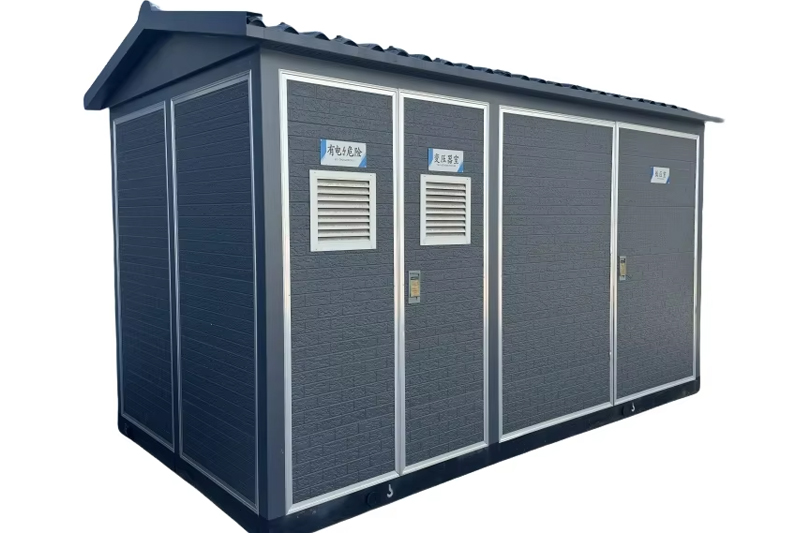

European-style box-type substations, commonly referred to as prefabricated substations, integrate high-voltage switchgear, transformers, and low-voltage distribution equipment into a single compact enclosure. This modular structure provides multiple benefits, including space efficiency, reliability, and simplified installation. As a result, prefabricated substations are increasingly used as distribution hubs in urban networks, industrial parks, airports, and commercial centers.

Key features: They offer a compact design that saves floor space, high reliability with built-in safety protections, and easy maintenance thanks to modular components. Their sealed metal enclosure also improves protection against harsh environments.

Characteristics and Applications of Dry-Type Transformers

Dry-type transformers are oil-free transformers that rely on solid insulation materials such as epoxy resin and fiberglass instead of insulating oil. This design eliminates the risks of oil leakage and fire hazards while supporting sustainable, eco-friendly power distribution. Their quiet operation and simple maintenance make them highly suitable for modern energy systems.

Core advantages: Environmentally friendly operation, high fire resistance, safe and reliable insulation performance, reduced maintenance requirements, and extended service life. They are widely applied in areas with strict safety and environmental standards, such as hospitals, schools, high-rise buildings, and underground facilities.

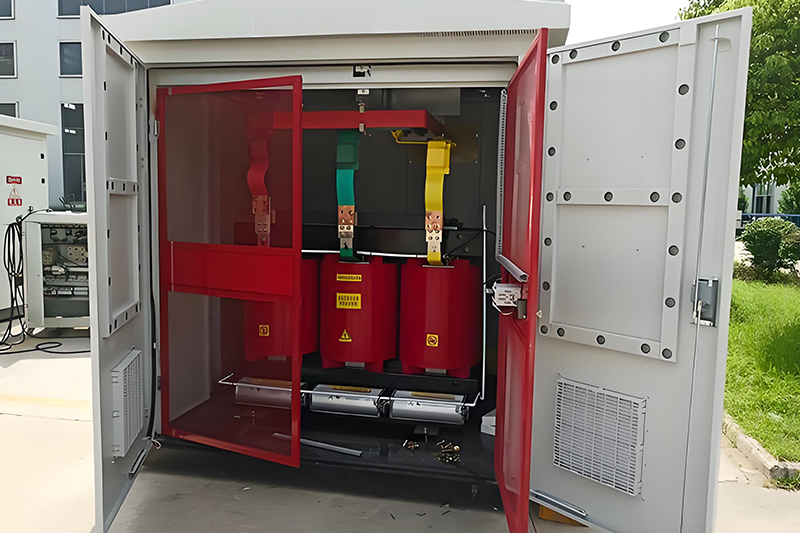

Why Dry-Type Transformers are Ideal for Prefabricated Substations

When a prefabricated substation integrates a dry-type transformer, the result is a synergistic solution that enhances safety, efficiency, and performance. This combination is favored in power projects worldwide for the following reasons:

1. Higher Safety and Reliability

Fireproof and explosion-proof: Dry-type transformers contain no insulating oil, eliminating the risk of fire and explosion. This makes them ideal for installation in sensitive areas such as office buildings, shopping malls, tunnels, and hospitals, ensuring compliance with stringent fire safety codes.

Environmental protection: With no oil leakage risk, dry-type transformers prevent soil and groundwater contamination, meeting modern environmental standards.

2. Better Operation, Maintenance, and Cost Efficiency

Low maintenance: Unlike oil-immersed transformers, dry-type transformers require no oil sampling or regular oil inspections, reducing maintenance costs and time.

Space and cost savings: Prefabricated substations are already compact, and when paired with dry-type transformers, they save even more space by eliminating the need for oil pits and drainage systems. This allows for flexible installation in space-limited environments while reducing construction expenses.

3. Enhanced Performance and Energy Efficiency

High overload capacity: Modern dry-type transformers, such as SCB10 and SCB13 models, use advanced insulation and design methods that provide excellent short-term overload capability and adaptability to fluctuating power demands.

Energy saving: High-efficiency dry-type transformers that comply with IE4 or equivalent standards feature low load and no-load losses, delivering significant energy savings over their lifetime and supporting sustainable development goals.

Effective heat dissipation: Prefabricated substations include optimized ventilation systems, ensuring efficient cooling for dry-type transformers, prolonging service life, and improving reliability under heavy load conditions.

4. Wide Application Range

The integration of prefabricated substations and dry-type transformers makes them suitable for diverse sectors, including:

Urban Distribution: Reliable supply for ring networks and terminal loads while maintaining visual harmony with city landscapes.

Commercial and Real Estate: Stable power delivery for malls, office towers, and high-rise residential buildings.

Industrial Applications: Power for factories, ports, and mining operations, particularly in facilities with strict fire safety requirements.

Infrastructure: Widely applied in tunnels, highways, airports, and railway systems where space and safety are critical.

Renewable Energy: Voltage boosting and grid connection for solar photovoltaic and wind power plants.

The combination of prefabricated substations and dry-type transformers represents a forward-looking solution for modern energy distribution. Offering higher safety, reduced environmental risks, simplified maintenance, and strong energy efficiency, this integration is reshaping how urban power networks, industrial facilities, and renewable energy projects operate. As global energy systems evolve, the demand for such eco-friendly, compact, and reliable power solutions will continue to grow, driving the future of smart and sustainable electricity distribution.
