Design Features of European-Style Prefabricated Substations in Distribution Systems

European-style prefabricated substations are widely applied in modern distribution systems, especially in urban areas, industrial parks, and rural grid upgrades. They integrate high-voltage switchgear, transformers, and low-voltage switchgear into one compact enclosure, offering high safety, reliability, and environmental adaptability. Compared to American-style substations, European-style units place more emphasis on modular design, automation, and environmental protection. Below is a detailed analysis of their design features and advantages.

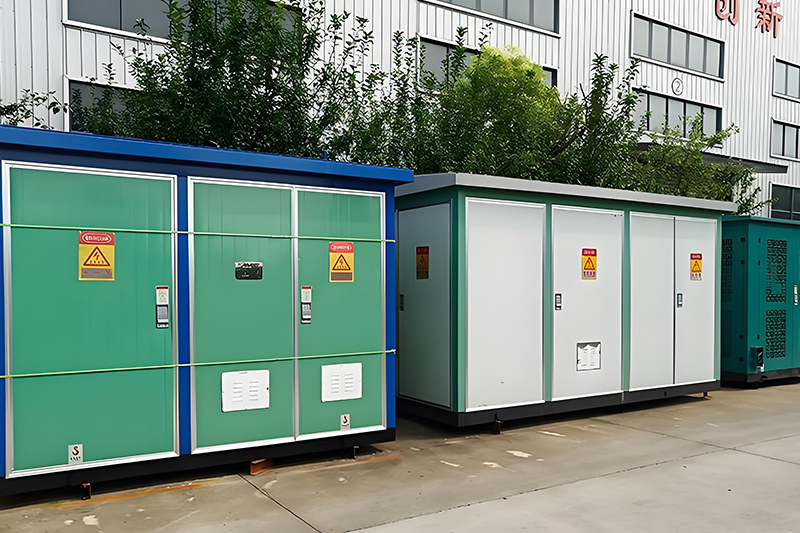

1. Modular Structural Design

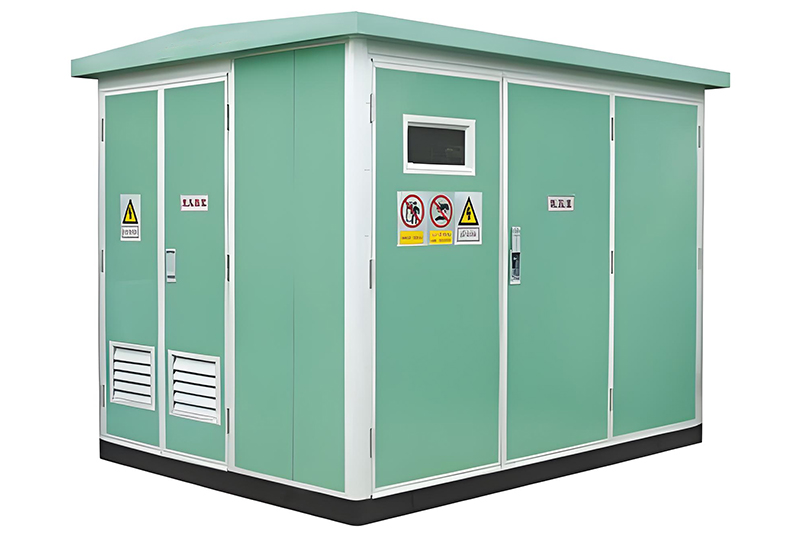

The European-style prefabricated substation is divided into three separate compartments: high-voltage switchgear room, transformer room, and low-voltage distribution room. These compartments are enclosed within metal housing and interconnected through cables or busbars. This design provides several key benefits. First, functional isolation ensures that faults in one compartment do not spread to others. Second, ease of maintenance allows each module to be independently inspected and repaired, minimizing the scope of outages. Finally, the compact modular structure reduces land usage, making it ideal for densely populated urban areas.

2. Comprehensive Protection Schemes

Depending on project requirements, European-style substations offer two major high-voltage side protection methods. The first is the combination of load switch and fuse, which can quickly cut off short-circuit currents and is suitable for scenarios with moderate reliability requirements. The second method is circuit breaker protection, which integrates functions such as instantaneous overcurrent, overload, and single-phase ground fault protection. This scheme is especially suited for high-rise buildings, industrial parks, and projects requiring uninterrupted power supply.

3. High Degree of Automation

Automation is one of the core strengths of European-style substations. They are often equipped with microcomputer-based integrated automation devices, which support remote monitoring, signaling, control, and adjustment. This enables operators to perform real-time management from control centers. In addition, advanced environmental control systems, such as air conditioning and dehumidification, allow stable operation even under extreme conditions ranging from -40℃ to +40℃. Unattended operation is possible due to automated fault diagnosis and isolation, significantly lowering maintenance costs and improving efficiency.

4. Flexible Configuration Options

European-style substations can be configured in flexible ways to meet different project demands. A full-container configuration integrates all 35kV and 10kV equipment within the enclosure, making it a suitable choice for new substations. Alternatively, a hybrid configuration places 35kV equipment outdoors, while housing 10kV equipment and control systems inside the container. This option is especially practical for upgrading existing stations during rural grid reconstruction, requiring only the addition of a 10kV switchgear cabinet to achieve unattended operation.

5. Safety and Environmental Protection

Safety is a critical factor in substation design. European-style substations adopt a “five-prevention” interlock mechanism, which prevents misoperation and ensures safe handling. For fire safety, they use flame-retardant materials, provide dedicated pressure relief channels in oil-immersed transformer rooms to prevent explosions, and may include optional high-temperature alarms and automatic fire-extinguishing devices such as dry powder systems. In terms of environmental protection, these substations incorporate low-noise control by using low-loss transformers and soundproofing materials. They also feature landscape adaptability, with enclosures designed to match surrounding architecture or urban aesthetics, reducing visual impact and enhancing integration with the environment.

European-style prefabricated substations combine modular design, flexible configurations, advanced automation, and strong safety features, making them an ideal solution for modern power distribution systems. Their adaptability to diverse environments, low maintenance requirements, and high reliability ensure long-term operational efficiency. For urban infrastructure, industrial applications, and rural grid upgrades, these substations provide a balance of performance, safety, and sustainability, positioning them as a preferred choice in power system projects worldwide.
