G10 Epoxy Board: An Innovative Solution for Electrical Insulation

In a world that relies on electricity and electronic equipment, the need for electrical insulation materials has never been greater, and these materials must be reliable, efficient, and durable. Whether it is a complex printed circuit board (PCB), a high-power transformer, or industrial equipment used in harsh environments, the performance of insulating materials will directly affect the safety and life of the entire system. Among various types of insulation materials, G10 epoxy board has outstanding performance. It has not only passed the test of long-term use, but is also constantly upgraded. It is currently the top insulation solution.

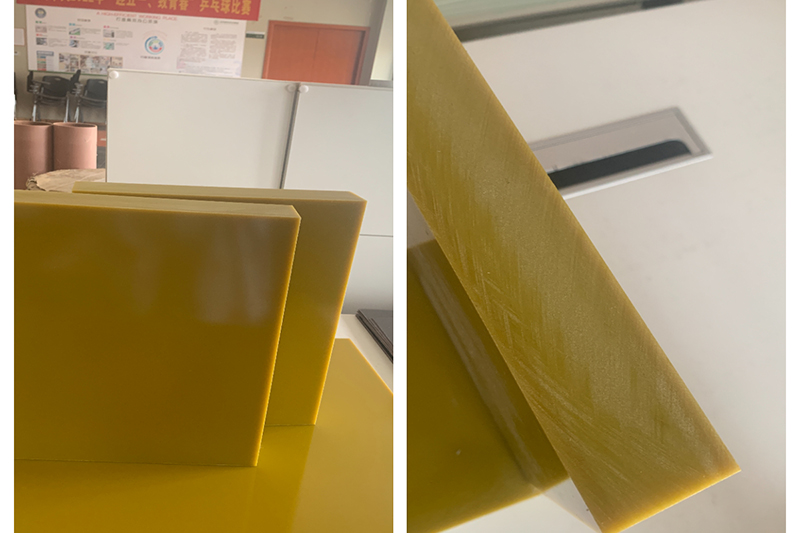

In the industry, G10 epoxy board is closely related to FR4 material, and FR4 is G10 with flame retardant rating. It is a composite material made of continuously woven glass fiber cloth as the base, impregnated with epoxy resin, and laminated under high temperature and high pressure. This specific production process gives G10 epoxy board a comprehensive range of properties, making it suitable for electrical insulation and other demanding applications.

Simply put, it combines the strength of fiberglass with the insulation of epoxy to deliver outstanding performance.

Thanks to its insulating properties, G10 epoxy board provides strong protection for electrical equipment. Its insulation properties are reflected in high resistivity and excellent dielectric strength, which can effectively prevent current leakage and isolate electromagnetic interference.

G10 Epoxy board insulation material manufacturers adopt high-standard production processes and conduct strict quality control on G10 epoxy board to ensure that it is reliable and durable in various electrical applications, and that the quality meets or even exceeds industry standards.

G10 epoxy board also has excellent mechanical properties. It not only has high hardness, but also has good impact resistance and tensile strength, making it suitable for manufacturing structural insulation components.

In addition, G10 epoxy boards are heat and chemical resistant and can maintain stable performance in extreme environments, which is very important in power transmission and distribution equipment.

G10 Epoxy board insulation material manufacturers also pay attention to the environmental protection of their products. G10 epoxy board is recyclable, can reduce the impact on the environment, and meets the needs of sustainable development of modern industry.

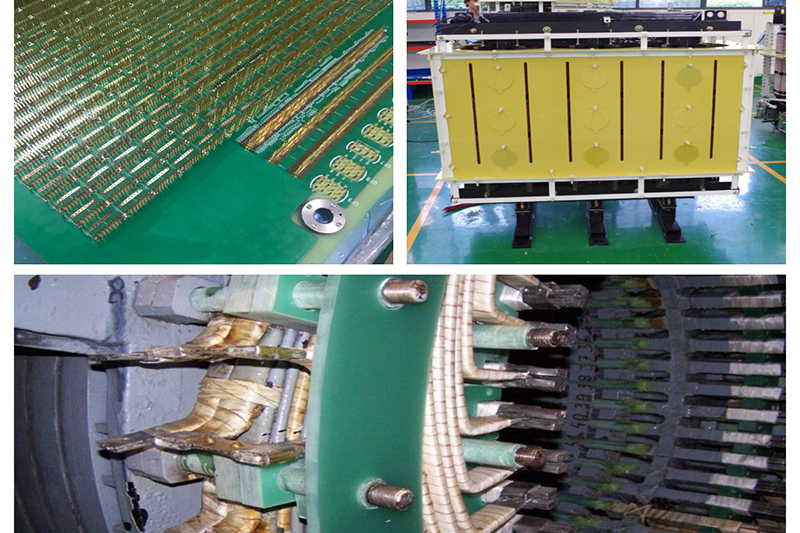

Main Application Areas of G10 Epoxy Board

With the above properties, the applications of G10 epoxy board cover many industrial fields:

Electronic and electrical industry: As FR-4 epoxy glass cloth board, it is the most commonly used substrate for manufacturing printed circuit boards (PCB).

Transformers and motors: G10 is used for coil bobbins, interlayer insulation and end insulators to ensure safe operation under high voltage.

High voltage switchgear: G10 is used as insulating partitions, support columns and circuit breaker components.

Industrial machinery field: Manufacturing fixtures, jigs, insulating gaskets and electrical insulation platforms that require high strength.

G10 vs. Other Insulation Materials: Why Choose G10?

When choosing insulation materials, engineers often consider phenolic boards, bakelite, aluminum substrates, etc., but G10 has more advantages in comprehensive performance:

Compare phenolic board or bakelite: G10’s mechanical strength, moisture resistance and electrical properties are superior to these traditional materials.

Compare metals (like aluminum): G10 is an insulator, metal is a conductor. G10 is irreplaceable in scenarios where both insulation and structural support are required.

Compare engineering plastics (such as PEEK or nylon): While some engineering plastics perform better, G10 is more competitive on cost, stiffness and creep resistance.

In the field of electrical insulation, the rational application of existing mature materials is equally important. G10 epoxy board is a practical solution that combines fiberglass and epoxy resin through sophisticated technology and has balanced electrical, mechanical properties and environmental resistance.

Whether you are designing the next generation of electronic devices or maintaining high-power industrial systems, when you choose G10 epoxy board, you are choosing a proven, reliable solution that can lay the foundation for safety and performance in your project.

Looking for a reliable G10 epoxy board supplier for your project? Please contact us for high-quality materials and professional custom processing services.
