product description

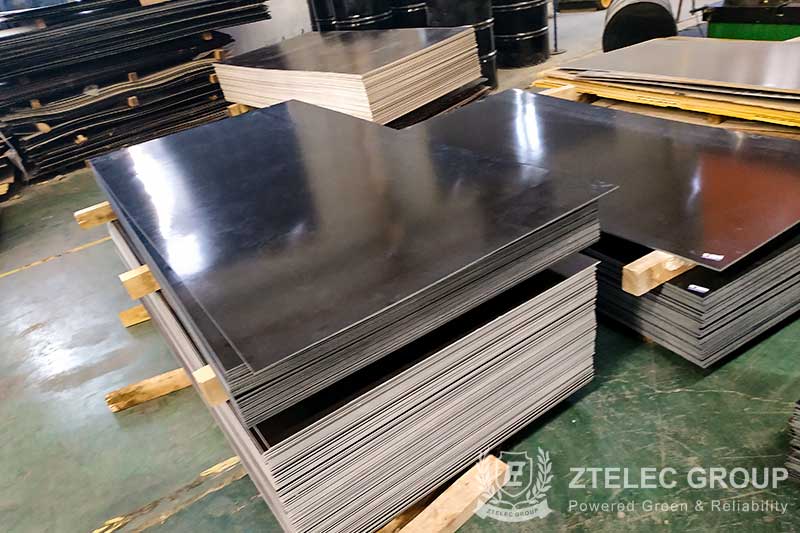

Description of Black Antistatic Fiberglass Board
Black anti-static fiberglass board is a kind of composite material made by compressing fiberglass cloth and anti-static resin with high mechanical strength. Its resistance value is 106-108Ω and it possesses stable anti-static performance, high mechanical strength, excellent processability, thermal and moisture resistance.
Application of Black Antistatic Fiberglass Board
Anti-static board possesses good anti-static effect that can be divided into local effect of product surface and overall effect of the whole product with equal anti-static value of every part, the former is suitable for making worktable, and the later is suitable for making moulds and fixtures and so on. Black anti-static fiberglass board can be widely used in the construction of factory building (semiconductor, LCD, electronics, optics and medicine, etc.), shelter of equipment in the clean room, spatial partition of clean room, clean equipment, observation window and equipment cover, electronic test fixture, etc.
Applicable industries: semiconductor industry, LCD industry, electronic equipment and microelectronics equipment industry, electronic and electrical industry, communication manufacturing industry, precision instruments, optical manufacturing, pharmaceutical industry and bioengineering industries and other industries.
Thickness：0.5～50mm Specification：1020×1220mm;1020×2040mm;1220×2440mm
Advantage of Black Antistatic Fiberglass Board
Black anti-static fiberglass board, produced by ZTelec Group taking high-quality fiberglass cloth and anti-static resin with high mechanical strength as raw materials, has excellent anti-static performance. ZTelec Group is equipped with advanced production equipment and full automatic production line and can meet the customers’ demands of mass production. This product has the advantages of reliable quality, uniform appearance and color, and small thickness tolerance with strict manufacturing technology. The mechanical and electrical properties of products are superior to the similar one of other companies. Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric and sold overseas such as European and American areas.
Property Parameter of Black Antistatic Fiberglass Board
| Number | Test Item | Unit | Index Value | Test Value |
| 1 | Thickness Tolerance | mm | ±0.3 | 4.1 |
| 2 | Density | g/m3 | 1.95-2.1 | 2.05 |
| 3 |
Flexural Strength at Perpendicular Lamination （Under Normal） |
MPa | ≥340 | 360 |
| 4 | Impact Strength at Parallel Lamination | KJ/m2 | ≥55 | 61 |
| （Simple Supported Beam） | ||||
| 5 | Dielectric Strength at Perpendicular Lamination（Transformer Oil at 90℃） | KV/mm | ≥14.2 | 16.2 |
| 6 | Breakdown Voltage at Parallel Lamination | KV | ≥40 | 43.6 |
| （Transformer Oil at 90℃） | ||||
| 7 | Dielectric Constant（50Hz） | - | ≤5.5 | 1.8 |
| 8 | Dielectric Loss Factor（50Hz） | - | ≤0.04 | 0.01 |
| 9 | Insulation Resistance after Immersion | Ω | ≥5.0×1010 | 6.0×1010 |
| 10 | Thermal Index | - | 155 | 155 |
| 11 | Flammability | - | HB40 | HB40 |
