product description

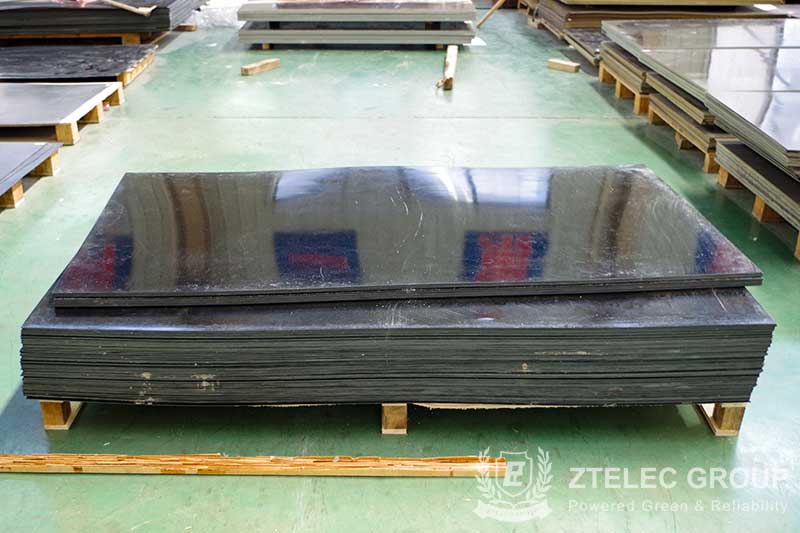

Description of Semiconductor Plate
3241 semiconductor laminated glass cloth board is a plateshape laminated product that made of electrical alkali-free glass cloth impregnated with epoxy phenolic anti-halo resin glue by baking and hot pressing. The product has semi-conductive properties, which is suitable for anti-halo materials in large motor slots and can be used as a material for wear-resistant structural parts at high temperatures.
Parameter of Semiconductor Plate
| NO | Index name | Unit | Index value |
| 1 | Appearance | —— | The surface should be flat, free of bubbles and wrinkles with a small amount of spots. The edges should be cut neatly, the end surface should be free of delamination and cracks. The appearance should be black. |
| 2 | Vertical layer bending strength | MPa | ≥340 （150℃）170 |
| 3 | Parallel layer impact strength（Simply supported beam method without gap） | KJ/m2 | ≥133 |
| 4 | Vertical layer electrical strength（90±2℃transformer oil） | MV/ m | 10-12 |
| 5 | Parallel layer direction withstand voltage（90±2℃transformer oil） | KV | ≥9 |
| 6 | Surface resistivity | Ω | 1.0×103-5.0×105 |
