Phase-Shifting Rectifier Adjustable Voltage Transformer

product description

Executive Standard of Phase-Shifting Rectifier Adjustable Voltage Transformer

International Electrotechnical Commission (IEC)Standard:

IEC 60076-1~5 《Power Transformer》

IEC 61378-1:1997 《Rectifier Transformer：Transformers for Industrial Application》

National and Industrial Standards:

JB/T 8636-1997 《Power Converter Transformer》

GB1094.11-2007 《Dry-Type Power Transformer》

GB1094.1-1996 《Power Transformer: General》

GB1094.2-1996 《Power Transformer: Temperature Rise》

Type and Meaning of Phase-Shifting Rectifier Adjustable Voltage Transformer

ZT(P) ZT—Rectifier Transformer for Frequency Converter (ZP:For Frequency Conversion Power Supply)

S Three Phase

口 Cooling Type(Natural Air Cooling Omitted，F-Forced Air Cooling)

G Dry-Type Power Transformer(Non-Encapsulated)

(口)- Insulation Class(B-S Class Insulation，H-H Class Insulation)

口/ Rated Capacity(KVA)

口 Voltage Level(KV)

Feature of Phase-Shifting Rectifier Adjustable Voltage Transformer

This series of products have the features of smooth waveform, low harmonic pollution, good heat dissipation, strong thermal impact resistance, high over-load capacity, low loss, low noise and easy maintenance. Worked as the isolated power supply in the high-voltage variable-frequency speed regulating device, this series of products can be matched with the high-voltage variable-frequency speed regulating device, so as to realize the multiple technology and effectively suppress the harmonic content.

Application of Phase-Shifting Rectifier Adjustable Voltage Transformer

It is suitable for electrical industry, petroleum, chemical industry, metallurgy, municipal water supply, waste water treatment, textile, paper making, pharmaceuticals, coal, cement, rolling mill (steel factory) and other industries.

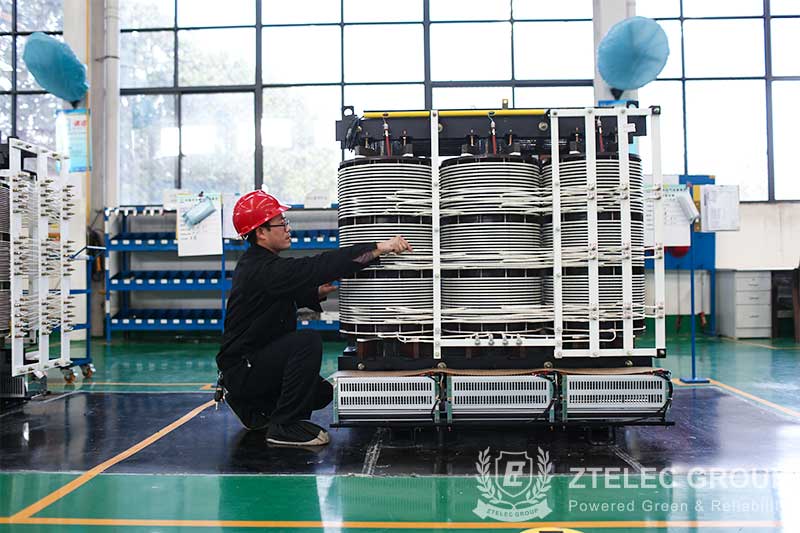

Structure of Phase-Shifting Rectifier Adjustable Voltage Transformer

a. The core material is made of high-quality cold-rolled silicon steel sheet, which is carefully laminated in full 45diagonally;

b. Insulation materials of transformer are H level with the 20-year service life time the same as transformers;

c. The structure of coil is non-encapsulated with excellent property of flame retardant;

d. The insulation materials on wires are with H class insulation. And the products have been painted with 3-proofings lacquer and cured under high temperature which all can strengthen the anti-short circuit ability;

e. The shell of transformer is made of high-quality steel sheet;

f. The inlet and outlet wires of transformer are generally connected from bottom. Cable holes are set on the base of transformer box, and a device is set to fix the cable.

Parameter of Phase-Shifting Rectifier Adjustable Voltage Transformer
