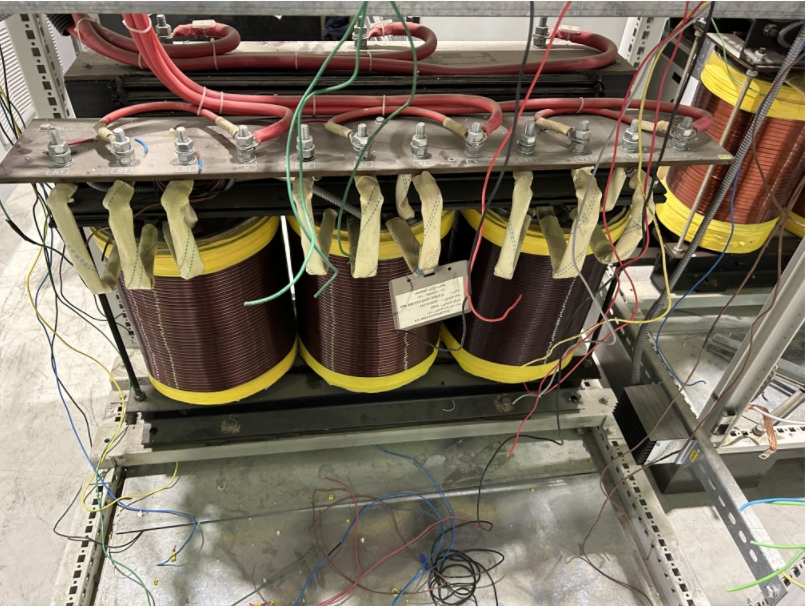

1.Overview

Our company can produce dry type phase-shift rectifier transformer high rated voltage up to 35 kV and capacity up to 15000kVA.The products are widely used in the field of petroleum,chemical,metallurgy,textile,coal,cement,rolling mill(steel mill)etc.

A phase-shift rectifier transformer is a type of transformer commonly used in phase-controlled rectifier circuits. Rectifiers are electronic devices that convert alternating current (AC) to direct current (DC). In a phase-shift rectifier, the transformer is designed to provide a phase shift between the primary and secondary windings. This phase shift allows for better control of the output voltage and current in the rectifier circuit.

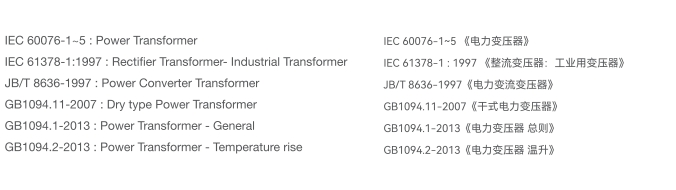

2.Implementation standards

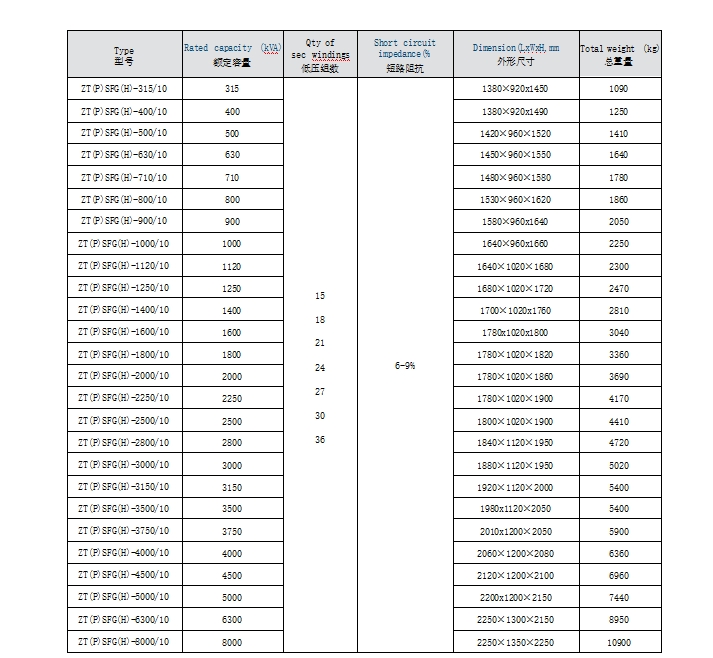

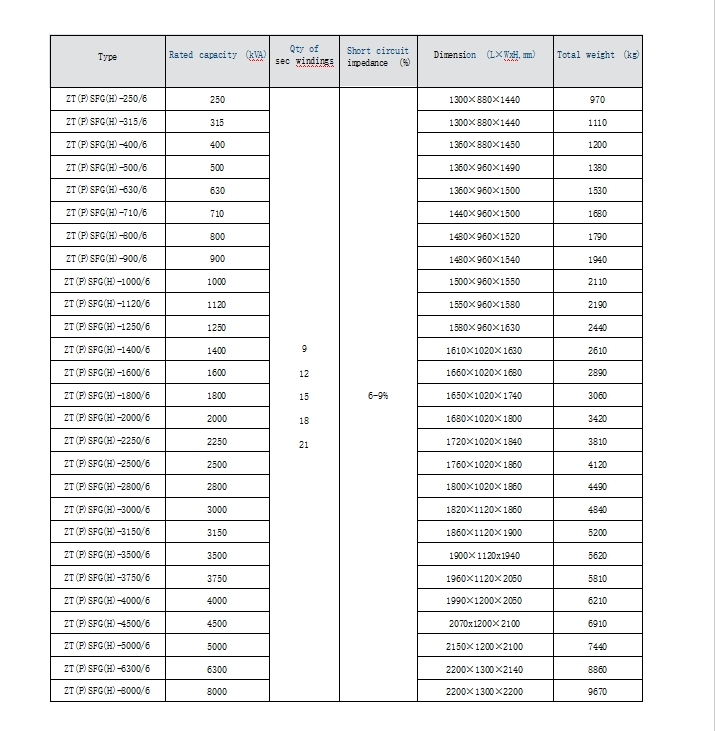

3.Type description

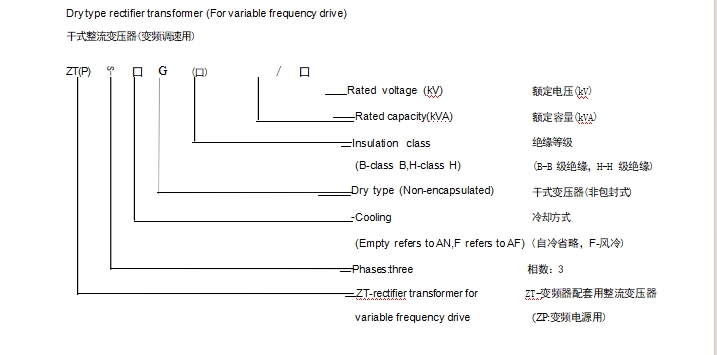

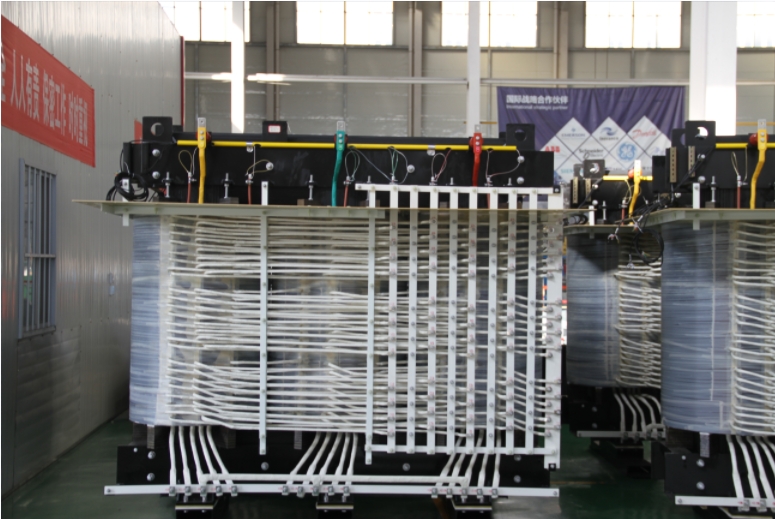

Dry type rectifier transformer (For variable frequency drive)

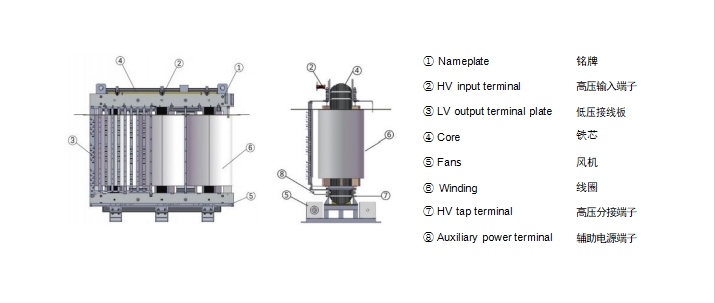

4.Configuration

5.Phase-shift rectifier transformer Performance and features

Performance:

Firing Angle Control: One of the primary performance features is the transformer's ability to control the firing angle of the rectifier. This allows precise regulation of the DC output, enabling flexibility in adjusting the power delivered to the load.

Improved Output Regulation: Phase-shift rectifier transformers enhance the regulation of the output voltage. By controlling the phase shift, the transformer enables a smoother transition of current from AC to DC, resulting in a more stable and regulated output.

Reduced Harmonic Distortion: These transformers contribute to reducing harmonic distortion in the output waveform. Harmonic distortion can be detrimental to the performance of electrical systems, and the phase-shift design helps mitigate these distortions.

Efficiency: The ability to control the firing angle and regulate the output voltage contributes to the overall efficiency of the rectifier circuit. Efficient energy conversion is crucial in various applications, including industrial processes and power systems.

Customization for Specific Applications: Performance can be optimized for specific applications. Engineers can design phase-shift rectifier transformers tailored to the requirements of particular systems, ensuring optimal performance in diverse settings.

Features:

Multi-Winding Configuration: Phase-shift rectifier transformers typically feature multiple secondary windings. These windings are strategically arranged to introduce the desired phase shift, allowing for precise control.

Robust Construction: To ensure reliable performance, these transformers are built with high-quality materials and robust construction. This is essential for applications with varying loads and operating conditions.

Compatibility with Control Systems: The transformers are designed to seamlessly integrate with control systems. This compatibility facilitates the adjustment of the firing angle and other parameters, enhancing the transformer's performance in a controlled rectifier setup.

Adaptability to Variable Loads: Phase-shift rectifier transformers can adapt to variable loads while maintaining stable output characteristics. This feature is particularly valuable in systems where the load requirements may fluctuate.

Advanced Cooling Systems: To manage heat generated during operation, these transformers often incorporate advanced cooling systems. Efficient cooling ensures that the transformer operates within its specified temperature limits, contributing to longevity and reliability.

Compliance with Standards: High-quality phase-shift rectifier transformers comply with industry standards and regulations. Compliance ensures that the transformers meet safety and performance requirements.
