oil immersed type distribution transformer

product description

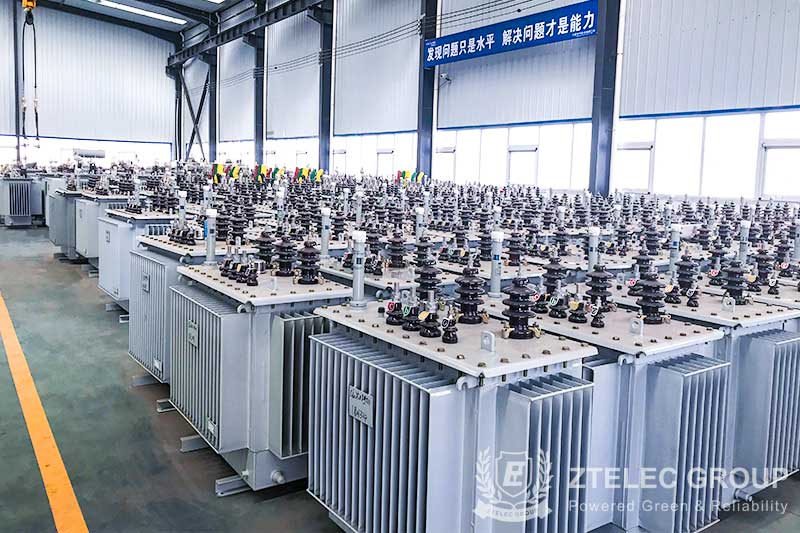

Feature of Fully Sealed Oil-Immersed Distribution Transformer

A new insulating structure is used in the body of the 10KV series of fully sealed oil-immersed distribution transformer by ZTelec Group, significantly improving the ability to withstand short-circuits. The iron core is made of high-quality cold-rolled silicon steel sheet, and the winding is manufactured in the structure of multi-layer cylinder or foil. All of fasteners are treated with special anti-loose technology. The product has the features of high efficiency and low loss, which can save a lot of power consumption and operating costs, and also has significant social benefits. The 10KV series of fully sealed oil-immersed distribution transformer are the high-tech products promoted by China.

Technical Requirement of Fully Sealed Oil-Immersed Distribution Transformer

Environment: -25℃~40℃

Altitude(m): 100 meters or less

Insulation Class: A Class

Frequency(Hz): 50

Tap Range: ±5%、±2*2.5%

Voltage Regulating Mode: No-load Voltage Regulating

Cooling Type:ONAN

Technical Parameter of Fully Sealed Oil-Immersed Distribution Transformer

Executive Standard: IEC60076 & National Standard

HV:11/10.5/10/6.6/6.3/6 LV:0.4/0.415
Capacity	Connection Group	No-Load Loss W	On-Load Loss W		No-Load Current %	Short-Circuit Impedance %
			On-Load Loss W
			Y-Connection	D-Connection
30	Yyn0 Dyn11 Yzn11	100	600	630	1.5	4
50		130	870	910	1.3	4
80		180	1250	1310	1.2	4
100		200	1500	1580	1.1	4
160		280	2200	2310	1	4
200		340	2600	2730	1	4
250		400	3050	3200	0.9	4
315		480	3650	3830	0.9	4
400		570	4300	4520	0.8	4
500		680	5150	5410	0.8	4
630	Yyn0 Dyn11	810	6200	6200	0.6	4.5
800		980	7500	7500	0.6	4.5
1000		1150	10300	10300	0.6	4.5
1250		1360	12000	12000	0.5	4.5
1600		1640	14500	14500	0.5	4.5
2000		1940	18300	18300	0.4	5
2500		2290	21200	21200	0.4	5
