Semiconductor Sheet Product



Material Details

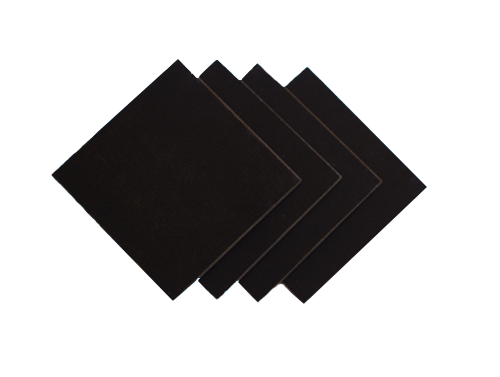

Grade: Semiconductor Sheet. (Type: Glass Based Laminate)

Description: Epoxy Glass. Superior Epoxy Glass Laminate.

Comments: A high strength Class B rigid insulation with flame resistant. Made of alkali-free glass fiber cloth for electricians impregnated with carbon black epoxy phenolic anti-halo resin by hot pressing. As a material for non-metallic wear-resistant structural parts.



Specifications:

Body Colour: Black

Cover Colour: Black

Standard Finish:

Size: 1020*2040mm, Thickness: 0.5-100.0mm

Typical Applications

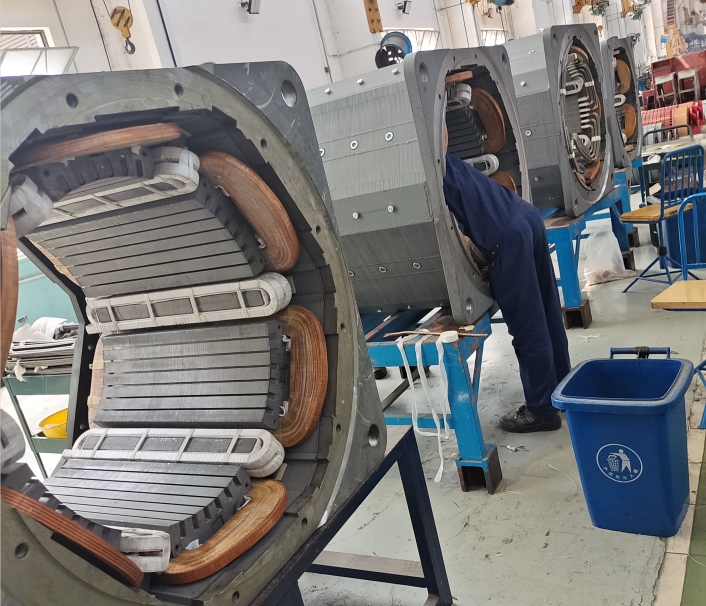

motor slots wear-resistant structural parts

General Properties



Property Unit of measure Typical Value

Density gc/m3 1.75-1.9

Water Absorption (5mm) Mg 64-193



Electrical Properties



Property Unit of measure Typical Value

Electrical Strength ⊥ kV/mm， 1mm ≥8.0

Electrical Strength ∥ kV ≥35

Dielectric constant (1MHz) ≤5.5

Volume resistivity (Nomal) Ω·m ≥1.0*105

Mechanical Properties

Property Unit of measure Typical Value

Benging Strength MPa ≥350

Share Strength MPa ≥30

Compressive Strength ⊥ MPa ≥350

Impact Strength ∥ kJ/m2 ≥50

Thermal Properties

Property Unit of measure Typical Value

Thermal Charactersitices ℃ 130

Notes

Disclaimer: The above values are based upon routine test data and do not form the basis of a supply contract. These

products may be used in a diverse range of applications and whilst every effort is made to ensure the information in this

data sheet is accurate, it must be stressed that it is the user's responsibility to ensure suitability for the intended end use.

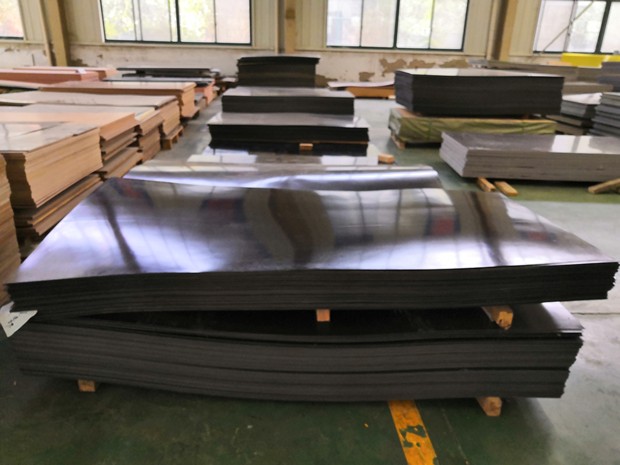

Stroage: Wrapped with packaging film and packed in pallet; horizontally placeed in dry and clean room at room temperature; keep it away from moisture and fire. The storage period is 12 months.
