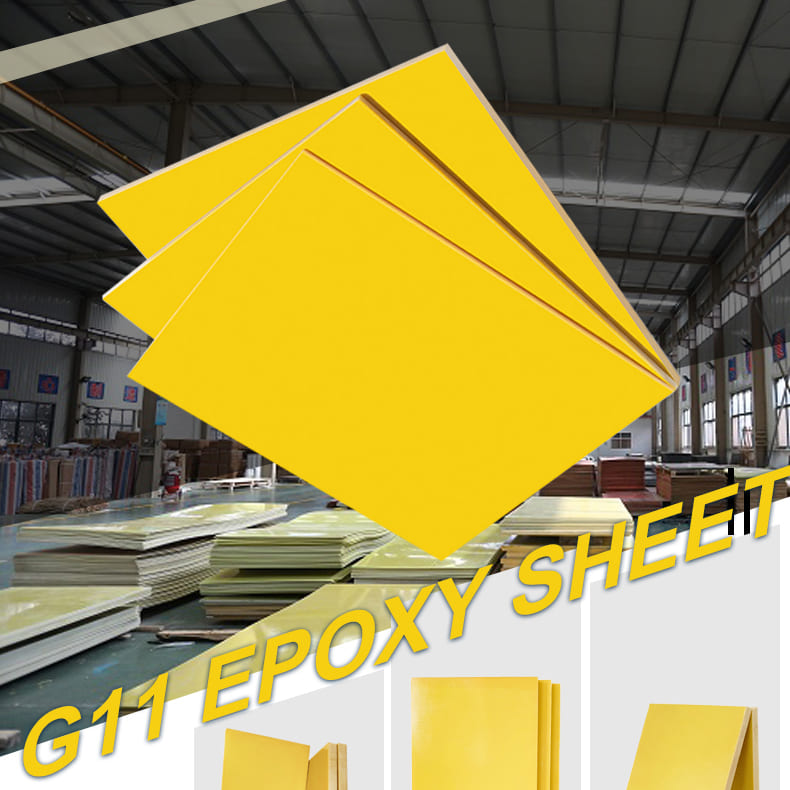

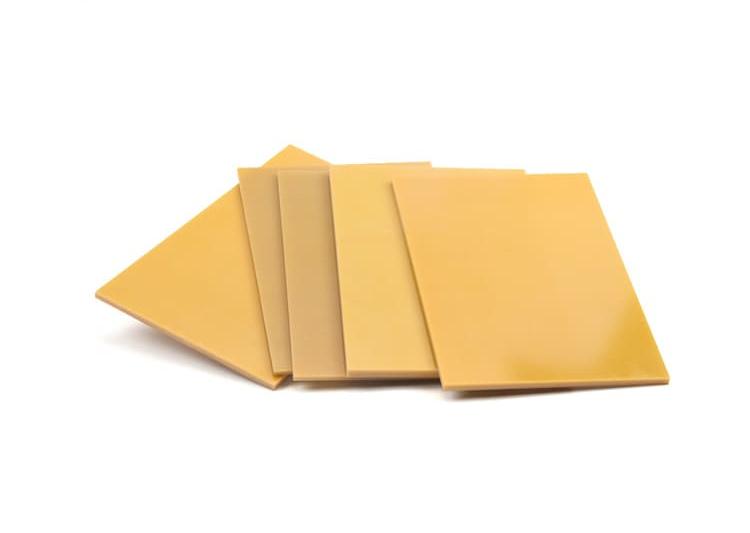

G11 Insulation Sheet Product Data
Material Details

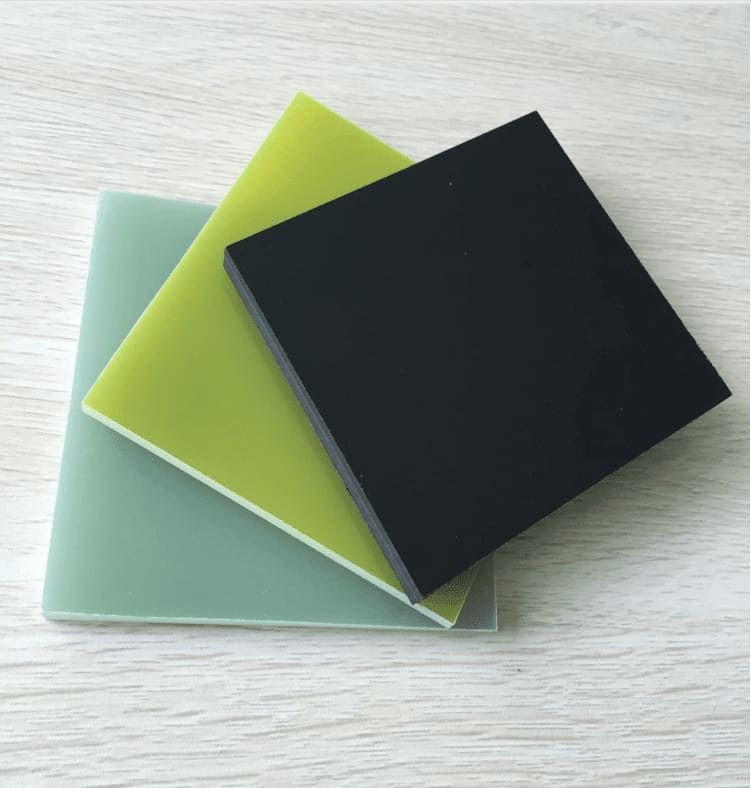

Body Colour: Yellow/Water Green
Cover Colour: Yellow/Water Green
Size: 1020mm*1220mm/1220mm*2040mm/1220mm*2440mm, Thickness: 0.5-100.0mm
Grade: G11. (Type: Glass Based Laminates)
Description: Epoxy Glass. Superior Epoxy Glass Laminate.
Comments: A high strength Class F rigid insulation with many uses ranging from slot wedges in small motors to major components in turbo-alternators and electronic applications. G10 has excellent moisture resistance and heat resistance, high mechianical strength at room temperature, still strong mechanical property at high temperature of 155℃, and excellent electrical properties in dry and wet state.
Key Features
1.Excellent moisture resistance and heat resistance
2.High mechanical strength at room temperature and still have strong mechanical properties at high temperature of 155℃
3.Excellent electrical properties in dry and wet state
Specifications: IEC 60893-3:2003, EPGC 203.
Typical Applications
Slot Wedges
Terminal Boards and Tag Strips
High-Voltage Switches
Planetary Gears
Machine parts
Bolt Insulation
FPC Reinforcing Sheets
Electronic Insulation Fields
Transformer baffles
Electromechanical Components
Wiring Boards
Power Distribution Cabinets
General Properties
Property Unit of measure Typical Value
Density g/cm3 1.95-2.03
Water Absorption (5mm) % ≥0.05
Flame Retardant
UL94 HB
Electrical Properties
Property Unit of measure Typical Value
Electrical Strength ⊥ kV/mm， thickness<3mm ≥15
Electrical Strength ∥ kV ≥50
Tracking Resistance PTI ≥200
Mechanical Properties
Property Unit of measure Typical Value
Benging Strength MPa ≥450
Tensile Strength MPa ≥350
Compressive Strength ⊥ MPa ≥450
Modulus Of Elastricity MPa ≥24000
Impact Strength ∥ kJ/m2 ≥33
Thermal Properties
Property Unit of measure Typical Value
Thermal Charactersitices ℃ 155
G11 Insulation Partners and product quality
Selected Reinforced Materials (Strategic cooperation with Jushi amd Sinoma,100% electronic glass fiber cloth)
Fully Automatic Production Line (6 separate coating lines for specific products and 10 automatic hot pressing machines to ensure stable product quality and high processing capacity.)
Strict Quality Control (Strictly control each process and implement the concept of Total Quality Management（TQM).We have obtained ISO9001,ISO14001 and UL certifications.)
Customized Service (According to your requirements, we process and customize products on time and on quality.)
