product description

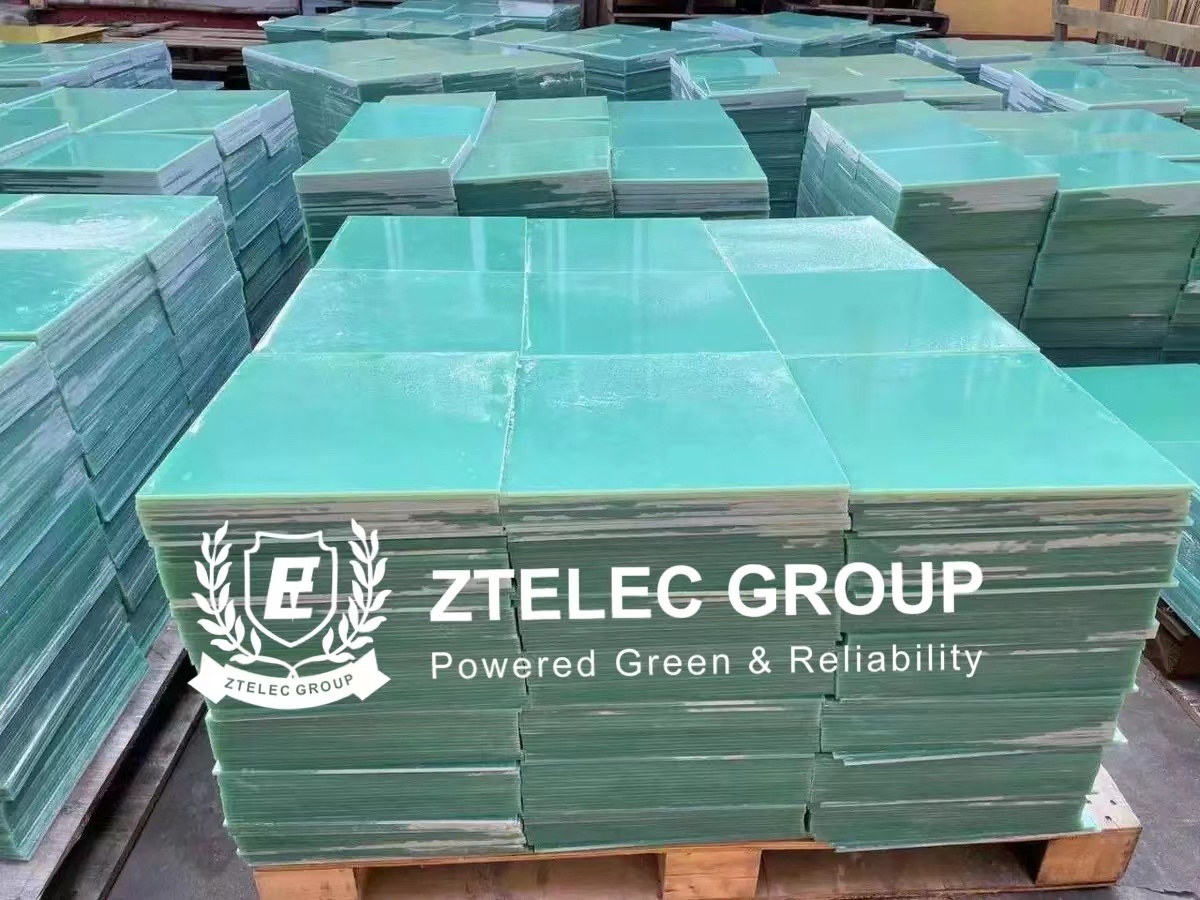

Application of G10 Epoxy Fiberglass Laminates
Product
· G10 insulation sheet
· EPGC 201
Ruglar Size
· 1220*1020/1020*1020mm · 1220*2040/1020*2040mm
· 1220*2440mm
Flame Resistance
UL94-N/A(HB)
Standard
· GB/T 1303.2-2009
· IEC 60893-2:2003
Colour
· Yellow
· Green
· Black
Heat Resistance
Class B
Raw Material
Adhesive / Epoxy resin
Reinforcing material / Electronic grade fiberglass cloth
Certificate Available
UL□ ROHS ☑ REACH □ MSDS □ CEMT ☑
Outgoing Inspection Report ☑
Description of G10 Epoxy Fiberglass Laminates
Product Introduction
A glass fabric combined with epoxy resin, this product offers a combination of excellent electrical characteristics and superior physical properties.
The product meets NEMA G-10 requirements and is used for applications requiring structural support and insulation properties, and is widely used in motors, transformers, planetary gears, FPC reinforcing sheets, high-voltage switches, power distribution cabinets, and electronic
insulation fields.
Characteristic of G10 Epoxy Fiberglass Laminates
Product Characteristics
· Excellent moisture resistance and heat resistance;
· Excellent machinability at room temperature;
· Excellent electrical properties in dry and wet states.

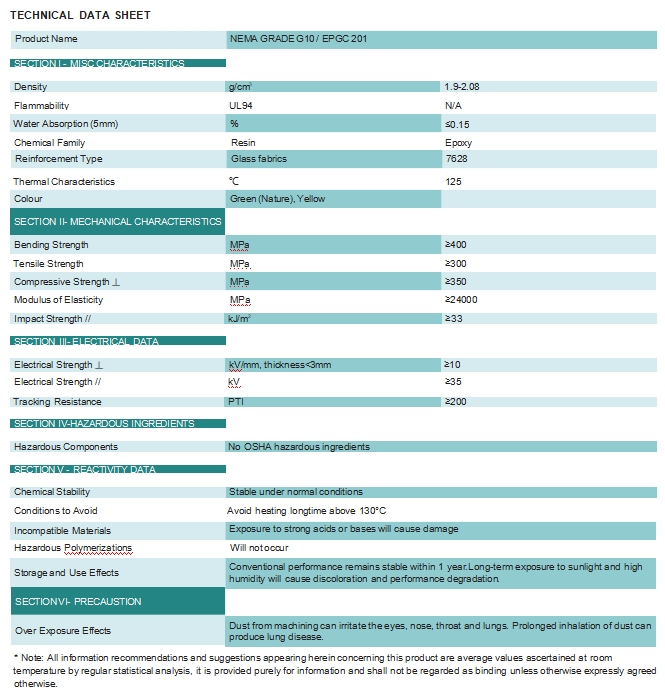

Technical data of G10 Epoxy Fiberglass Laminates

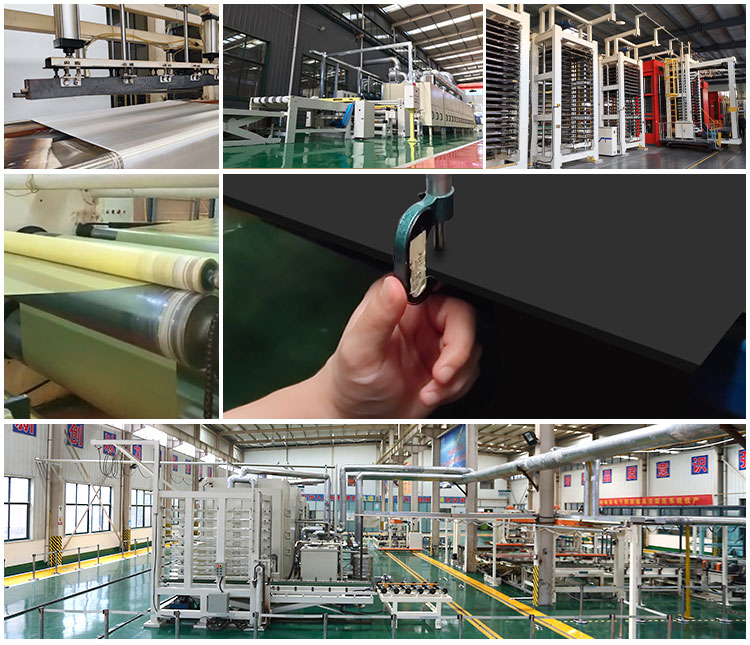

G10 epoxy fiberglass laminate insulation material factory
