Product introduction

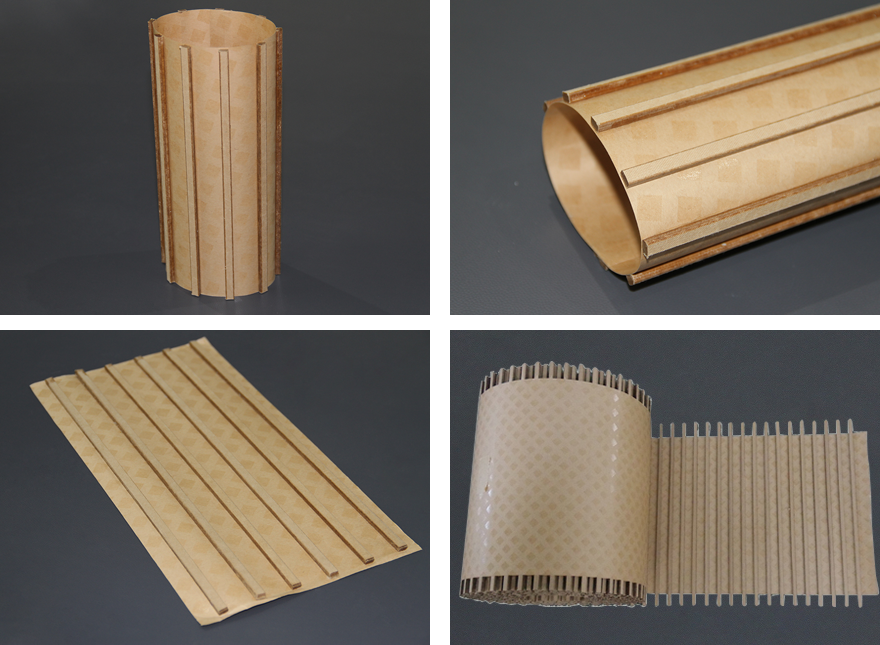

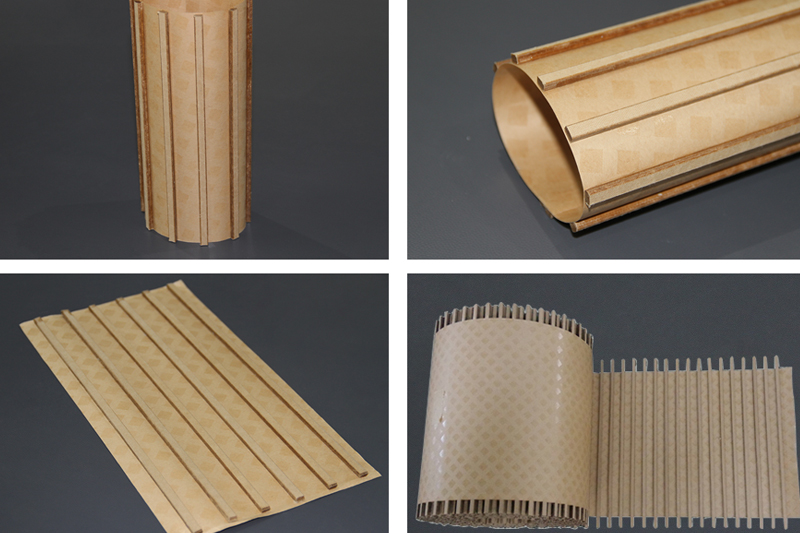

Oil strut belt for transformer is made of electrical board in the shape of stripe adhered to DDP(Diamond Dotted Insulating Paper).It can be combined closely with transformer coil and makes coil possess more excellent mechanical and electrical propeties.It is widely used in oil-immersed transformers.
Key Features
Type: Insulation Paper, Insulation Materials
Thickness: 0.1-0.5mm
Desity: 1.10-1.15g/cm3
Width: 980mm
1.High Purity and oil absorption.
2.Good compatibility with liquid dielectrics strength.
3.The combination with transformer coil is very firm, also can avoiding the traditional variability and easy displacement of corrugated cardboard, which make this coil has more excellent mechanical and electrical properties and widely used in oil-immersed transformers.
Oil strut belt for transformer product parameters:
| No. | Thickness | mm | 0.08 | 0.13 | 0.17 | 0.20 | 0.25 | 0.30 |
| 2 | Thickness Tolerance | % | 6.5 | |||||
| 3 | Density | g/cm3 | ≥0.85 | |||||
| 4 | Tensile Strength | MD | KN/m | 7.5 | ||||
| CD | 3.7 | |||||||
| 5 | Tear Strength | m·N | 500 | 1000 | 1500 | 2000 | ||
| 6 | Dielectric Breakdown | Kv | 0.6 | 0.9 | 1.2 | 2.2 | 2.75 | 3.3 |
| 7 | Aqueous Extract | – | 6.8~8.5 | |||||
| 8 | Bond Strength | Kpa | 450 | |||||
| 9 | Ash Content | % | 1.0 | |||||

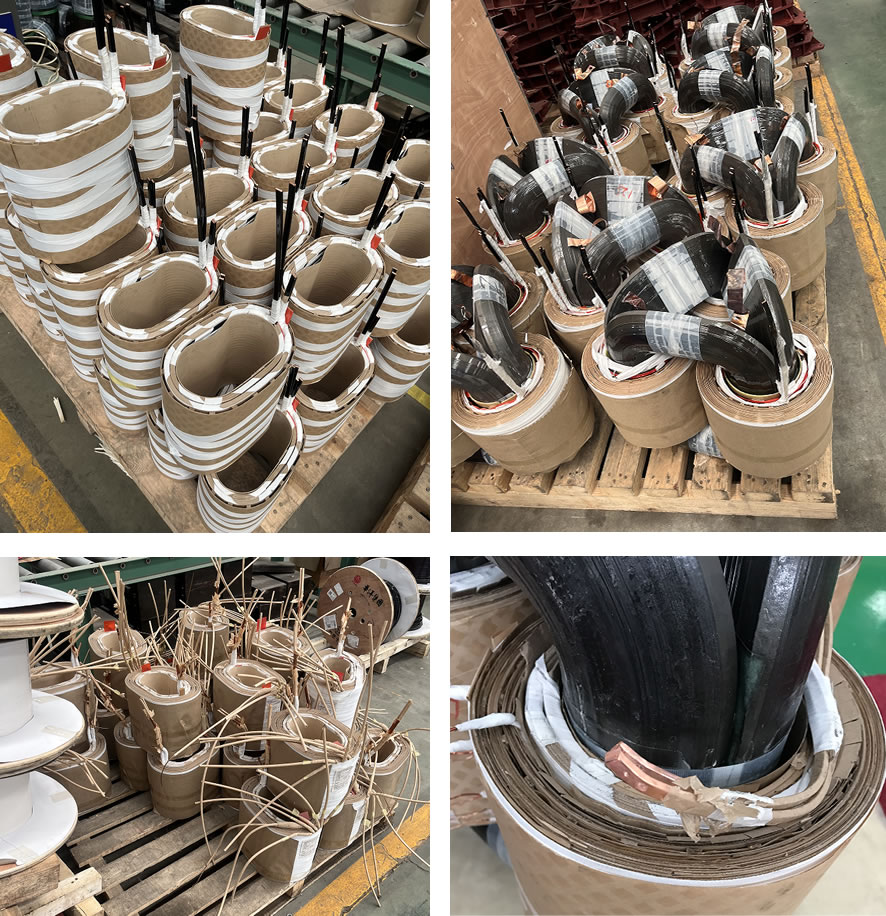

Oil strut belt for transformer application:
Duct spacing which oil strut belt for transformer can be used for main and cooling ducts in oil filled distribution transformers.
Oil strut belt for transformer manufacturing process:
1. Bonding DDP and the strip of electrical board with adhesive on a certain distance.
2. double surface DDP paper (top quality)
3. single surface DDP paper
4. kraft paper with duct strip
Packing and shipping:
Oil strut belt for transformer is wrapped by proctective film;
Oil strut belt for transformer is packed by standard import and export cartons or iron pallets.
