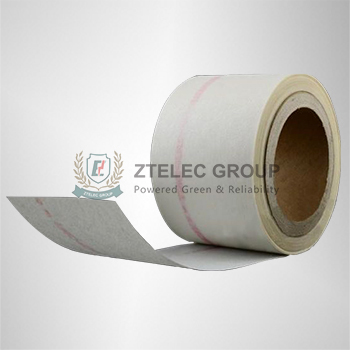

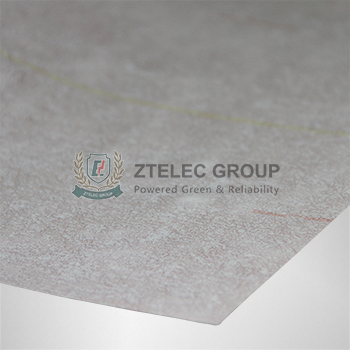

1. Polyester Film Insulation Paper Soft Composite Material(fish paper composite)6520 F-PET/P-C
Description:
This product is made of both green electric kraft paper and polyester film adhered together by heating adhesive. It has good mechanical strength, high electrical strength, smooth surface and toughness. It is widely used for slot insulation,gasket insulation and inter insulation for electrical machinery and appliances.

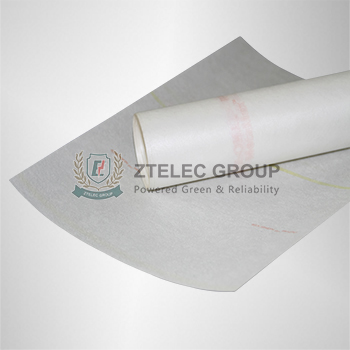

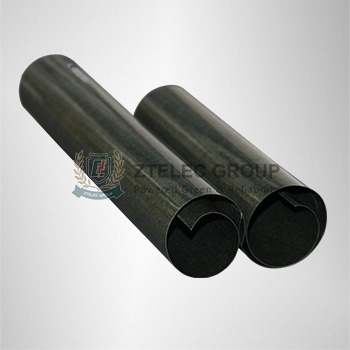

2. DMD P-PET/F-PET/P-PET 6630 Class B /6641 Class F
Description:
This product is a kind of composite product that is made of two layers of polyester fiber non-woven cloth adhered to one layer of polyester film in between by heating adhesive. It is widely used for slot and gasket insulation of motor, and layer insulation of transformer.
Standard Specification：
Thickness：0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm) Width: 980(mm)
Package&Storage: Packed in rolls and in paper carton. Store in dry and clean room at room temperature. Keep away from fire and moisture. The storage life is 12 months.

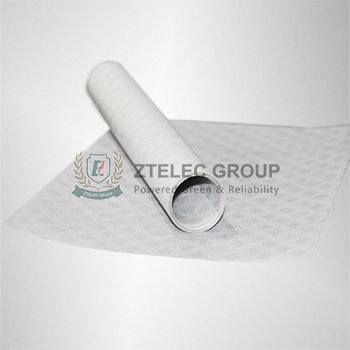

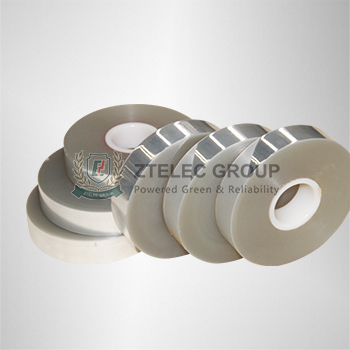

3.Diamond Dotted DMD Class B/F
Description (Standard: JB/T10714-2007):
This product is made of DMD coated by modified epoxy resin in diamond shape. Compared with diamond dotted paper, it has higher mechanical and electric properties strength. It is widely used for layer insulation of transformer. The gap between dotted adhesive is helpful for the emission of resin air in the process of coil drying so as to form integral insulation coating, in this way, it is able to prevent corona and partial discharge effectively. The product can be also used as cable shielding isolation layer and anti-corona material of high-voltage electric motors and appliances.
Standard Specification：Thickness：0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm) Width: 980(mm)
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from sunlight and fire. The storage period is 12 months.

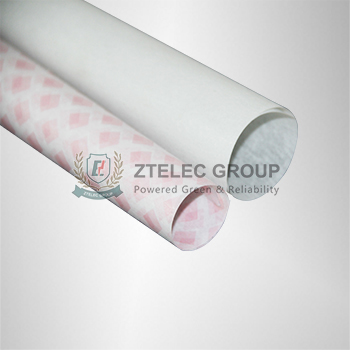

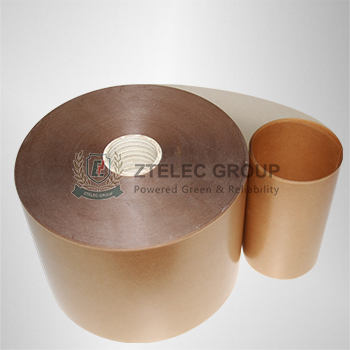

4. DMD Epoxy Prepreg Material Class F
Description:
This product is made of DMD coated with F-class modified epoxy resin in semi-solidified state by heating. It can quickly solidify at a certain temperature and adhere firmly to copper foil, and thus form insulation structure layer with much lower shrinkage. It is widely used for layer insulation of dry-type transformer coil, slot insulation and phase insulation of Class F motor.
Standard Specification：
Thickness：0.15/0.18/0.20/0.25/0.30(mm) Width: 980(mm)

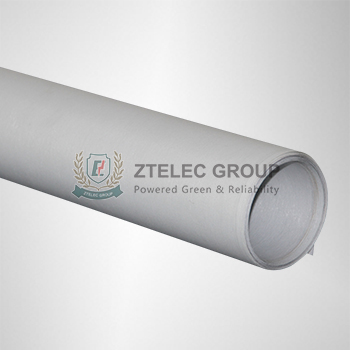

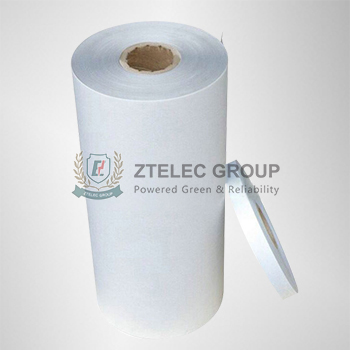

5. NMN 6640 P-PAa/F-PET/P-PAa
Description:
This product is three- layer composite material with NOMEX paper adhered to both sides of polyester film. It has excellent heat resistance and tear resistance by its paper and good dielectric strength and mechanical strength by its film. The product is used as insulation material for F/H class electrical machines.
6. NHN 6650 P-PAa/F-PI/P-PAa
Description:
This product is a kind of three-layer composite material made of NOMEX paper that adhered to polyimide film on its both sides. The product not only has excellent dielectric and mechanical strength by its polyimide film, but also has great tear resistance and varnish absorption by its NOMEX Amide paper, so it is a reliable insulation material at Class-H(180℃).
Technical Data
Note: The data in the above table only represents typical or average data, just for reference in practical application. It does not bear any responsibility for the use of the product or related legal liability.
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from fire and sunlight. The storage period is 12 months.

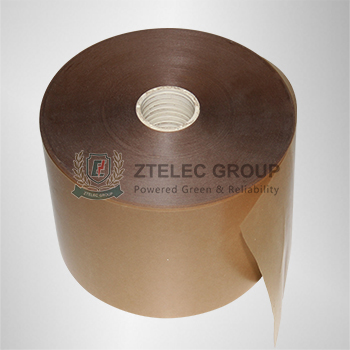

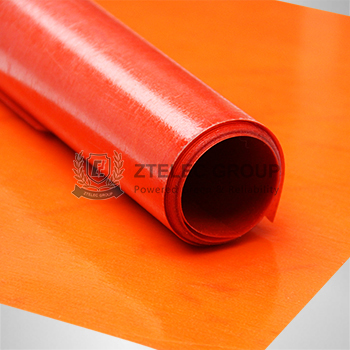

7. PMP Capacitor Paper P-C/F-PET/P-C
Description:
This product is a kind of composite material made of two-layer of electric insulation fiber paper adhered to one-layer of polyester film in between. It has excellent dielectric and mechanical properties. It is mainly used for casting voltage mutual inductor, special E-class electrical motor and other electrical equipment.
Technical Data
Note: The data in the above table only represents typical or average data, just for reference in practical application. It does not bear any responsibility for the use of the product or related legal liability.
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from fire and sunlight.The storage period is 12 months.

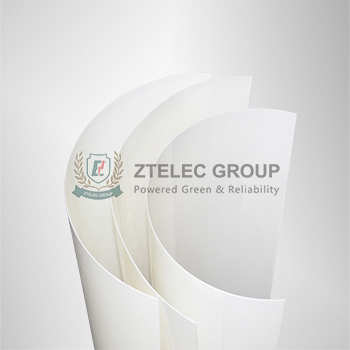

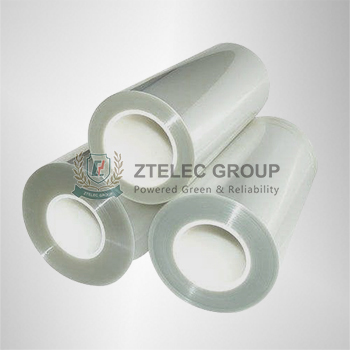

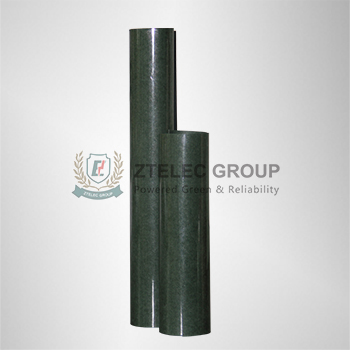

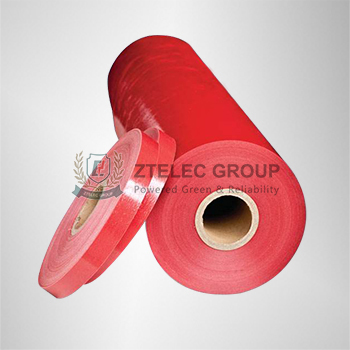

8. Polyester Film Composite Film F-PET/F-PET/F-PET
Description:
This production is a kind of composite material made of 2 or more layers of polyester film adhered together by F-class adhesive. It has good dielectric and mechanical properties. And it is mainly used for sleeve tubes between HV and LV coils of dry-type transformers.
Standard Width: 1000mm, 1200mm, 1400mm, 1600mm. Customized size is available.
Technical Data
Note: The data in the above table only represents typical or average data, just for reference in practical application. It does not bear any responsibility for the use of the product or related legal liability.
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from fire and sunlight. The storage period is 12 months.
Description:
This product is made of both green electric kraft paper and polyester film adhered together by heating adhesive. It has good mechanical strength, high electrical strength, smooth surface and toughness. It is widely used for slot insulation,gasket insulation and inter insulation for electrical machinery and appliances.
2. DMD P-PET/F-PET/P-PET 6630 Class B /6641 Class F
Description:
This product is a kind of composite product that is made of two layers of polyester fiber non-woven cloth adhered to one layer of polyester film in between by heating adhesive. It is widely used for slot and gasket insulation of motor, and layer insulation of transformer.
Standard Specification：
Thickness：0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm) Width: 980(mm)
Technical Data
Note：The data in the above table only represents typical or average data, just for reference in practical application. It does not bear any responsibility for the use of the product or related legal liability.| GB/T5591.3-2008 IEC60626-3:2002 | ||||||||||||
| No. | Item | Unit | Value | |||||||||
| 1 | Item Thickness | 6630/6641 | mm | 0.13 | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.30 | 0.35 | |
| 2 | Thickness Tolerance | 6630/6641 | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.03 | ±0.03 | |
| 3 | basic weight | 6630/6641 | g/㎡ | 130±15 | 145±20 | 180±20 | 220±20 | 255±30 | 285±30 | 350±30 | 425±40 | |
| 4 | Film Nominal Thickness | 6630/6641 | um | 36 | 50 | 75 | 100 | 125 | 150 | 188 | 250 | |
| 5 | Tensile Strength | Horizontal direction | 6630/6641 | N/10mm | ≥60 | ≥90 | ≥120 | ≥140 | ≥180 | ≥190 | ≥270 | ≥320 |
| Vertical direction | ≥40 | ≥80 | ≥105 | ≥120 | ≥150 | ≥170 | ≥200 | ≥300 | ||||
| 6 | Elongation | Horizontal direction | 6630/6641 | % | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | ≥5 | ≥5 |
| Vertical direction | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥5 | ≥5 | ||||
| 7 | Breakdown Voltage | No Bended | 6630 | kv | ≥4.0 | ≥6.0 | ≥7.0 | ≥9.0 | ≥10 | ≥12 | ≥15 | ≥18 |
| 6641 | ≥5.0 | ≥7.0 | ≥8.0 | ≥10 | ≥11 | ≥13 | ≥16 | ≥19 | ||||
| Bended | 6630 | ≥3.0 | ≥5.0 | ≥6.0 | ≥8.0 | ≥9.0 | ≥11 | ≥13 | ≥18 | |||
| 6641 | ≥3.5.0 | ≥6.0 | ≥7.0 | ≥9.0 | ≥10 | ≥11 | ≥14 | ≥18 | ||||
| 8 | Temperature Index | 6630/6641 | - | 130(6630) 1555(6640) | ||||||||
| 9 | Bonding Strength in normal temperature | 6630/6641 | - | No layered | ||||||||
| 10 | Bonding Strength in hot temperature | 6630/6641 | - | 6630(130±2℃),6641(155±2℃),10min non layered ,non bubbling,non adhesive-flowing | ||||||||
Package&Storage: Packed in rolls and in paper carton. Store in dry and clean room at room temperature. Keep away from fire and moisture. The storage life is 12 months.
3.Diamond Dotted DMD Class B/F
Description (Standard: JB/T10714-2007):
This product is made of DMD coated by modified epoxy resin in diamond shape. Compared with diamond dotted paper, it has higher mechanical and electric properties strength. It is widely used for layer insulation of transformer. The gap between dotted adhesive is helpful for the emission of resin air in the process of coil drying so as to form integral insulation coating, in this way, it is able to prevent corona and partial discharge effectively. The product can be also used as cable shielding isolation layer and anti-corona material of high-voltage electric motors and appliances.
Standard Specification：Thickness：0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm) Width: 980(mm)
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from sunlight and fire. The storage period is 12 months.
4. DMD Epoxy Prepreg Material Class F
Description:
This product is made of DMD coated with F-class modified epoxy resin in semi-solidified state by heating. It can quickly solidify at a certain temperature and adhere firmly to copper foil, and thus form insulation structure layer with much lower shrinkage. It is widely used for layer insulation of dry-type transformer coil, slot insulation and phase insulation of Class F motor.
Standard Specification：
Thickness：0.15/0.18/0.20/0.25/0.30(mm) Width: 980(mm)
5. NMN 6640 P-PAa/F-PET/P-PAa
Description:
This product is three- layer composite material with NOMEX paper adhered to both sides of polyester film. It has excellent heat resistance and tear resistance by its paper and good dielectric strength and mechanical strength by its film. The product is used as insulation material for F/H class electrical machines.
6. NHN 6650 P-PAa/F-PI/P-PAa
Description:
This product is a kind of three-layer composite material made of NOMEX paper that adhered to polyimide film on its both sides. The product not only has excellent dielectric and mechanical strength by its polyimide film, but also has great tear resistance and varnish absorption by its NOMEX Amide paper, so it is a reliable insulation material at Class-H(180℃).
Technical Data
| Standard：GB/T5591.3-2008 | NMN | NHN | NMN | NHN | NMN | NHN | NMN | NHN | NMN | NHN | NMN | NHN | ||
| Standard Thickness | mm | 0.15 | 0.17 | 0.2 | 0.25 | 0.3 | 0.35 | |||||||
| Thickness Tolerance | ±mm | 0.02 | 0.03 | |||||||||||
| Basic weight | g/m2 | 150 | 140 | 170 | 170 | 210 | 190 | 280 | 250 | 350 | 300 | 440 | 350 | |
| Tensile Strength | MD | N/10mm | ≥150 | ≥140 | ≥160 | ≥160 | ≥170 | ≥160 | ≥220 | ≥200 | ≥260 | ≥270 | ≥300 | ≥300 |
| MD After Bending | ≥80 | ≥70 | ≥90 | ≥90 | ≥100 | ≥90 | ≥130 | ≥160 | ≥200 | ≥140 | ≥180 | ≥180 | ||
| TD | ≥90 | ≥80 | ≥90 | ≥90 | ≥100 | ≥100 | ≥150 | ≥180 | ≥200 | ≥150 | ≥250 | ≥260 | ||
| TD After Bending | ≥70 | ≥50 | ≥70 | ≥70 | ≥90 | ≥60 | ≥120 | ≥100 | ≥150 | ≥90 | ≥180 | ≥130 | ||
| Elongation | MD | % | ≥15 | ≥15 | ≥15 | ≥17 | ≥15 | ≥15 | ≥20 | ≥17 | ≥20 | ≥15 | ≥20 | ≥17 |
| TD | ≥20 | ≥15 | ≥20 | ≥17 | ≥20 | ≥15 | ≥20 | ≥17 | ≥25 | ≥15 | ≥25 | ≥17 | ||
| Breakdown Voltage | No bending | KV | ≥7.0 | ≥7.0 | ≥8.0 | ≥9.0 | ≥11.0 | ≥10.0 | ≥13.0 | ≥10.0 | ≥15.0 | ≥10.0 | ≥20.0 | ≥10.0 |
| After Bending | ≥6.0 | ≥6.0 | ≥7.0 | ≥8.0 | ≥9.0 | ≥8.0 | ≥12.0 | ≥8.0 | ≥13.0 | ≥8.0 | ≥16.0 | ≥8.0 | ||
| Adhesion | As received | - | No Delamination | |||||||||||
| 180±2℃/10min | - | No Delaminating, Blister or Gummosis | ||||||||||||
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from fire and sunlight. The storage period is 12 months.
7. PMP Capacitor Paper P-C/F-PET/P-C
Description:
This product is a kind of composite material made of two-layer of electric insulation fiber paper adhered to one-layer of polyester film in between. It has excellent dielectric and mechanical properties. It is mainly used for casting voltage mutual inductor, special E-class electrical motor and other electrical equipment.
Technical Data
| No. | Item | Unit | Value | ||
| 1 | Nominal Thickness | mm | 0.05 | 0.075 | 0.1 |
| 2 | Thickness Tolerance | mm | ±0.005 | ±0.007 | ±0.01 |
| 3 | Grammage & Deviation | g/㎡ | 65±7 | 90±9 | 140±14 |
| 4 | Tensile Strength(MD) | N/10mm | ≥50 | ≥70 | ≥100 |
| 5 | Breakdown Voltage | KV | ≥5 | ≥7 | ≥10 |
| 6 | Normal Bonding Strength | --- | No Delamination | ||
| 7 | Thermal Bonding Strength | 130±2℃/10min | No Delaminating, Blister or Gummosis | ||
| 8 | Shrinkage | % | ≤3 | ||
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from fire and sunlight.The storage period is 12 months.
8. Polyester Film Composite Film F-PET/F-PET/F-PET
Description:
This production is a kind of composite material made of 2 or more layers of polyester film adhered together by F-class adhesive. It has good dielectric and mechanical properties. And it is mainly used for sleeve tubes between HV and LV coils of dry-type transformers.
Standard Width: 1000mm, 1200mm, 1400mm, 1600mm. Customized size is available.
Technical Data
| Standard：GB/T5591.3-2008,IEC60626-3:2002 | |||||
| NO. | Performance | Unit | Value | ||
| 1 | Thickness | mm | 0.5 | 1.1 | 1.4 |
| 2 | Thickness Tolerance | mm | ±0.045 | ±0.11 | ±0.14 |
| 3 | Appearance density | g/m2 | 700±70 | 1480±148 | 2000±220 |
| 4 | Breakdown Voltage | KV | ≥25 | ≥30 | ≥35 |
| 5 | Monolayer Film Thickness | μm | 250 | 350 | 350 |
Package&Storage: Packed in rolls and in paper carton. Store at room temperature. Keep away from fire and sunlight. The storage period is 12 months.
