What are the main factors affecting the production cost of transformers?

What are the main factors affecting the production cost of transformers?

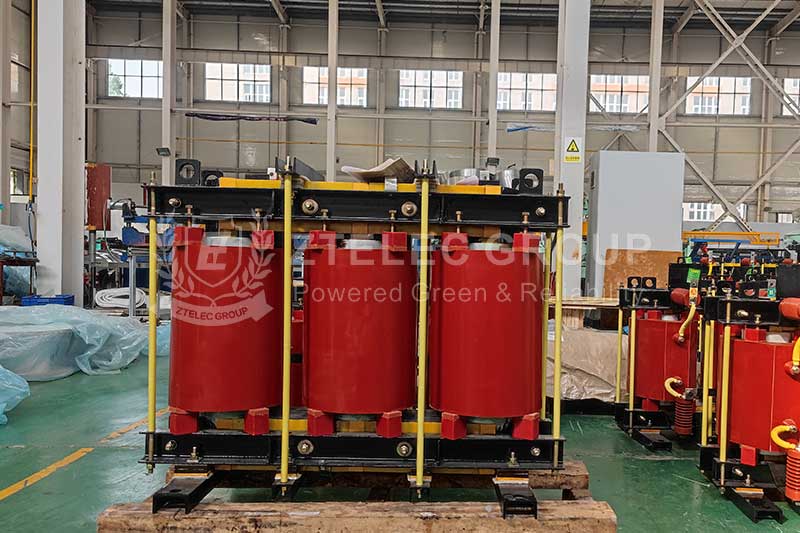

dry-type-transformer

1. Material cost

Material cost is the most direct and significant part of transformer production cost. The main materials for making a transformer include magnetic core, wire (such as copper wire), frame, insulation material (such as insulation cardboard), transformer oil, etc.

Magnetic core: The magnetic core is the core component of the transformer. And its cost mainly depends on the material and weight of the magnetic core. Silicon steel sheets and amorphous alloys are common magnetic core materials. Silicon steel sheets are widely used due to their good magnetic conductivity and low cost, but their cost is affected by international iron ore prices and fluctuations in the steel industry. Amorphous alloys have higher magnetic conductivity and lower losses, but their costs are relatively high.

Wire: Wire is mainly copper conductor, and its cost is greatly affected by the international copper price. Fluctuations in copper prices will directly affect the cost of wire, and thus affect the overall cost of the transformer. In addition, the specification and length of the wire will also affect its cost.

Skeleton: The skeleton is a component that supports and fixes the transformer windings, and is generally a mass-produced industrial product. Its cost is relatively stable, but it will also be affected by the scale of production and the price of raw materials.

Insulation material: Insulation material is used to ensure the electrical insulation performance of the transformer. Common insulation materials include insulation cardboard, insulation oil, etc. The cost of insulation material is affected by raw material prices and market demand.

2. Manufacturing process

The complexity and precision of the manufacturing process has a significant impact on cost. Improving manufacturing processes can reduce costs and increase efficiency‌. The labor cost is higher than the cost of mass production by machines, so optimizing the production process and adopting automated production can reduce the labor cost.

3. Specifications and Capacity

The size and capacity of the transformer directly affect the material and manufacturing costs. The higher the specifications and the larger the capacity, the higher the material and manufacturing costs will be.

4. Shipping costs

Transportation costs are the expenses of transporting the transformer from the production site to the customer site. The installation cost is the cost of installing the transformer at the designated location and commissioning it. Choosing the right transportation and installation method can reduce costs. ‌‌

Transportation cost: Transportation cost depends on the transportation distance, transportation mode and transportation tool selection. Long-distance transportation, complex terrain or special transportation requirements will increase transportation costs.

Installation cost: Installation cost depends on the structure, installation location and installation requirements of the transformer. Large transformers or complex installation requirements will increase installation costs.

5. Maintenance and servicing costs

Regular maintenance and servicing can extend the service life of the transformer, reduce the failure rate, and thus reduce maintenance costs.

The production cost of transformers is a complex issue that is affected by multiple factors. When manufacturing equipment, it is necessary to comprehensively consider the above factors and optimize them to ensure that its quality and performance meet customer needs while controlling manufacturing costs.
