Transformer Manufacturing Process

Transformers are important electrical devices widely used in power systems, and their basic function is to achieve voltage transformation through the principle of electromagnetic induction. Transformers play a critical role in power transmission, distribution, and various electronic devices, so the precision of their manufacturing process directly affects their performance, efficiency, and reliability. This article will delve into the manufacturing process of transformers, including the selection of raw materials, manufacturing procedures, and quality control.

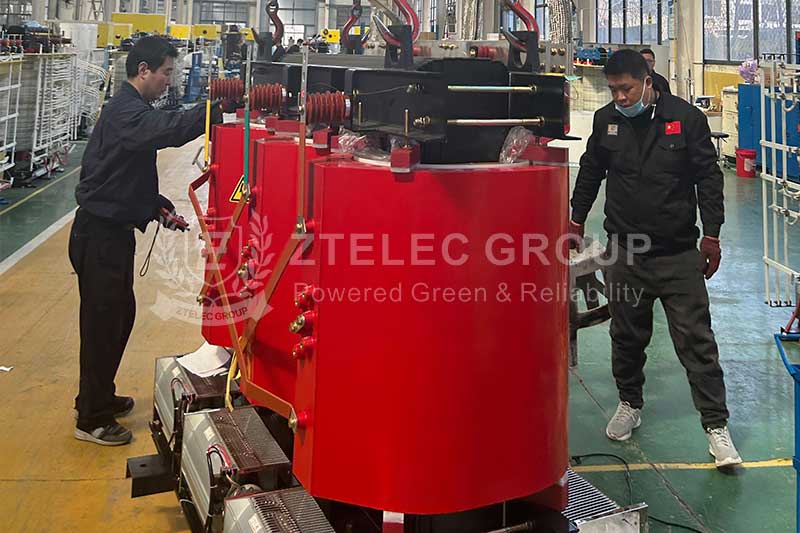

Dry-Type Distribution Transformer

Selection of Raw Materials

The performance of transformers largely depends on the raw materials used. The main raw materials include conductive materials, insulating materials, and core materials.

1. Selection of conductive materials

The wires used in transformers are typically made of copper or aluminum. Copper wires are widely used due to their excellent conductivity and corrosion resistance, but their cost is relatively high. Although aluminum wires have slightly lower conductivity, their lightweight and lower cost advantages have led to their gradual adoption, especially in large-capacity transformers. In recent years, with technological advancements, new materials such as silver-based alloys and silver-plated strands have begun to enter the transformer manufacturing field, enhancing transformer performance under high-frequency and high-temperature working conditions.

2. Transformer insulating material

Insulating materials are crucial for the safety and performance of transformers. Common insulating materials include paper, epoxy resin, and polyester film. When selecting suitable insulating materials, it is essential to consider not only their insulation properties but also their heat resistance, moisture resistance, and long-term aging stability. In recent years, environmentally friendly insulating materials have gained attention; these materials not only possess excellent electrical properties but also have a minimal environmental impact, aligning with modern green manufacturing requirements.

3. Transformer Core Materials

Core materials play a vital role in transformers, responsible for concentrating and guiding magnetic flux, thereby improving energy conversion efficiency. Common core materials include silicon steel sheets and galvanized steel plates. Modern transformers typically use amorphous alloy materials as cores, which have lower iron losses and higher saturation magnetic induction, significantly improving the economic efficiency and effectiveness of transformers. Additionally, the design and structural form of the core, such as selecting appropriate layers and shapes, also significantly impact the magnetic flux density and power consumption of the transformer.

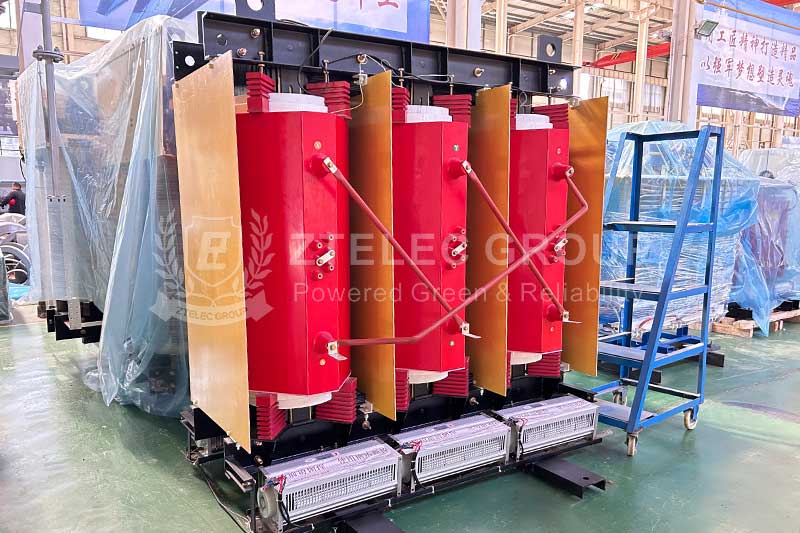

dry-type-transformer

Manufacturing Process

The manufacturing process of transformers generally includes several steps: stamping, winding, impregnation, assembly, and testing. Each stage needs to be controlled according to strict process standards to ensure the quality and reliability of the final product.

1. Stamping

Stamping is an essential step in preparing the transformer core. The core material is cut into the required shape using molds, and during the stamping process, the thickness and loss of the material must be controlled to ensure the magnetic performance of the core. The laminated design of silicon steel sheets, the stamping direction, and the insulation treatment between layers are also critical factors that directly affect the magnetic performance and cost of the transformer.

2. Winding

Winding is one of the most crucial steps in the manufacturing of transformers. When handling copper or aluminum wires, it is necessary to choose suitable insulation processes to ensure the insulation performance and mechanical strength of the coils. Winding methods can be categorized into single-layer, double-layer, and multi-layer forms, with the appropriate winding structure selected based on the design requirements of the transformer. The accuracy of this step significantly affects the symmetry and reliability of the transformer.

3. Impregnation

The impregnation process is used to enhance insulation performance and mechanical strength. The wound coils are immersed in an impregnation agent to ensure the continuity and consistency of the insulation layer. After impregnation, the coils must undergo high-temperature drying to remove excess solvent and cure the insulation layer. This process not only improves the insulation performance of the transformer but also effectively reduces noise and minimizes electromagnetic interference.

4. Assembly

During the assembly phase, various components of the transformer are put together. At this time, careful inspection of the fit between parts is necessary to ensure tightness and the integrity of the insulation barriers. It is essential to ensure that there are no gaps or air spaces between the core, windings, and casing to reduce magnetic leakage and magnetic flux losses.

5. Testing

After the transformer assembly is complete, a series of tests must be conducted to verify that its performance meets design requirements. Routine tests include insulation resistance tests, dielectric strength tests, and turns ratio tests. By conducting load and no-load tests on the transformer, its performance and efficiency under operating conditions can be evaluated. The test results will serve as the basis for quality control, with non-conforming products subject to rework or scrapping.

Quality Control

The quality control of transformers runs throughout the entire manufacturing process, involving multiple aspects such as material inspection, process monitoring, and comprehensive testing of the final product.

1. Material Inspection

All raw materials undergo strict inspection to ensure compliance with national standards and industry norms. The compliance of materials is directly related to the overall performance and safety of the transformer. In particular, conductive and insulating materials must be verified through electrical performance testing and chemical composition analysis.

2. Process Monitoring

During the manufacturing process, advanced automated monitoring equipment is used for real-time oversight, ensuring that each stage adheres to the established process flow. Additionally, employee training is a crucial part of quality control, ensuring that personnel can identify and resolve issues during operation.

3. Final Testing

Before leaving the factory, transformers must undergo comprehensive final inspections, including various performance tests and safety checks. Only products that pass inspection can enter the market. For products that do not meet standards, detailed records and analyses must be conducted to identify the causes and improve the process.

The manufacturing process of transformers is a complex and systematic project, encompassing aspects such as raw material selection, advanced production processes, and stringent quality control. With the advancement of technology, the manufacturing processes for transformers continue to evolve, with the application of new materials and technologies driving improvements toward greater efficiency and environmental sustainability. In the future, the use of transformers in smart grids and renewable energy sectors will become increasingly widespread, and the demands on their manufacturing processes will also rise. Therefore, continuous improvement of manufacturing processes, reduction of energy consumption, and enhancement of efficiency will be important challenges for the transformer manufacturing industry.
