Understanding FR4 Material and Its Significance in Electronics

What is FR4?

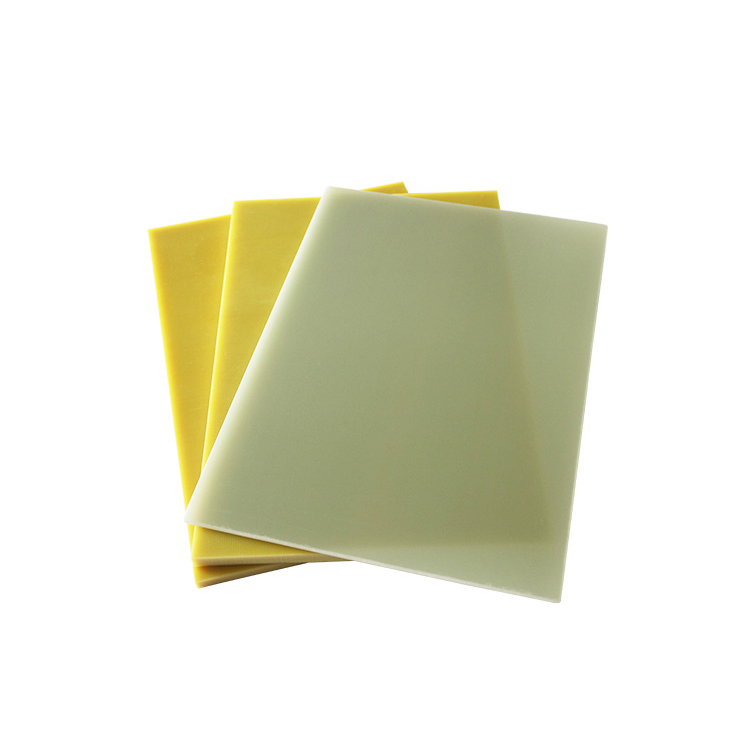

FR4 is a widely used material in the electronics industry, primarily known for its role in the production of printed circuit boards (PCBs). The term "FR" stands for "flame retardant," and the number "4" indicates a specific grade of the material. FR4 is composed of a woven fiberglass fabric impregnated with an epoxy resin, providing a combination of strength, durability, and electrical insulation.



Properties of FR4 Material

FR4 is popular for several key reasons:



Electrical Insulation: FR4 offers excellent electrical insulation, making it an ideal base material for PCBs. It effectively isolates electronic components and prevents short circuits.



Flame Retardancy: One of the defining features of FR4 is its flame retardant property. This quality ensures that the material resists ignition and helps in preventing the spread of fire, making it a safer choice for electronic devices.



Mechanical Strength: Despite being lightweight, FR4 is mechanically robust. It provides the necessary support for electronic components, ensuring the PCB remains stable even under stress.



Moisture Resistance: FR4 is also resistant to moisture, which is crucial for the longevity and reliability of electronic devices, especially in humid environments.



Thermal Stability: The material can withstand a range of temperatures, making it suitable for applications that experience varying thermal conditions.



Applications of FR4

FR4 is primarily used as the substrate material in the production of PCBs. The role of a PCB is to mechanically support and electrically connect electronic components using conductive pathways, or traces, etched from copper sheets laminated onto a non-conductive substrate.



Beyond PCBs, FR4 is also used in:



Switches and Relays: Due to its insulation properties.

Transformers: As a structural and insulating material.

Electromechanical Components: Where its strength and flame retardancy are beneficial.

FR4 in the Electronics Industry

The electronics industry relies heavily on FR4 for its versatility and cost-effectiveness. It forms the backbone of most electronic devices, from consumer gadgets like smartphones and tablets to industrial machinery and communication equipment.



FR4's characteristics make it particularly suitable for multilayer PCBs, where multiple layers of copper and FR4 material are laminated together. This layering allows for more complex circuit designs and higher density of components, which are essential for modern electronic devices.



Environmental and Safety Considerations

While FR4 is generally safe and effective, it is important to note that the material is not biodegradable, posing potential environmental concerns if not disposed of properly. Additionally, the flame retardant properties of FR4 often come from brominated compounds, which can release toxic fumes when burned. Therefore, handling and disposal of FR4 material should be done in accordance with environmental regulations.



Conclusion

FR4 remains a critical material in the electronics industry, offering a balance of electrical insulation, mechanical strength, and flame retardancy. Its widespread use in PCBs and other electronic components underscores its importance in modern technology. As the industry continues to evolve, the role of FR4 will likely remain central, although advancements in materials science may introduce new alternatives in the future.
