What is insulating paper and where are insulating cardboard processing parts mainly used?
2023-12-26 14:45 | By: ZTELEC-www.ztelecgroup.com | 65click
Insulating paper is an electrical insulation material, usually made of wood pulp fibers and processed through a special process. This paper has good electrical insulating properties and is suitable for many electrical and electronic applications.

The main uses of insulation paper include:
1. Motor and transformer insulation: Insulating paper is widely used in the insulation system of motors and transformers to help isolate circuits and prevent electrical faults.
2. Cable insulation: In cable manufacturing, insulating paper is usually used as the cable insulation layer to protect the cable's conductors from the external environment.
3. Electrical equipment isolation: Insulating paper is used as an isolation layer in electrical equipment to ensure the safe operation of circuits.
4. Electronic component manufacturing: In the manufacturing process of some electronic components, insulating paper is used to wrap and isolate the components to ensure that they will not short-circuit each other or be affected by the external environment.
5. Electrical insulation material: As an electrical insulation material, insulating paper can be used to manufacture various electrical and electronic products that require insulation properties.

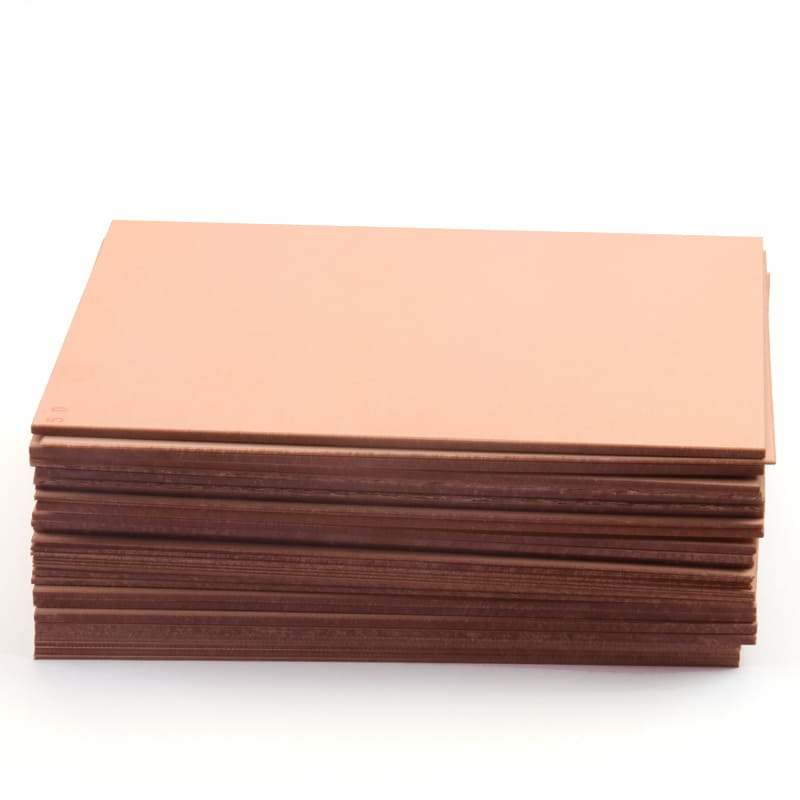

6. Insulating gaskets and washers: Insulating cardboard is usually cut into different shapes of gaskets and washers for the installation and isolation of electrical equipment.

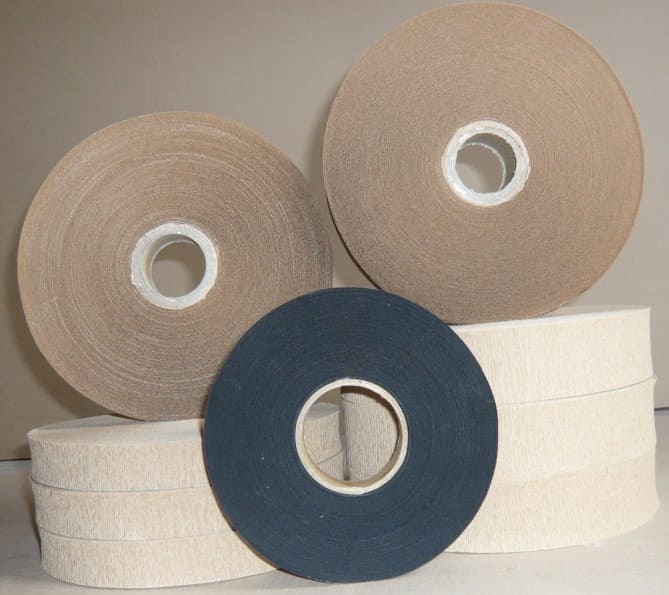

7. Insulating tape: Insulating paper can also be made into insulating tape, which is used for cable packaging, connection and insulation.
8. High-temperature insulation: Insulating paper usually has certain high-temperature resistance, so it can maintain stable insulation performance in high-temperature environments, such as motors and transformers.
Overall, insulating paper plays an important role in the electrical and electronic fields, providing reliable insulation performance and ensuring the normal operation of equipment and circuits.
