DRY TYPE TRANSFORMER

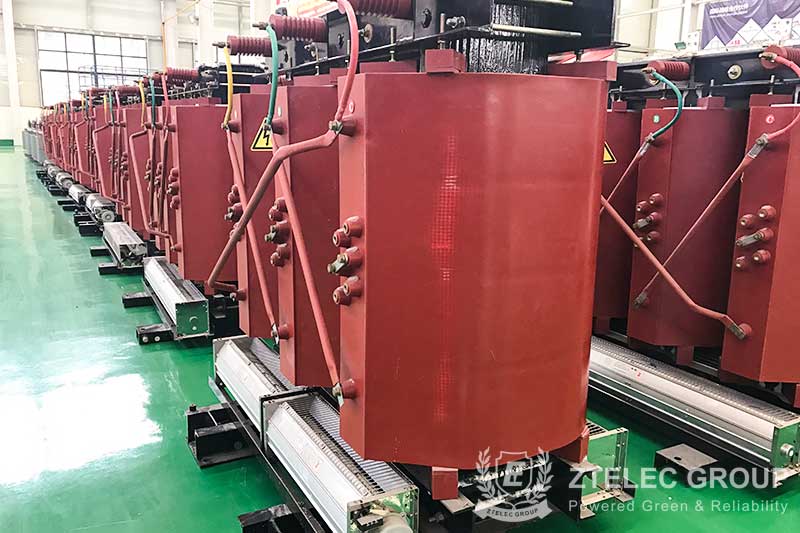

Double High-Voltage Convertible Dry-Type Transformer

The 500 kva/2000kva medium voltage dry type transformer is coated with special resin to prevent moisture and rust, which effectively reduces no-load loss and no-load current.

contact info

product description

Feature of Double High-Voltage Convertible Dry-Type Transformer

When a series of dry-type transformers is connected to a line voltage of 20KV or 10KV, the connection state between two windings of each phase high-voltage coil is controlled by a conversion device, and the purpose of voltage conversion is achieved in series or parallel, while the output voltage is constant, thereby realizing a transformer product can be connected to the 10KV, 20KV class two voltage systems during the non-synchronous period. It is a transitional product when the network power 10KV will be upgraded to 20KV. It can reduce the repetitive investment but convenient and quick conversion and also has stable product performance.
Dry-Type Transformer
Technical Requirement of Double High-Voltage Convertible Dry-Type Transformer

Environment: -25℃~40℃

Altitude(m): 100 meters or less

Insulation Class: F Class

Frequency(Hz): 50

Tap Range: ±5%、±2*2.5%

Voltage Regulating Mode: No-load Voltage Regulating

Cooling Type: AN/FN

Technical Parameter of Double High-Voltage Convertible Dry-Type Transformer

Executive Standard: IEC60076 & National Standard

HV:20/22/24   LV:0.4/0.415
Capacity Connection Group No-Load Loss W On-Load Loss
W
No-Load Current
%
Short-Circuit Impedance
%
250 Dyn11 900 3150 2 6
320 1050 4200 2 6
400 1100 4900 2 6
560 1320 6000 2 6
630 1600 6500 2 6
750 1900 770 1.5 5.6
800 1900 8500 1.5 6
1000 2200 10000 1.5 6
1250 1650 11000 1.5 6
1500 2900 11426 1.5 5.6
1600 2900 13000 1.5 6
2000 3500 16000 1 6
2500 4300 19000 1 6
3000 4900 22000 1 6
3200 5200 23000 1 6
3500 5700 25000 1 6
4000 6200 27000 1 6.5
