A Guide to Transformer Cores: Types, Structures, and Applications

Transformers are essential in modern power systems, and the transformer core, as a key component, directly impacts the transformers performance and efficiency. This article delves into the types, structures, and applications of transformer cores to aid in understanding and selecting the right one.

Types of Transformer Cores

1. Silicon Steel Core

The most common type, made from cold-rolled silicon steel laminations with high silicon content. These cores offer low hysteresis loss and high permeability, reducing iron losses and improving efficiency. They are widely used in power and distribution transformers.

2. Amorphous Alloy Core

Made from amorphous alloy materials, these cores have extremely low hysteresis and eddy current losses. Compared to silicon steel cores, amorphous alloy cores reduce losses by over 70%, making them ideal for high-efficiency transformers. However, their higher cost limits them to applications with very high energy efficiency requirements.

3. Ferrite Core

Composed of ferrite materials, these cores have high resistivity and low eddy current loss. They are primarily used in high-frequency transformers and small transformers in electronic devices like switch-mode power supplies and communication equipment.

4. Nanocrystalline Core

A new type of core material with excellent magnetic properties and low loss. It performs well in high-frequency and special-purpose transformers and is becoming popular in the high-end transformer market.

Structures of Transformer Cores

The structural design of transformer cores significantly affects their performance. Common structures include:

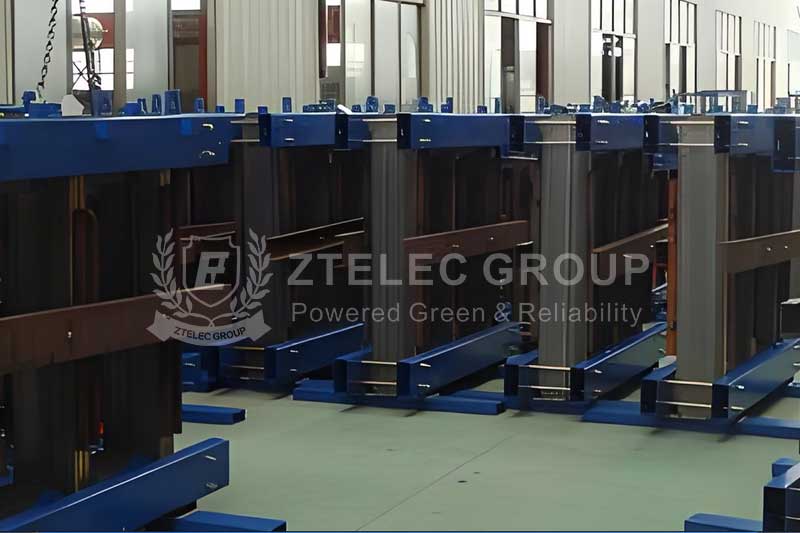

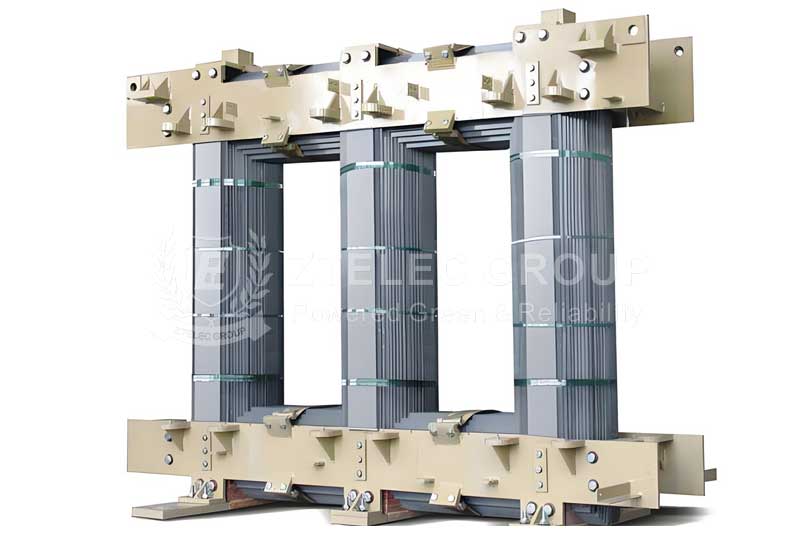

1. Laminated Core

Made by stacking multiple layers of silicon steel laminations, insulated by coatings to reduce eddy current loss. This simple, well-established design is widely used in various transformers.

2. Wound Core

Made from continuously wound silicon steel strips, offering high permeability and low hysteresis loss. Compact and suitable for small and special-purpose transformers.

3. Cut Core

Made by cutting silicon steel strips into specific shapes and stacking them, providing high mechanical strength and stability. Ideal for high-power and high-voltage transformers.

Applications of Transformer Cores

Transformer cores play crucial roles in various fields:

1. Power Transformers

Key equipment for voltage transformation and power transmission in power systems. Silicon steel and amorphous alloy cores are preferred to lower iron losses and enhance efficiency.

2. Distribution Transformers

Convert high-voltage power to low-voltage for end-users. Silicon steel cores are widely used due to their low cost and stability, while amorphous alloy cores excel in energy-saving distribution transformers.

3. High-Frequency Transformers

Used in electronic devices like switch-mode power supplies and communication equipment. Ferrite and nanocrystalline cores are ideal due to their low loss and high-frequency characteristics.

4. Special-Purpose Transformers

Such as furnace and rectifier transformers, which have specific core material requirements. Nanocrystalline and cut cores are commonly used for their superior magnetic and mechanical properties.

Selecting the Right Transformer Core

Choosing the appropriate transformer core involves considering several factors:

1. Application Scenario

Select the core type based on the transformers application. For example, silicon steel cores are typical for power and distribution transformers, while ferrite or nanocrystalline cores suit high-frequency transformers.

2. Energy Efficiency Requirements

For high-efficiency applications, prioritize amorphous alloy or nanocrystalline cores to minimize losses and maximize efficiency.

3. Budget Constraints

Different core materials vary in cost. Silicon steel cores are cost-effective for large-scale applications, while amorphous alloy and nanocrystalline cores, though more expensive, are better for high-end uses.

4. Manufacturing Process

The complexity of manufacturing processes for different core structures varies. Laminated cores are easy to mass-produce, while wound and cut cores, with more complex processes, are better for special-purpose transformers.

In summary, the core is central to a transformers performance and efficiency. Understanding different core materials and their applications allows for optimal selection, ensuring the transformer operates efficiently and stably. Whether for power, distribution, high-frequency, or special-purpose transformers, choosing the right core material is key to enhancing performance.

We hope this guide offers valuable insights and assists in making informed decisions about transformer cores. For any questions or technical support, feel free to contact our professional team.
