Types of Insulators Used in Transmission Lines

In modern power systems, transmission lines serve as essential channels for the transmission of electrical energy. Insulators are one of the key components in transmission lines, primarily used to support conductors and provide electrical insulation, preventing current leakage and short circuits, thereby ensuring the safe and stable operation of the power system. Based on different materials, structural forms, and application environments, insulators can be classified into various types. This article will provide a detailed discussion on the types of insulators used in transmission lines.

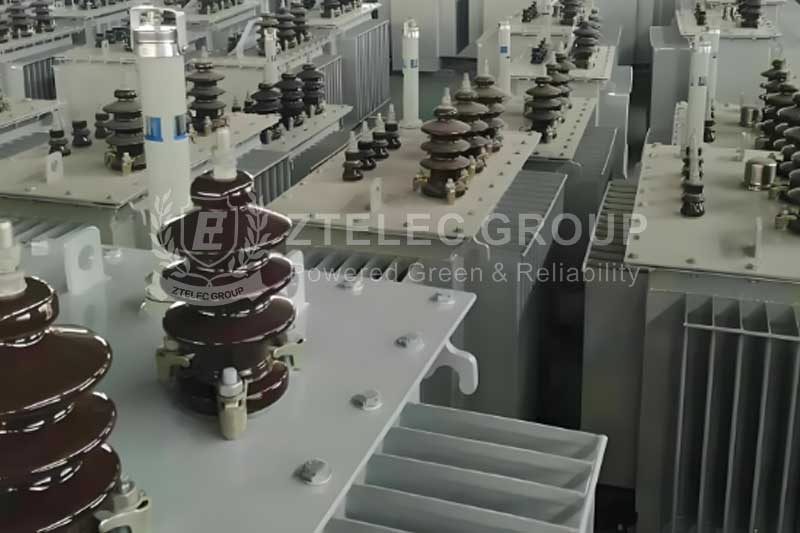

Insulator transformer

Classification by Material

The main materials for insulators include ceramics, glass, and composite materials (plastics). Insulators made from different materials have their own advantages in terms of performance and applicable situations.

1. Ceramic Insulators

Ceramic insulators were the first type of insulators used in power lines, primarily made from natural minerals such as kaolin and quartz, which are formed after being fired at high temperatures. The advantages of ceramic insulators lie in their excellent electrical insulation properties, weather resistance, and mechanical strength, making them commonly used in high-voltage and ultra-high-voltage transmission lines. However, they are also relatively heavy, fragile, and have poorer pollution resistance compared to other types.

2. Glass Insulators

Glass insulators are made from high-quality glass materials, and their transparency makes them more convenient for inspection and maintenance. Glass insulators have strong pollution resistance, effectively resisting the impact of contaminants on insulation performance. In addition, glass insulators possess high mechanical strength and good impact resistance, resulting in a long lifespan. However, in certain environments, their brittleness may affect their usability.

3. Composite Material Insulators

Composite material insulators are a newly emerging type of insulator in recent years, primarily made from materials such as epoxy resin and silicone rubber. Insulators made from these materials exhibit good flexibility and impact resistance, are lightweight, and easy to install, making them suitable for various environmental conditions. Particularly in coastal or humid areas, composite insulators have strong pollution resistance, significantly reducing the risk of accidents caused by contamination. However, their high-temperature stability and long-term weather resistance are still inferior to those of ceramic and glass insulators.

Classification by Structure

Based on the structural form of insulators, they can be mainly divided into suspension insulators, post insulators, and disc insulators.

1. Suspension Insulators

Suspension insulators are the most widely used form of insulators, typically consisting of multiple ceramic or glass insulating units suspended on conductors through metal connecting parts. They maintain a stable suspended state through gravity and tension, making them suitable for high-voltage transmission lines. The advantages of suspension insulators include good electrical performance and high mechanical strength, making them suitable for long-term use.

2. Post Insulators

Post insulators are usually used for insulation support in substations and other equipment, featuring high mechanical performance. Their components are mainly an integrated structure, suitable for use under high voltage loads. The design of post insulators allows them to withstand significant lateral forces, ensuring their stability in harsh environments.

3. Disc Insulators

Disc insulators are mainly used in low-voltage transmission lines and distribution lines, formed by stacking multiple insulating discs to provide necessary insulation for wires. In certain specific applications, disc insulators can offer good pollution resistance and bending strength.

Classification by Application Environment

Insulators can also be categorized based on their usage environment into outdoor insulators and indoor insulators.

1. Outdoor Insulators

Outdoor insulators need to withstand the effects of natural weather, so their design particularly emphasizes weather resistance, pollution resistance, and UV resistance. Generally, outdoor insulators are made from ceramic or glass materials to ensure they maintain good insulation performance under sunlight exposure, rain erosion, and the influence of contaminants.

2. Indoor Insulators

Indoor insulators are primarily used within substations and high-voltage equipment, where they are less affected by environmental factors. Typically, indoor insulators are made from composite materials to reduce space occupancy and enhance safety. Due to the relatively stable environment, the requirements for pollution resistance and moisture resistance for indoor insulators are lower.

With the continuous development and innovation of power system technology, the types of insulators and their application ranges are also expanding. Different types of insulators, such as ceramic, glass, and composite materials, each have their own characteristics and advantages, catering to the demands of various environments and voltage levels. In the future, with ongoing advancements in new material technologies and design concepts, insulators are expected to see significant improvements in performance, durability, and environmental friendliness, ensuring the safe operation of power systems. For power engineers and equipment maintenance personnel, a deep understanding of the characteristics of different types of insulators and their applicable situations will aid in better selection and application in practice, thereby enhancing the reliability and economy of transmission lines.
