Characteristics, Applications and Precautions for Black Bakelite Boards

Black Bakelite boards have been a staple in electrical and industrial applications for decades. This article will explore the properties, uses, and advantages of these versatile boards, providing valuable insights for engineers, electricians, and hobbyists alike.

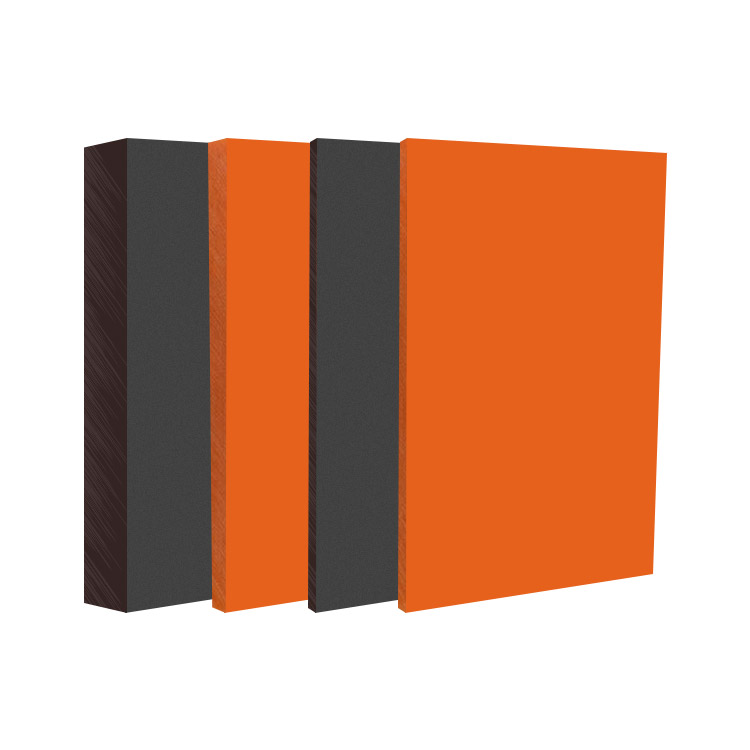

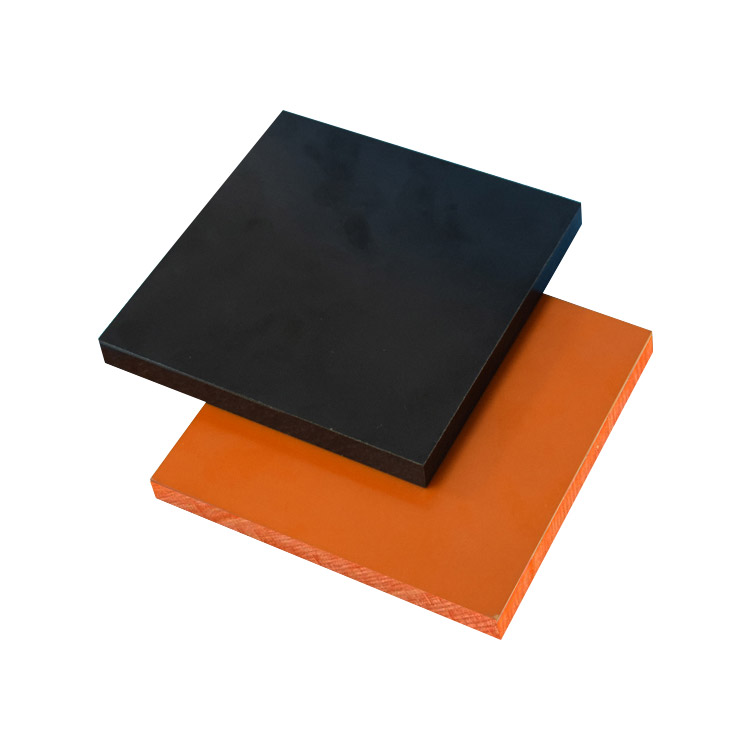

Properties of Black Bakelite Boards

Black Bakelite, also known as phenolic resin, is a thermosetting plastic material with unique characteristics that make it ideal for various applications:

Heat Resistance: Black Bakelite boards can withstand high temperatures without deforming or melting, making them suitable for use in electrical components and industrial machinery.

Electrical Insulation: These boards exhibit excellent electrical insulation properties, making them a popular choice for circuit boards and electrical panels.

Durability: Black Bakelite is known for its strength and resistance to wear and tear, ensuring longevity in demanding environments.

Chemical Resistance: The material is resistant to many chemicals, oils, and solvents, making it suitable for use in harsh industrial settings.



Applications of Black Bakelite Boards

The unique properties of Black Bakelite boards make them versatile for various applications:

Electrical Panels: Their excellent insulation properties make them ideal for use in electrical distribution panels and switchboards.

Circuit Boards: Black Bakelite boards serve as a reliable substrate for electronic circuits in both industrial and consumer electronics.

Industrial Machinery: The material's heat resistance and durability make it suitable for components in industrial equipment and machinery.

Automotive Industry: Black Bakelite boards find applications in various automotive components, including electrical systems and under-hood parts.

Advantages of Black Bakelite Boards

Black Bakelite boards offer several advantages over other materials:

Cost-Effective: Compared to more advanced materials, Black Bakelite boards provide a cost-effective solution for many applications.

Easy Machining: The material can be easily cut, drilled, and shaped, allowing for customization and flexibility in design.

Flame Retardant: Many Black Bakelite formulations include flame-retardant additives, enhancing safety in electrical applications.

Low Moisture Absorption: Black Bakelite boards have low moisture absorption rates, maintaining their electrical properties in humid environments.



Considerations for Use

While Black Bakelite boards offer numerous advantages, there are some considerations to keep in mind:

Temperature Limitations: Although heat-resistant, extreme temperatures can affect the material's properties over time.

Brittleness: Black Bakelite can be brittle and may crack under high impact or stress.

Environmental Concerns: As a thermoset plastic, Black Bakelite is not easily recyclable, which may be a concern in some applications.

By understanding the properties, applications, and advantages of Black Bakelite boards, engineers and designers can make informed decisions about their use in various projects.
