What is g10 electrical insulation material and what are its characteristics

G10 refers to a type of high-pressure fiberglass laminate. It is a composite material composed of layers of glass cloth impregnated with epoxy resin, which are then compressed and cured under high pressure and temperature. The resulting material is strong, durable, and exhibits excellent electrical insulating properties. The term "G10" is often used as a generic name for this type of material, and it is also known by other designations such as FR-4 (Flame Retardant 4), which is a grade within the G10 family.



G10 Is a fiberglass laminate type material also known as a composite material. It's commonly made by layering up sheets of glass cloth soaked in epoxy resin and compressing it under heat until the epoxy cures. This creates a super strong, stiff material with a low thermal expansion, excellent electrical and water resistance, flame retardant, and all-around dimensionally stable.

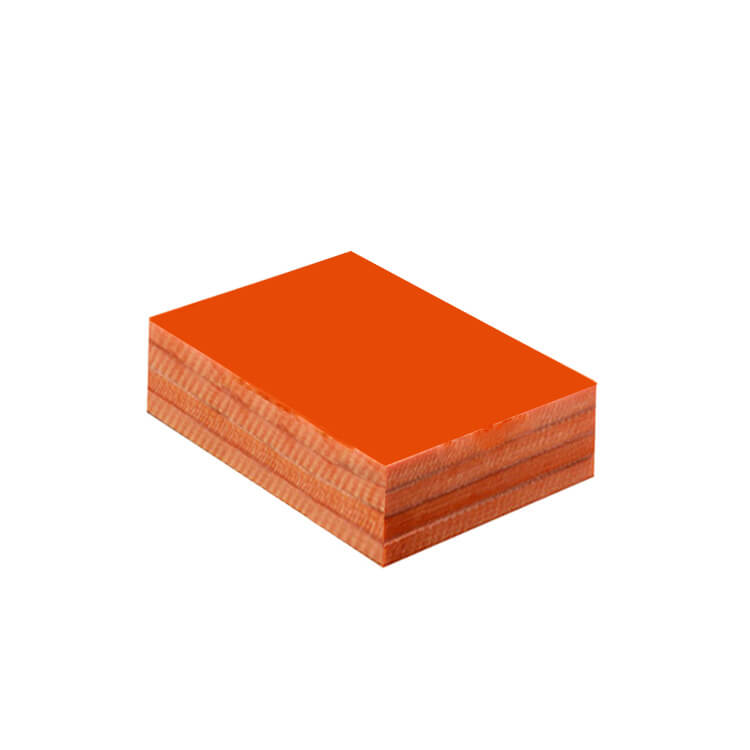

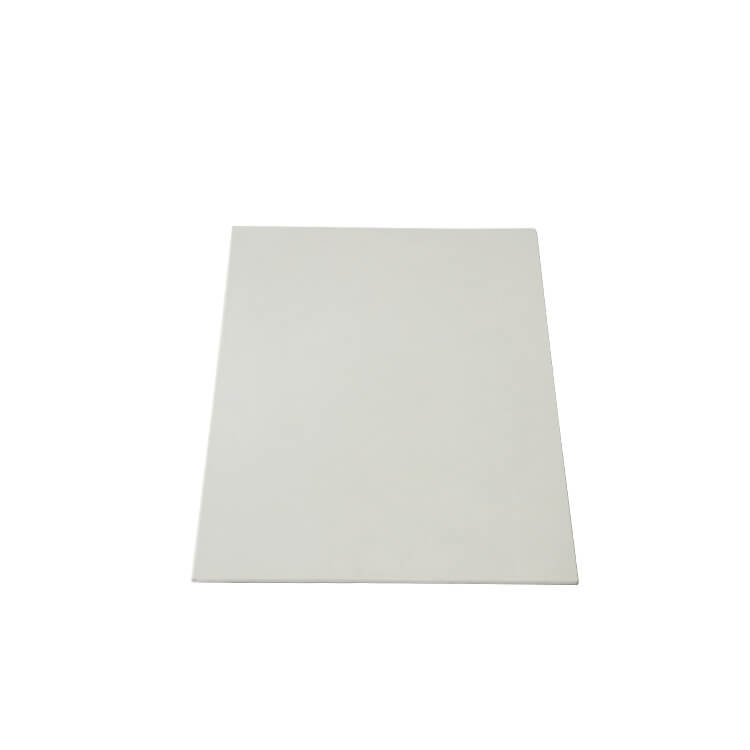

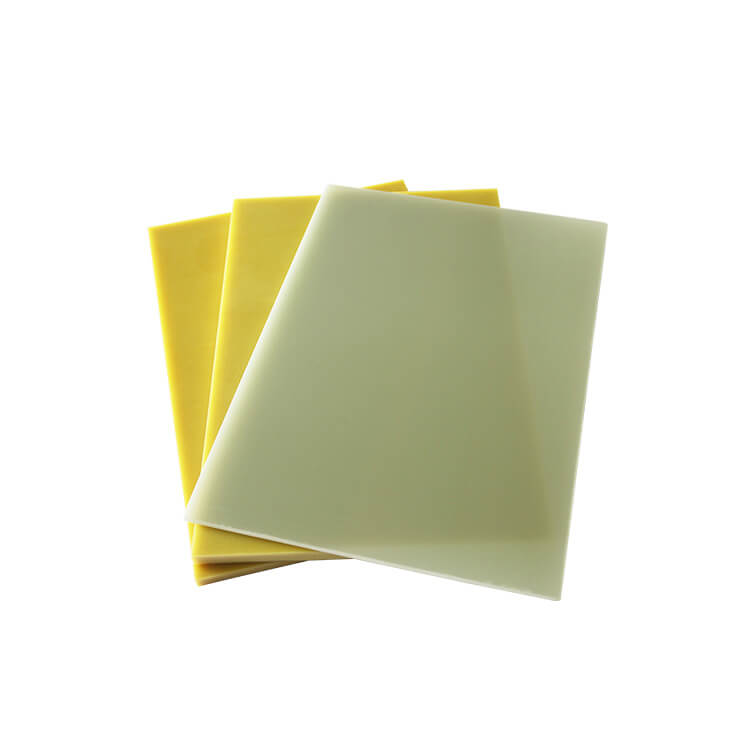

Made in large sheets which are then cut down into smaller sheets, blocks, and scales for knifemaking as well as many other industrial uses like chipboards, insulators, and other mechanical applications that require sheets of material with stability and strength at low cost.



Key characteristics of G10 material include:

1. Electrical Insulation: G10 is widely used in electrical applications due to its high electrical insulating properties. It is commonly used as an insulating substrate in printed circuit boards (PCBs).

2. Mechanical Strength: G10 is known for its high mechanical strength and dimensional stability. It can withstand significant pressure and has good resistance to impact.

3. Chemical Resistance: The material is resistant to various chemicals, making it suitable for applications where exposure to different substances is a concern.

4. Flame Retardant Properties: G10 is often manufactured with flame retardant additives, making it suitable for applications where fire safety is essential.

5. Temperature Resistance: G10 exhibits good temperature resistance, allowing it to maintain its properties across a wide range of temperatures.

6. Machinability: G10 can be machined easily, allowing for the creation of complex shapes and structures. It is often used in applications where customized parts are required.

Common applications of G10 include:

• Printed Circuit Boards (PCBs): G10 is a popular material for PCB substrates due to its electrical insulating properties and mechanical strength.

• Insulating Components: It is used in the manufacturing of insulating components for electrical equipment.

• Handles and Grips: G10's strength and durability make it suitable for applications such as knife handles, firearm grips, and other hand tools.

• Aerospace and Marine Components: G10 is used in the construction of components for aerospace and marine applications where high strength and resistance to harsh environments are important.
