g11 material properties and Electrical Properties
g11 Material Details

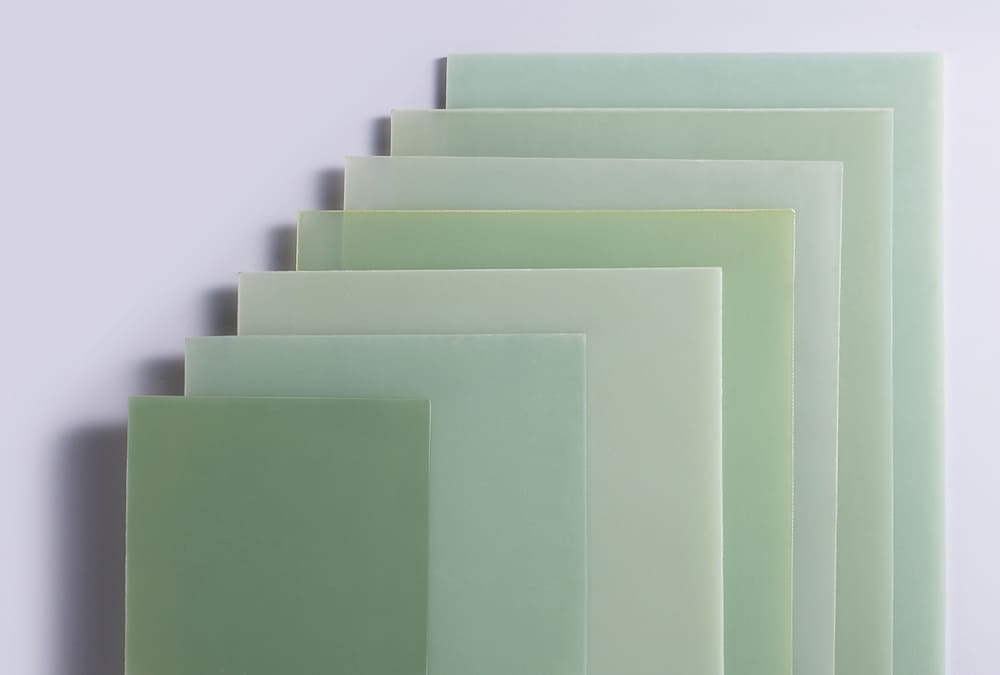

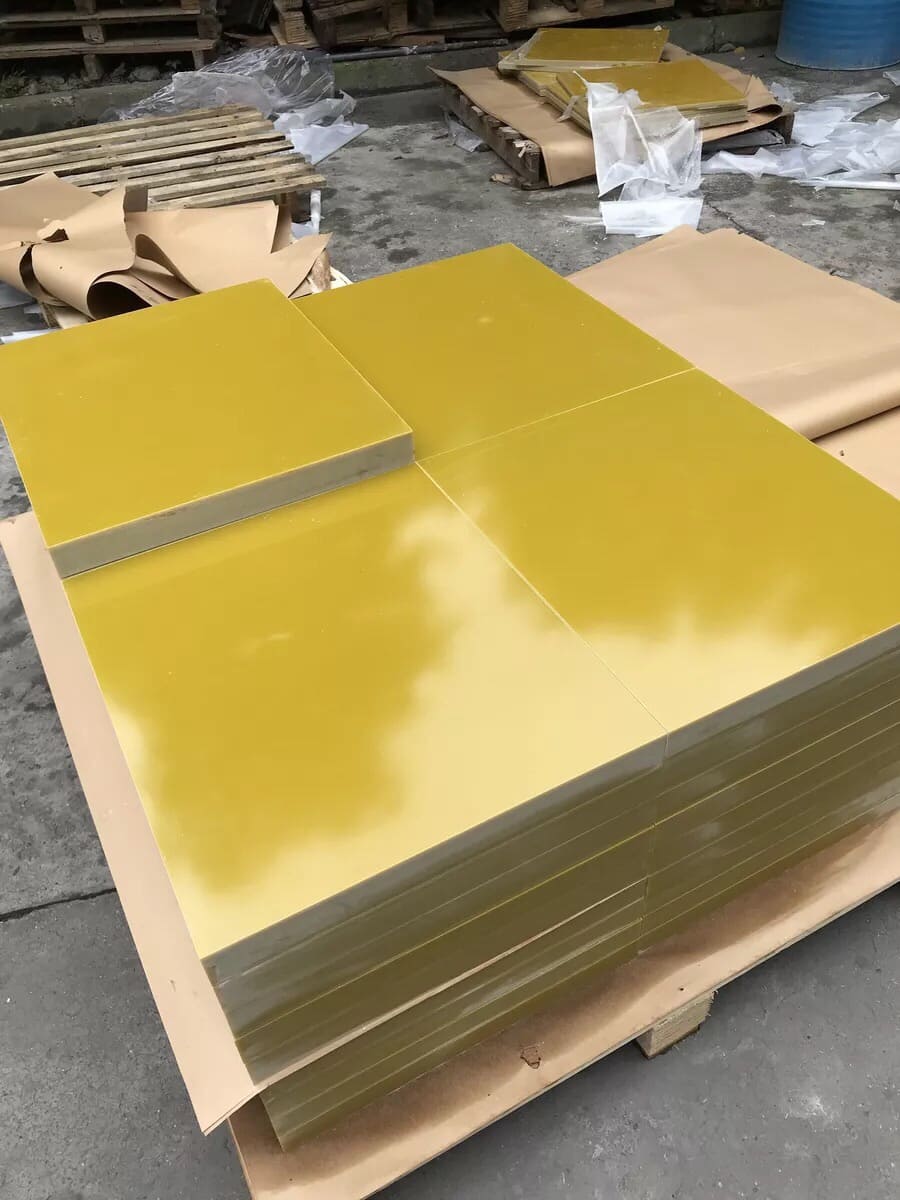

Grade: G11. (Type: Glass Based Laminates)
Description: Epoxy Glass. Superior Epoxy Glass Laminate.
Comments: A high strength Class F rigid insulation with many uses ranging from slot wedges in small motors to major components in turbo-alternators and electronic applications. G10 has excellent moisture resistance and heat resistance, high mechianical strength at room temperature, still strong mechanical property at high temperature of 155℃, and excellent electrical properties in dry and wet state.
Electrical Properties
Property Unit of measure Typical Value
Electrical Strength ⊥ kV/mm, thickness<3mm ≥15
Electrical Strength ∥ kV ≥50
Tracking Resistance PTI ≥200
Mechanical Properties
Property Unit of measure Typical Value
Benging Strength MPa ≥450
Tensile Strength MPa ≥350
Compressive Strength ⊥ MPa ≥450
Modulus Of Elastricity MPa ≥24000
Impact Strength ∥ kJ/m2 ≥33
Thermal Properties
Property Unit of measure Typical Value
Thermal Charactersitices ℃ 155
Notes
Typical Applications
lSlot Wedges
lTerminal Boards and Tag Strips
lHigh-Voltage Switches
lPlanetary Gears
lMachine parts
lBolt Insulation
lFPC Reinforcing Sheets
lElectronic Insulation Fields
lTransformer baffles
lElectromechanical Components
lWiring Boards
lPower Distribution Cabinets
General Properties
