product description

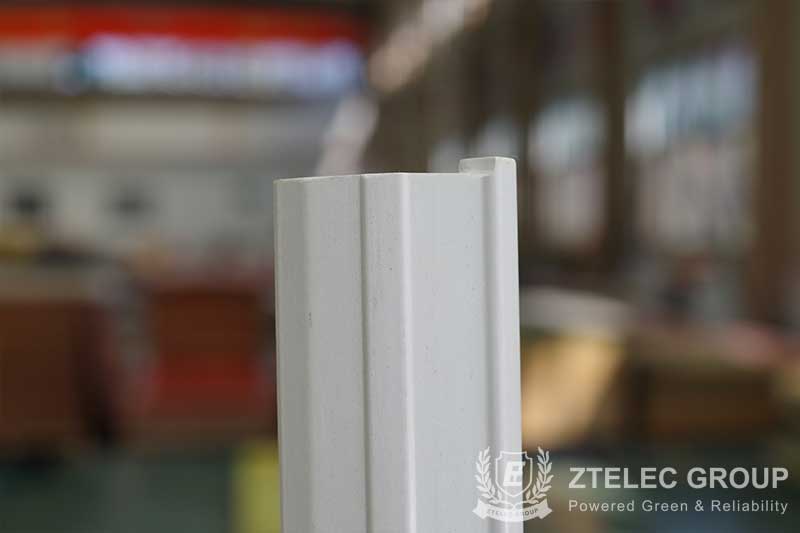

Description of Polyester Pull Extruded Bar
Polyester pull extruded bar is manufactured by non-alkali glass fiber yarn impregnated with unsaturated polyester resin through a mould in the pultrusion process. It has the advantages of excellent insulation, good heat and corrosion resistance, and high mechanical strength and so on.
Application of Polyester Pull Extruded Bar
Mainly apply to as insulating structural parts, screw processing parts and high-voltage disconnector in transformers, motors and electrical equipments.
Advantage of Polyester Pull Extruded Bar
Polyester pull extruded bar, produced by ZTelec Group using fiberglass as raw material, has the advantages of reliable quality and various shapes with strict manufacturing technology. The mechanical and electrical properties of products are superior to the similar one of other companies. Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric. Polyester pull extruded bar produced by ZTelec Group includes straight I-bar, I-bar, flat bar, hexagonal rod, hollow T-bar, solid T-bar, U shaped bar, R shaped bar, round rod, right angle, etc with various shapes and types and can fully meet the customers’ diversified demands.

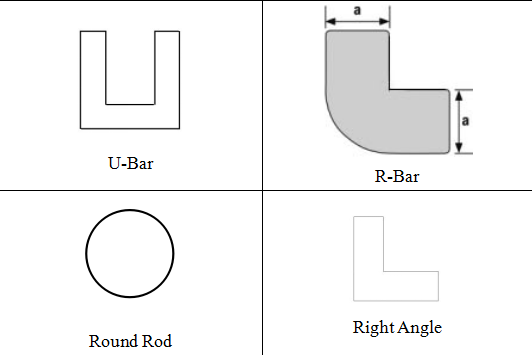

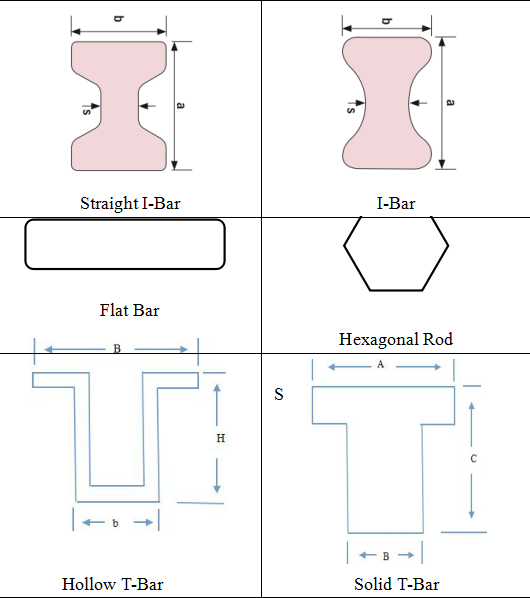

Insulation Stay Diagram of Polyester Pull Extruded Bar
Mould Specification Table of Polyester Pull Extruded Bar
| Name | Specification | ||||
| Straight I-Bar | 10*12*5 | 10*14*5 | 10*25*5 | 10*20*5 | 10*12*6 |
| I-Bar | 6*6 | 6*7 | 6*8 | 8*8 | 8*10 |
| 10*14 | 10*15 | 10*16 | 12*16 | 14*16 | |
| 14*18 | 16*20 | 16*18 | 14*20 | 12*20 | |
| Flat Bar | 5*22 | 14*16 | 12*14 | 12*30 | 12.5*30 |
| 10*40 | 12*40 | 12*40 | 10*10 | 5*10 | |
| Hollow T-Bar | 18*12*12 | 18*16*12 | 25*19*12 | 25*19*19 | 18*12*20 |
| 25*19*20 | |||||
| Solid T-Bar | 18*12*12 | 18*16*12 | 25*19*12 | 25*19*16 | 19*6*10 |
| 22*14*16 | 22*16*8 | 25*19*10 | 18*12*10 | 25*19*14 | |
| U-Bar | 10*8*2 | 6*10*4 | |||
| R-Bar | 10*17*7 | 19*19*7 | 6*8 | 8*28 | 10*30 |
| 8*8 | 10*10 | ||||
| Hexagonal Rod | 14*14 | ||||
| Round Rod | 4-6-8-12-20-24 | ||||
| Right Angle | 75*75*5 | 40*40*4.6 | 10*10 | 7*7 | 6*6 |
| ※Various shapes and specifications are not limited to this table. | |||||
