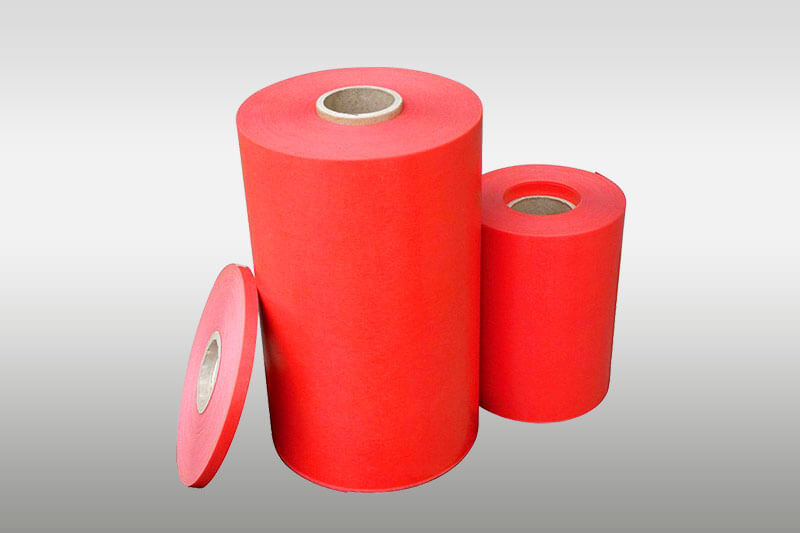

DMD/DM/DMDM/DMDP

Dmd/dm/dmdm/dmdp insulating paper are made of polyester fiber non-woven(D)and polyester film(M).They are finalized materials of Y series motors, and can be used as insulating materials of the transformers.

contact info

product description

Description of DMD/DM/DMDM/DMDP

DM series insulating paper is short for polyester film polyester fiber non-woven flexible composite materials. DM insulating paper is two-layer flexible composite material which is bonded by gluing polyester fiber non-woven(D) and polyester film(M); DMD insulating paper is three-layer flexible composite material which is bonded by gluing polyester fiber non-woven(D) on both sides of polyester film(M); DMDM insulating paper is four-layer flexible composite material which is composed of two-layer polyester fiber non-woven(D) and two-layer polyester film(M) overlapped alternately and glued together. DM insulating paper, DMD insulating paper, and DMDM insulating paper all have good mechanical strength and dielectric property, and higher heat resistant property. The insulation class is B class or F class.

Application of DMD/DM/DMDM/DMDP

DM series insulating paper is finalized insulating material of Y series motors, and can be used as insulating slot, turn-to-turn insulation and layer-to-layer insulation, pad insulation core for small and middle sized motors and turn-to-turn insulation for transformer.

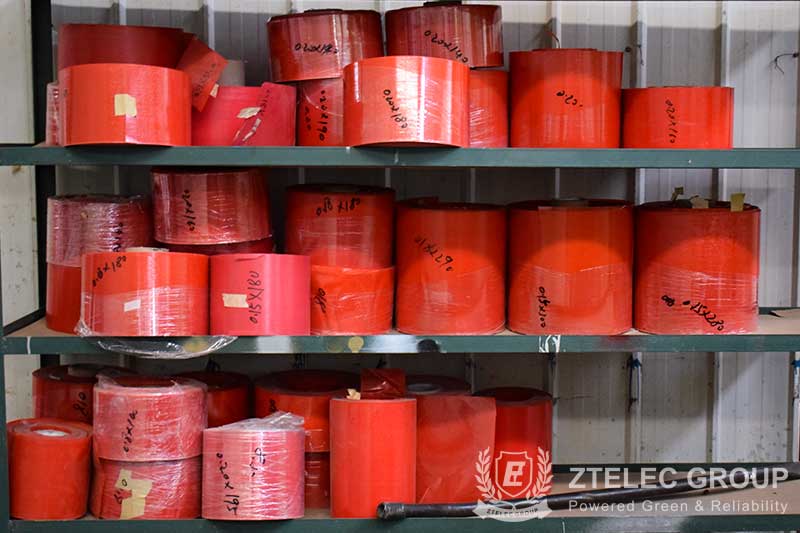

DMD/DM/DMDM/DMDP
Advantage of DMD/DM/DMDM/DMDP

To satisfy the diversified market demands for DM series insulating paper, ZTelec Group specially produces two-layer DM insulating paper, three-layer DMD insulating paper, and four-layer DMDM insulating paper using polyester film and polyester fiber non-woven as raw materials, ensuring that the series products have excellent mechanical property, temperature and corrosion resistance, high rigidity, hardness and toughness, and good chemical resistance and oil resistance. ZTelec Group is equipped with advanced ventilation facilities and dust-removing equipment to keep the products dry and clean. The mechanical and electrical properties of products are superior to the similar one of other companies. Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric and sold overseas such as European and American areas.

Property Parameter of DMD/DM/DMDM/DMDP

Executive Standard: GB-T5591.3-2008 IEC60626-3:2002

Number Name Unit Value
1 Nominal Thickness mm 0.13 0.15 0.18 0.2 0.23 0.25 0.3 0.35
2 Thickness Tolerance mm ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.03 ±0.03
3 Nominal Quantification g/cm2 130±15 145±20 180±20 220±20 255±30 285±30 350±30 425±40
4 Nominal Film Thickness um 36 50 75 100 125 150 188 250
5 Tensile Strength Crosswise N/10mm ≥60 ≥90 ≥120 ≥140 ≥180 ≥190 ≥270 ≥320
Lengthwise ≥40 ≥80 ≥105 ≥120 ≥150 ≥170 ≥200 ≥300
6 Elongation Crosswise ≥15 ≥5
Lengthwise ≥20 ≥5
7 Breakdown Voltage Non-bending KV ≥4.0 ≥6.0 ≥7.0 ≥9.0 ≥10 ≥12 ≥15 ≥18
≥5.0 ≥7.0 ≥8.0 ≥10 ≥11 ≥13 ≥16 ≥19
After Bending ≥3.0 ≥5.0 ≥6.0 ≥8.0 ≥9.0 ≥11 ≥13 ≥18
≥3.5 ≥6.0 ≥7.0 ≥9.0 ≥10 ≥11 ≥14 ≥18
8 Thermal Index - 130、155
9 Adhesion under Normal - No Delamination
10 Adhesion at Heat(130-155±2℃-10min) - No Delamination, No foaming, No Flowing Glue
