SEMI-FLEXIBLE SOLAR PANEL

Semi-flexible solar panel

Semi-flexible solar panels increase module efficiency while minimizing their weight. Semi-flexible solar panels combine high-efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve the electrical performance and power ge

contact info

product description

Semi-flexible solar panel01.jpg

The Main Parameters

Power  (Pmax) 10W 20W 50W 80W 100W 140W 160W 50W 100W
Working Voltage(Vmp) 18V 18V 16V 18V 18V 18V 18V 17.6V 17.6V
Working Current(IMP) 0.55A 1.11A 3.12A 4.44A 5.5A 7.77A 8.88A 2.77A 5.68A
Open Circuit Voltage(Voc) 19.8V 19.8V 19.2V 19.8V 19.8V 19.8V 19.8V 21.12V 21.12V
Short Circuit Current(Isc) 0.6A 1.32A 3.42A 5.32A 6.05A 8.54A 9.76A 3A 6.24A
Module Efficiency(%) 19.80% 19.800% 19.80% 19.80% 19.80% 19.80% 19.80% 23.00% 23.00%
Tolerance Efficiency(%) ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3%

Different specifications and different power-folding bags can be customized according to requirements, and the optional range(5W-360W)

STC:     Light Intensity:1000W/M       Battery Temperature:25oC        Air quality=1.5

Structural properties

Material Mono-crystalline solar cell SUNPOWER solar cell
Dimension(mm) 440*190*3 440*320*3 1060*277*3 1000*500*3 1175*540*3 1070*796*3 985*980*3 535*545*3 1050*540*3
Weight 180g 320g 1100g 1800g 2250g 2950g 3350g 1300g 1950g
Surface panel transparent ETFE
Wire 0.5m double core new material 0.5m 2.52 photovoltaic line 0.9m  2.52 photovoltaic line
Connector DC terminal DC terminal MC4 MC4 MC4 MC4 MC4 MC4 MC4

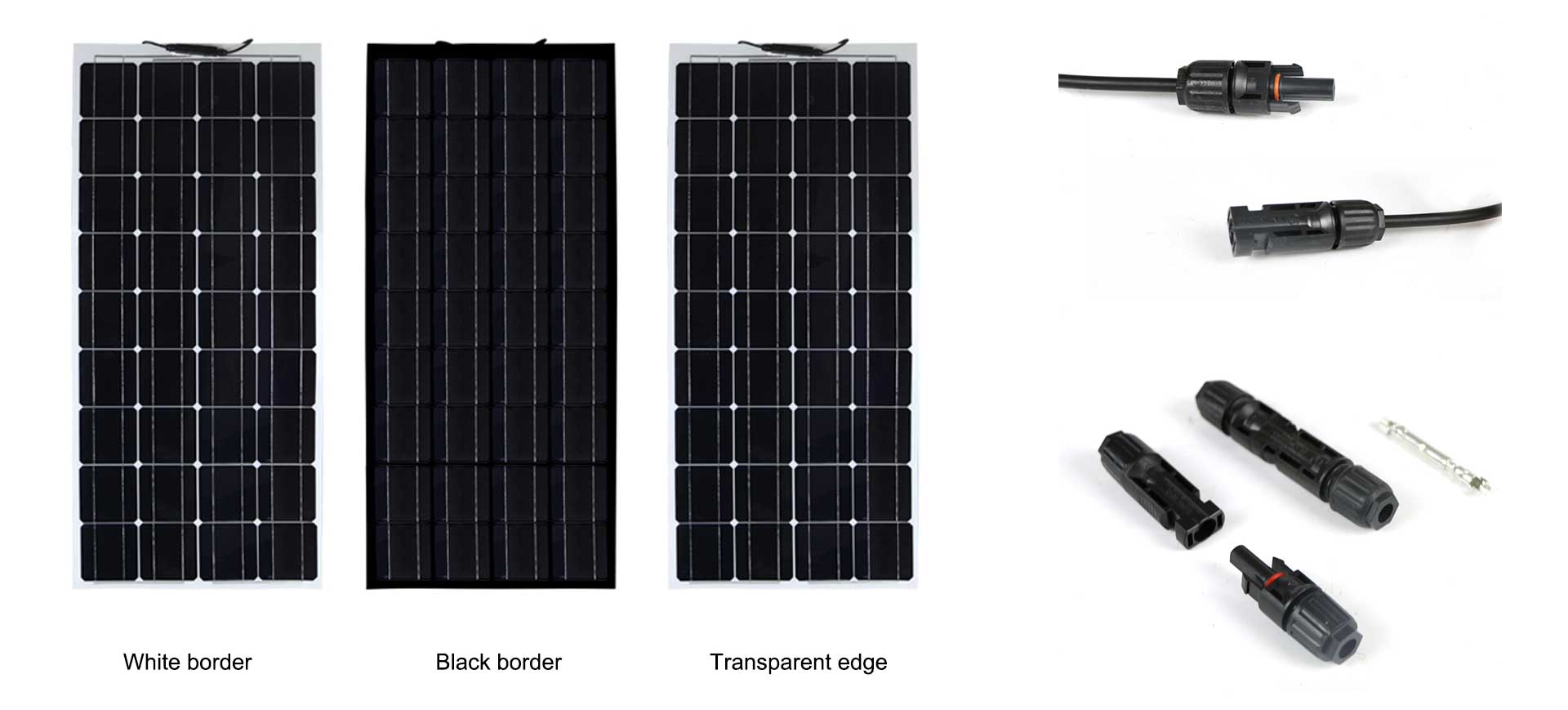

Semi-flexible solar panel3.jpg



More Details

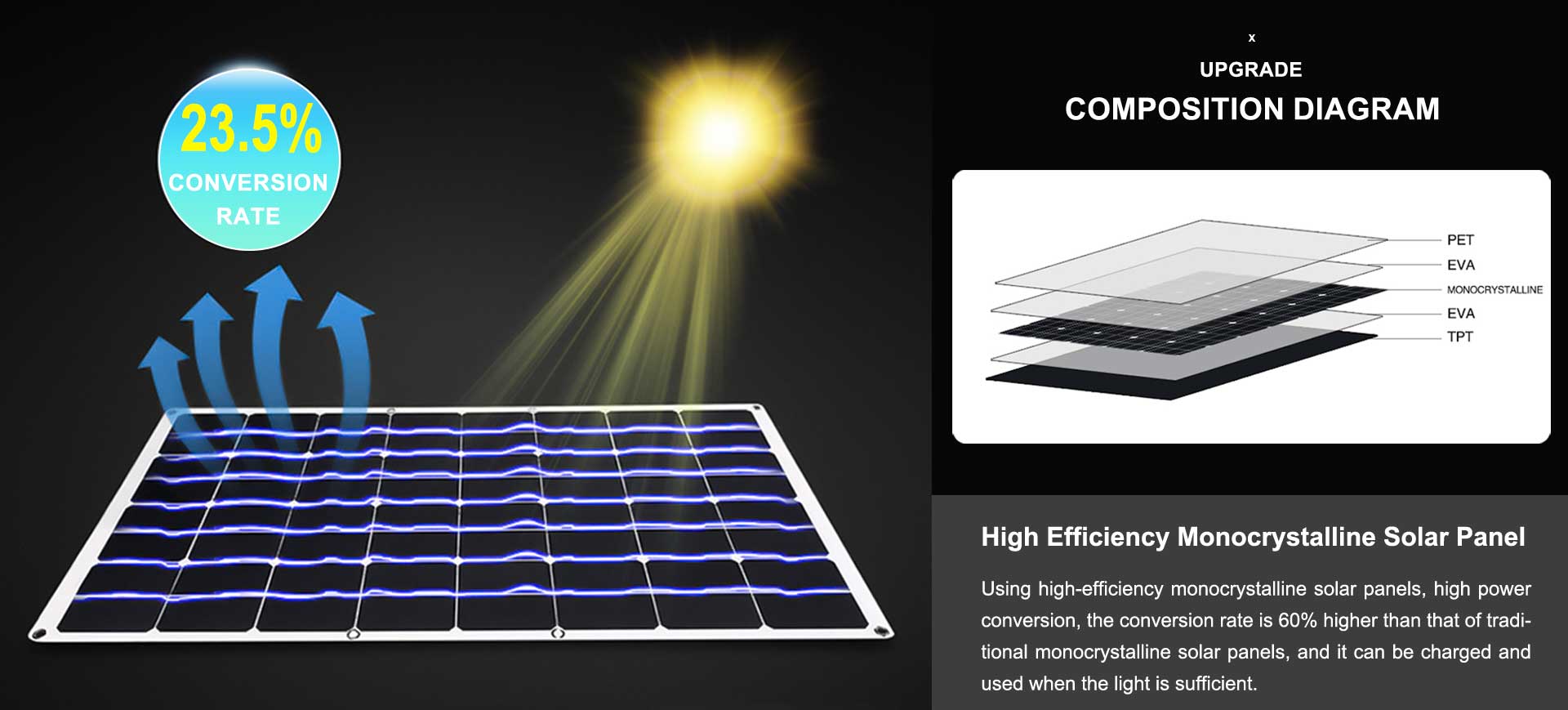

Semi-flexible solar panel.jpg



High performance: light transmittance up to 93%

Cell Efficiency: 22.3% (one of the highest)

Module Efficiency: 19.2% (one of the highest)

Maximum Power: 160W

Tolerance Wattage (e.g. +/- 3%): +/- 3%

Maximum System Voltage: 600V DC (UL)

Optimum Operating Voltage (Vmp): 18 V

Optimum Operating Current (Imp): 8.88 A

Open-Circuit Voltage (Voc): 19.8 V

Short-Circuit Current (Isc): 9.76 A

Power Tolerance: 0=+3W

Maximum Fuse Rating: 10 A

Fire Safety Class: Class A

Junction Box: IP 67 rated

Temperature Range: -40⁰F to 185⁰F

Bendable degree 30⁰ to 90⁰

Number of cells: 4 x 10(according to maximum power)

Temperature Coefficients ⁰C:

ISC(%): +2.6

Voc(%): -50.6

Prm(%): -.38

Im(%): +2.2

Vm(%): -60.8

Certifications: CE, ETL, TUV and RoHS

Dimensions: 53.1 X 21.25 X 0.12 inches

Weight: 3.96 lbs

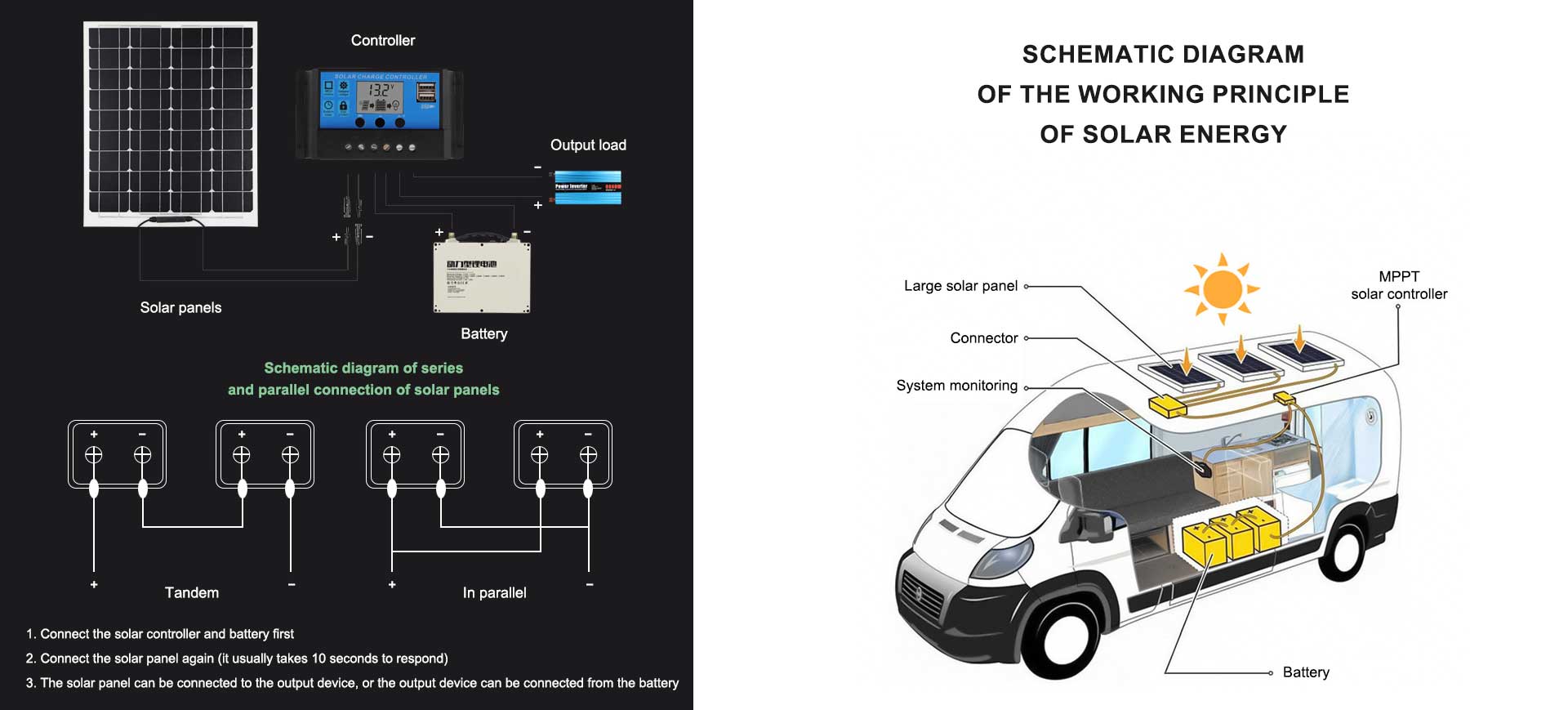

 How to use semi-flexible solar panel




Semi-flexible solar panel4.jpg



Features


High Power Output】 The 100W Semi-flexible  Monocrystalline Solar Panel can provide an average of 500 Watt-hours of electricity per day (depending on sun availability).

Easy to Transport, Carry and Install】 The solar panel suits most curved surfaces as it is bendable within 240 degrees. It weighs only 1/3 of the rigid panel and presents an all-black glare-free appearance.

Industry-leading Tech】 It is equipped with half-cut PERC cell technology that enhances solar light capture and electrical performance, therefore improving the output efficiency.

Ready for Installation】 The panel comes with pre-drilled mounting holes and 2.3 feet long solar connector cables for quick and easy installation.

Safety Protection】When there is no sun exposure, the diode prevents reverse current flow from the battery to the solar panels, to avoid current damage to your solar panels.

The solar connector cables are 2.3 feet long without worrying about length limitations.





Differences


The differences between Semi-flexible solar panel and Rigid solar module

Semi-flexible solar panel

✅Lighter weight and more flexible use

✅Bendable for a wider range of applications

✅Easy to Transport, Carry and Install

Rigid solar module

✅Durable and long service life

✅More suitable for large-scale power stations or places without moving solar panels

✅Cheap price

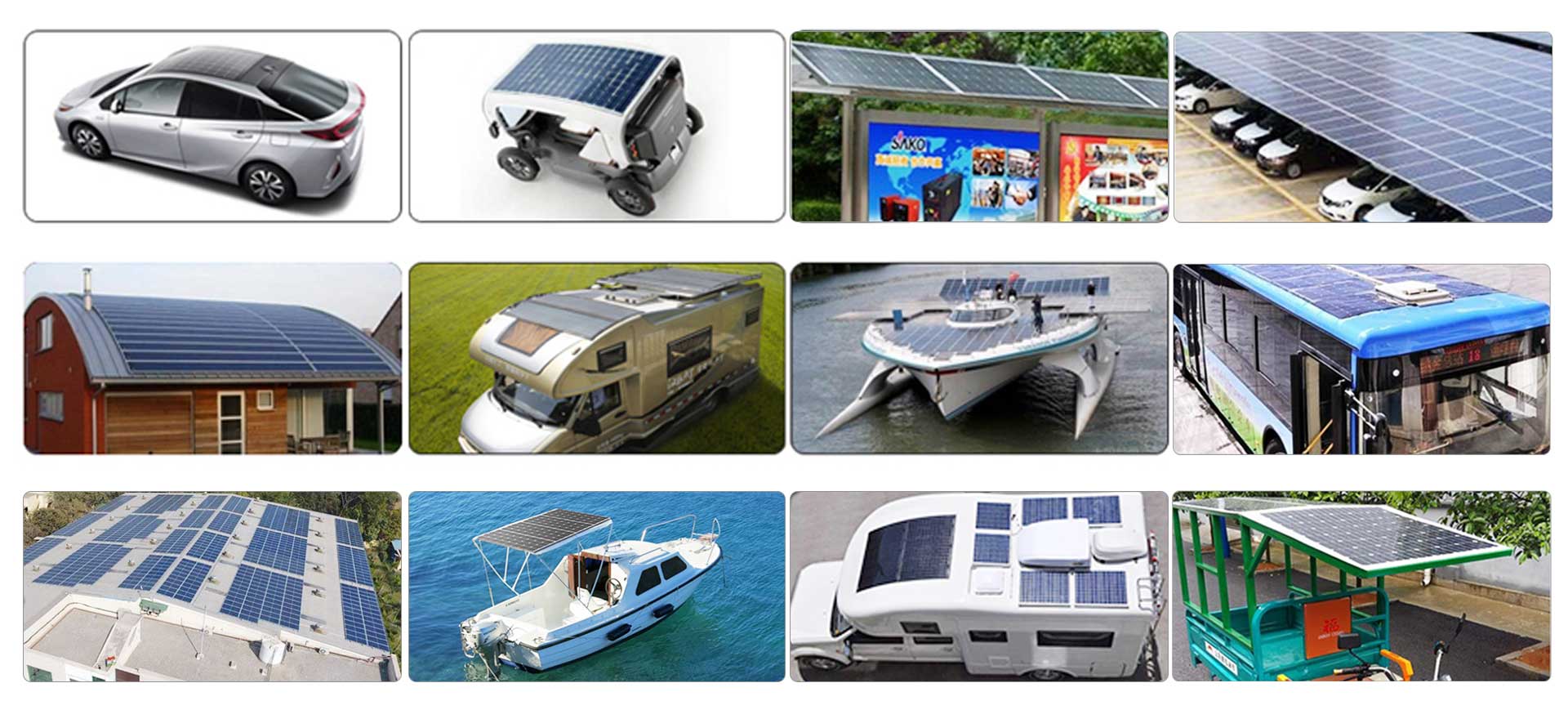

Application


Semi-flexible solar panel5.jpg
