product description

The Main Parameters

Number of folds	2*5W	3*7W	4*7W	2*20W	2*30W	2*50W	260W/340W	3*50W	4*50W
Power (Pmax)	10W	21W	28W	40W	60W	100W	120W	150W	200W
Working Voltage(Vmp)	5V	5V	5V	18V	18V	18V	18V	18V	18V
Working Current(IMP)	2A	4.2A	5.6A	2.22A	3.33A	5.55A	6.66A	8.33A	11.11A
Open Circuit Voltage(Voc)	5.5V	5.5V	5.5V	19.6V	19.6V	19.6V	19.6V	19.6V	19.6V
Short Circuit Current(Isc)	2.2A	4.62A	6.16A	2.42A	3.66A	6.1A	7.32A	9.16A	12.22A
Module Efficiency(%)	19.8%	19.8%	19.8%	19.8%	19.8%	19.8%	19.8%	19.8%	19.8%
Tolerance Efficiency（%)	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%

Different specifications and different power-folding bags can be customized according to requirements, and the optional range(10W-400W)

STC: Light Intensity：1000W/M Battery Temperature：25oC Air quality=1.5

Structural properties

Material	Mono-crystalline solar cell
Dimension(mm)	3952452.5	6352952.5	8502952.5	9203914.5	7715694.5	10856314.5	12206104.5	16406304.5	18806904.5
Weight	330g	500g	660g	2240g	2750g	4200g	4800g	6100g	7800g
Surface panel	transparent ETFE
Connector	Voltage stabilizer box	Voltage stabilizer box	Voltage stabilizer box	MC4 compatible	MC4 compatible	MC4 compatible	MC4 compatible	MC4 compatible	MC4 compatible

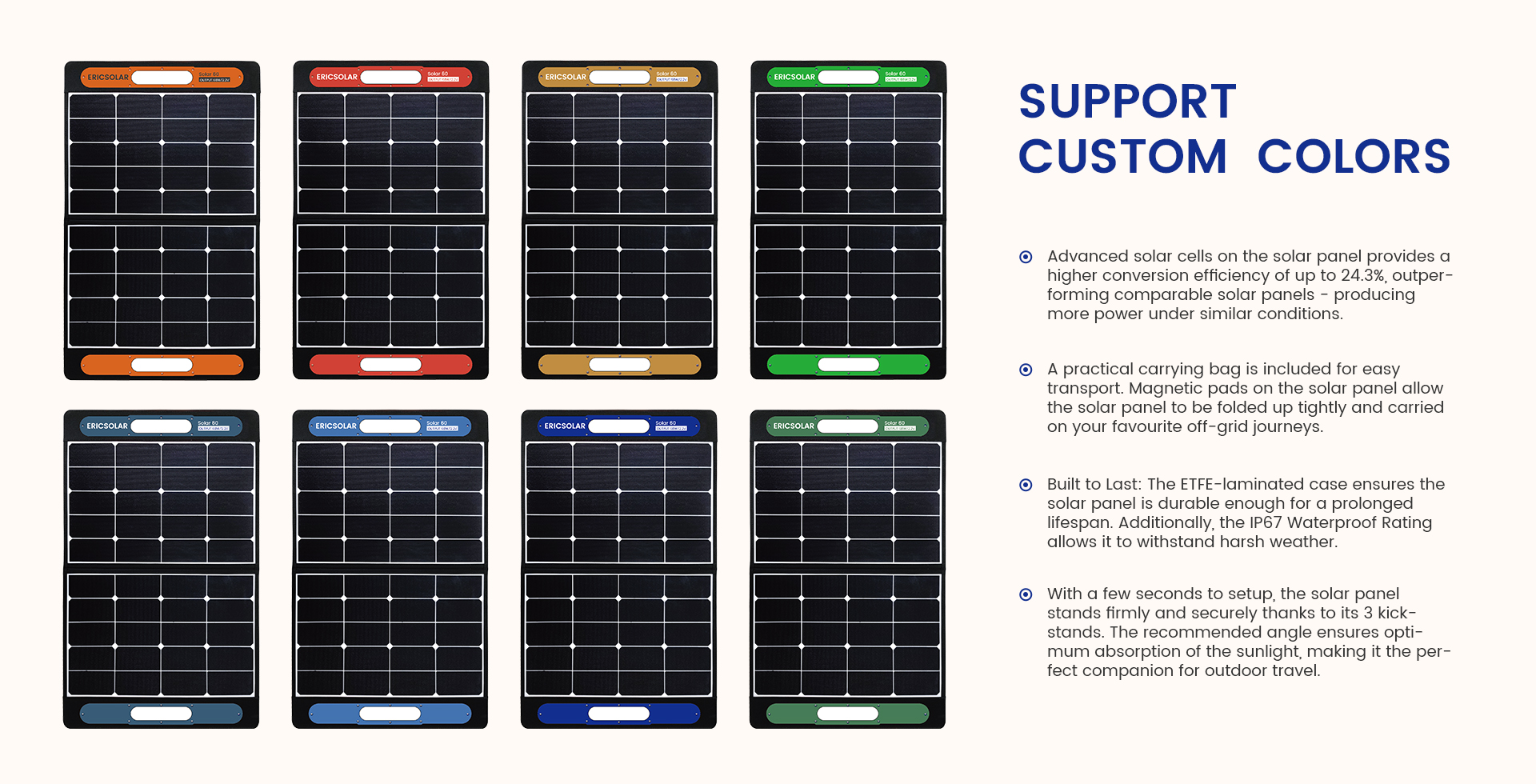

Colors design

Features

✔Lightweight

✔HIGH CONVERSION EFFICIENCY

✔Monocrystalline silicon solar cells

✔Multi-layered cell technology makes them highest quality

✔High conversion efficiency up to 23%

✔DURABLE SOLAR PANEL

✔ high output

✔ SunPower® solar cell technology

✔ foldable

✔Rubber handle make it easy to carry

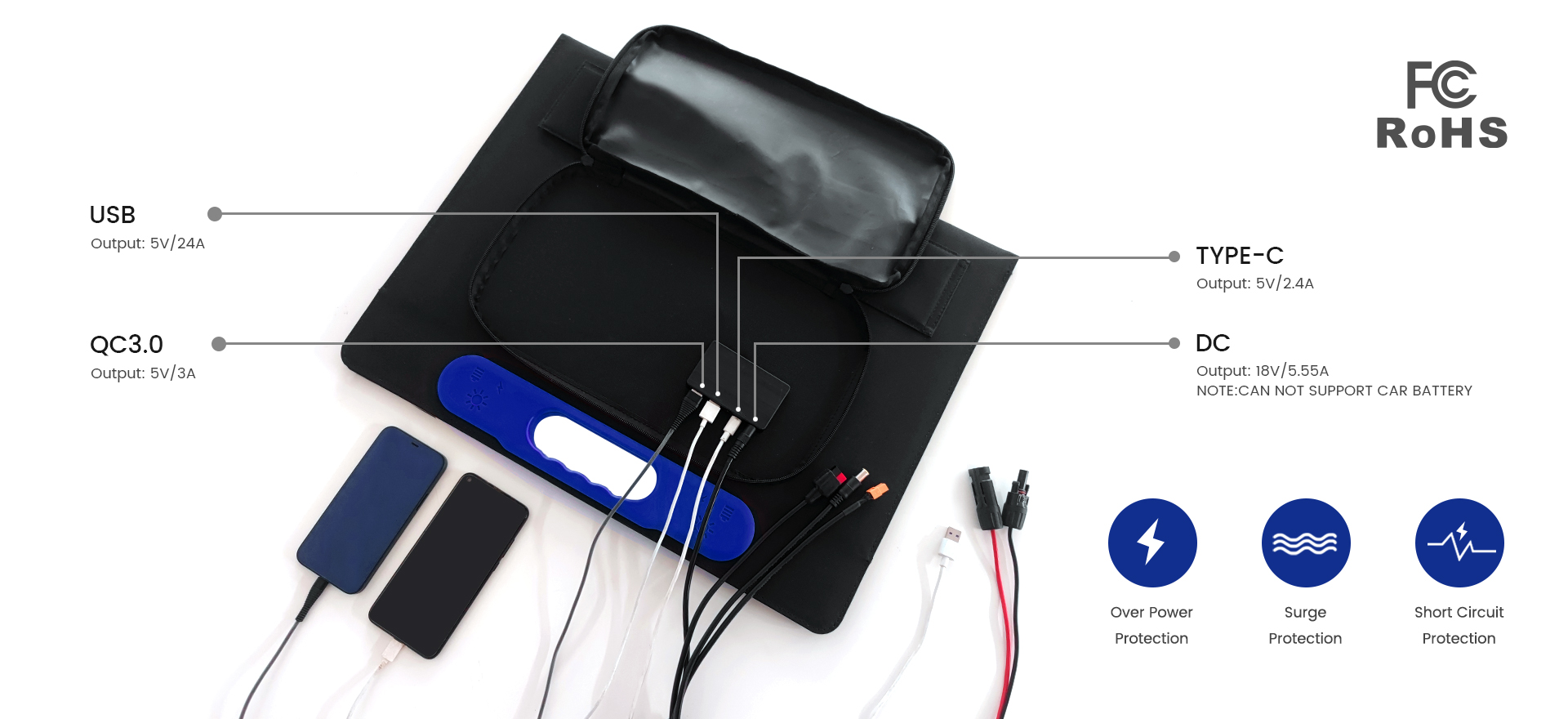

✔ Including USB and USB Type-C (45W) outputs

✔ universal 2 pin GX16 DC-connection

✔ adjustable standard system for optimum sun positioning

✔ETFE-laminated solar cells offer weather-resistant outdoor durability and longer life

✔Store and protect the cable and ports in a storage bag

✔Shockproof & dustproof

✔ connect with other solar panels for higher output

✔SUPERIOR PORTABILITY

✔Foldable design for easy transport

✔Compact and lightweight

✔Adjustable kickstands for easy installation or angle adjustment

More details

sunpower solar panel02.jpg

◆Maximum Power: 200W(can be designed)

◆Tolerance Wattage:(e.g. +/- 3%): +/- 3W

◆Fire Safety Class: Class A

◆Maximum System Voltage: 600V DC (UL)

◆Max Power Current (Imp): 11.11 A

◆High performance: light transmittance up to 93%

◆Cell Efficiency: 23% (one of the highest)

◆Module Efficiency: 19.8% (one of the highest)

◆Maximum Fuse Rating: 10 A

◆Short-Circuit Current (Isc): 12.22 A

◆Temperature Range: -40⁰F to 185⁰F

◆Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers

◆Max Power Voltage (Vmp): 18 V

◆Open-Circuit Voltage (Voc): 19.6 V

◆Temperature Coefficients ⁰C:

◆ISC(%): +2.6

◆Im(%): +2.2

◆Vm(%): -60.8

◆Voc(%): -50.6

◆Prm(%): -.38

◆Certifications: CE, ETL,and RoHS

◆Dimensions: Expanded 33 X 15.8 X 0.20 inches

Folded 11.22 x 15.85 x .6 inches(According to power）

◆Weight: 2.85 lbs(According to dimensions）

◆Easy side slide buckles

◆Water resistant

◆Durable rubber handle

Notes

Please Mind These While Solar Recharging:

1. Recharging time varies from different location, temperature, weather etc. The actual time may be different.

2. During recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.

Solar Recharging steps

1.Find the DC interface on the back of the Solar panel;

2.Connect the DC interface of the Solar panel with the DC input of solar generator;

Advantages

【Universal use】

Thanks to the universal 2 pin GX16 connection, the solar panel can be connected to various professional battery systems. Almost all 14-18V batteries and batteries can be connected to the solar panel via the additionally available adapter plugs. The solar panel can also be directly connected to the battery system and the 500W portable power station via a DC adapter plug.

【Lightweight and foldable】

The panel contains a charging cable of 3 meters long with a universal 2 pin GX16 connection. The charging cable is located in the storage compartment at the back of the panel. The storage compartment can be closed with a zipper and contains enough space to store additional cables or accessories. The manual for the solar panel is printed in the storage compartment. The solar panel contains metal rings at the corner points, making it easy to hang or attach it to other objects. The lightweight solar panel is a mobile energy supply that is very useful for hiking trips, cycling, camping, sailing and expeditions. The solar panel is also ideal for temporary mounting on a motor home, caravan, motor boat or sailing yacht.

【Instant Setup】

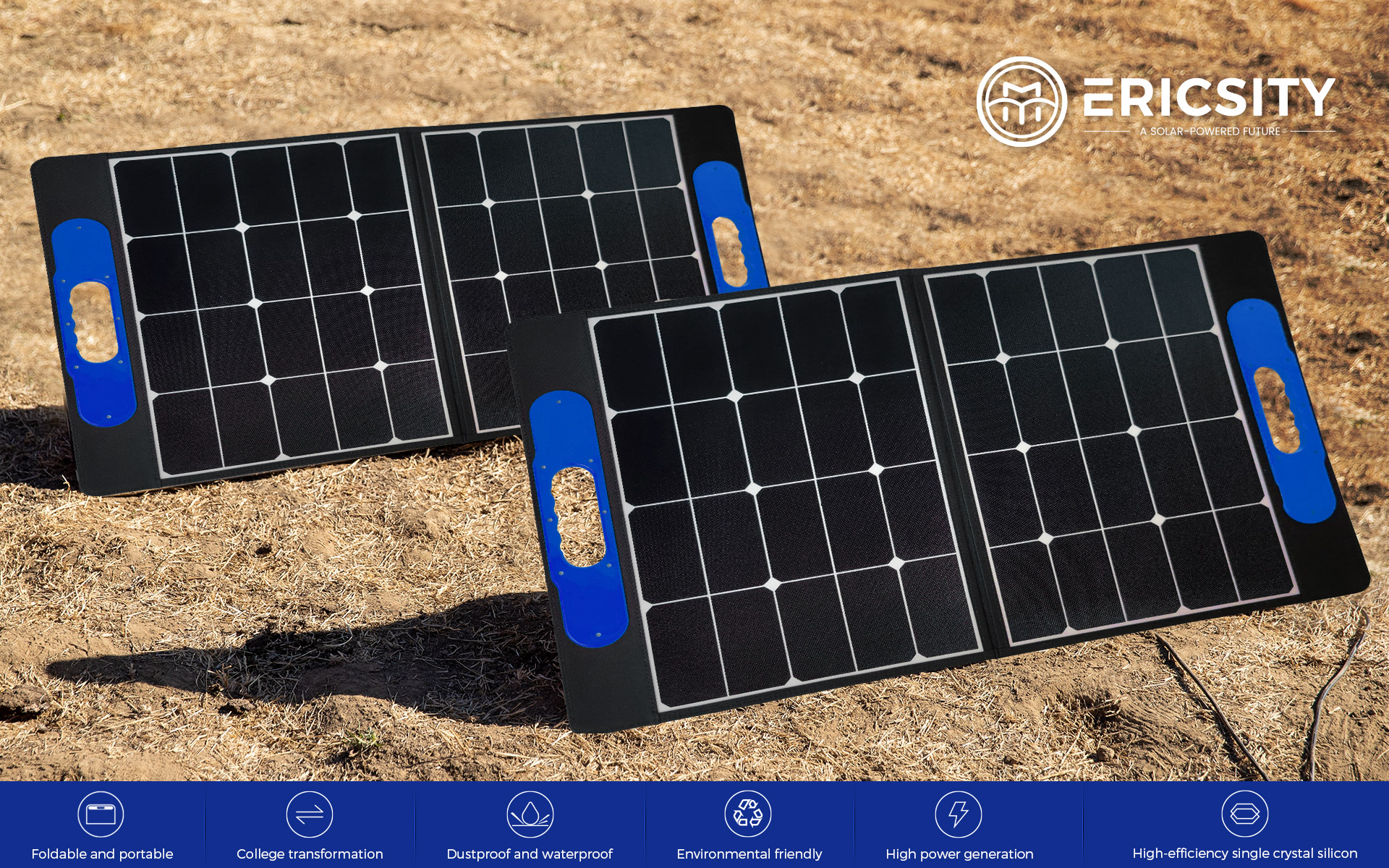

With a few seconds to setup, the solar panel stands firmly and securely thanks to its 3 kickstands. The recommended angle ensures optimum absorption of the sunlight, making it the perfect companion for outdoor travel.

【Excellent Conversion Efficiency】

Advanced solar cells on the solar panel provides a higher conversion efficiency of up to 23%, outperforming comparable solar panels - producing more power under similar conditions.

【Convenient Carrying】

A practical carrying bag is included for easy transport. Magnetic pads on the solar panel allow the solar panel to be folded up tightly and carried on your favourite off-grid journeys.

Built to Last: The ETFE-laminated case ensures the solar panel is durable enough for a prolonged lifespan. Additionally, the IP67 Waterproof Rating allows it to withstand harsh weather.
